Metal 1/4 filter

Metal 1/4 filter

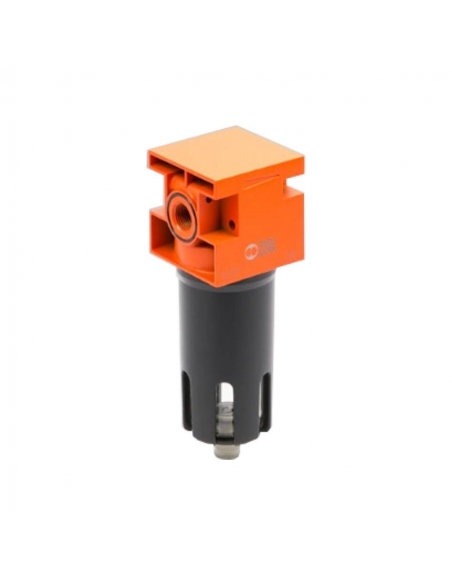

Filter 1/2 metallic 20 microns semi-automatic purge New Deal - Metal Work

€41.41 Tax included

€34.22 tax excl.

Filter 1/2 metallic with a filtration degree of 20μm and semi-automatic discharge, for retention of solid or liquid impurities from the air compressor. These filter cups are made of metal with excellent resistance to corrosion. European manufacturing.

Series: New Deal
Reference: 1421006
metal work logo

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!

Metal filter cup, 1/2, with a filtration degree of 20μm to retain solid or liquid impurities from the air compressor. The type of purge is semi-automatic, it discharges when the pressure in the filter approaches zero.

Characteristic:

Manufacturer: Metal Work
Manufacturer reference: 1421006 FIL 1/2 20 RMSA
Size: 1/2"
RMS: Purge manual discharge of condensation and automatic discharge when the pressure is removed.
Maximum inlet pressure: 18 bar .
Flow: 4100 Nl/min.
Filtration degree: 20 microns.
Metal glass with external viewer.
max temperature at 1MPa; bar ; 145psi: 50ºC
Bowl capacity: 45 cm3
Condensate drain: RMSA - Manual condensate drain and automatic discharge when pressure is released.

For other sizes and models consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.

Newdeal group file

Download (3.12MB)
