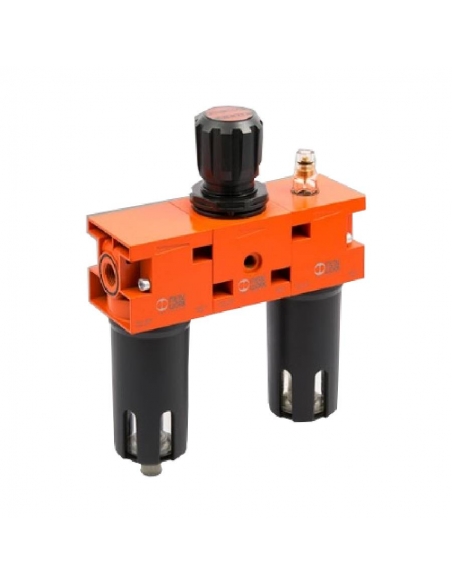

Pneumatic filter group 1/2 regulation 0-12 bar automatic drain New Deal series - Metal Work

€196.53 Tax included

€162.42 tax excl.

1/2 filter group, 1/2 maintenance unit for pneumatic applications, automatic drain, in 3 modules (F+R+L) and regulation range 0-12 kg/cm2. Filtering unit with 20 μm filter. These groups are made of aluminum and plastic tanks with metal protection. European made material.

Series: New Deal
Reference: 1424058

FRL New Deal scheme

metal work logo

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!

1/2 filter group, 1/2 maintenance unit for pneumatic applications, automatic drain, in 3 modules (F+R+L). Among the main characteristics of this filter group, it has a great flow performance compared to its size and reduced weight, satisfying the current demand for miniaturization and performance. Made of aluminum and with plastic tanks with metal protection.

The type of purge is manual and automatic when the pressure is removed. The filter group has a 20 μm filter element.

Note: the pressure gauge is not included in the supply, it must be ordered separately.

Characteristics of the filter group:

Manufacturer: Metal Work
Reference: FRL 1/2 20 012 RA
Code: 1424058
Thread size: 1/2"
Regulation field: 0 to 12 bar .
Maximum inlet pressure: 18 bar .
Semi-automatic and automatic condensate drain.
Metal cup with external viewer
Filtration degree: 20μm.
Condensation drain type: RA
Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 0.5 bar (0.05 MPa; 7 psi) ( Nl/min): 1300
Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 1 bar (0.1 MPa; 14 psi) ( Nl/min): 2000
Wall fixing screws: M4 x 55.
Working temperature: -10 to +50ºC.

dimensions F+R+L New deal

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.

Newdeal group file

Download (3.12MB)
