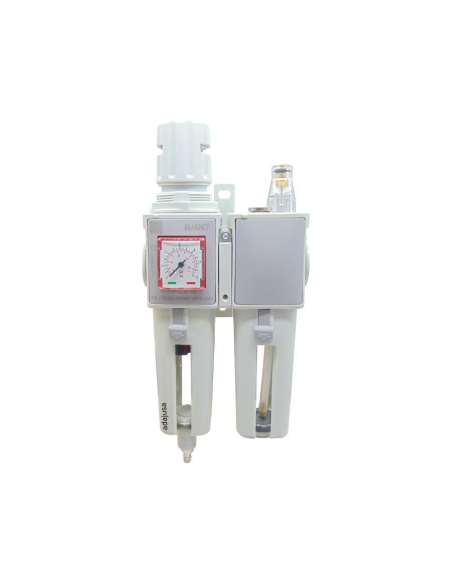

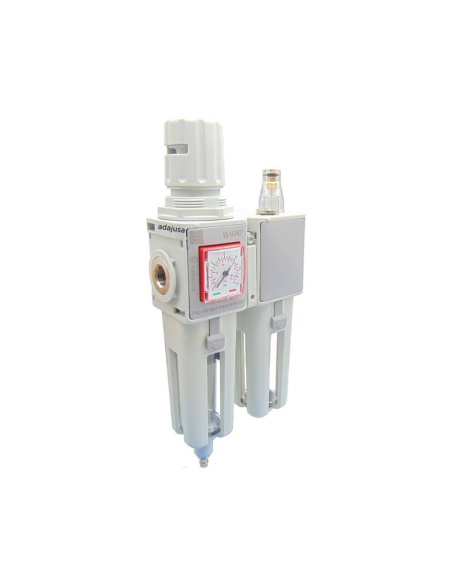

Pneumatic filtering group 1/2 regulation 0-12 bar semi-automatic purge size 2 FRL EVO series - Aignep

1/2 filtering unit, 1/2 maintenance unit for pneumatic applications, semi-automatic drain, compact size (T2), in 2 modules (FR+L), European manufacture. Fastening by means of lateral holes. Knob with padlock.

The main features of this filtering group include simplified modularity, precise and reliable regulation, highly optimized flow rate, reduced weight and coalescence filtration element. These filtering groups are manufactured silicone-free.

Compact pressure gauge inserted on the regulator body. With its reduced size and weight, it meets today's demand for miniaturization and performance. Manufactured in technopolymer and nickel-plated brass with excellent corrosion resistance. The type of purge is semi-automatic, discharging when the pressure in the filter approaches zero.

The main application of this series of filtering groups is pneumatic automation, compressed air circuits and installations and compressors.

Characteristics of the filtering group:

• Manufacturer: Aignep
• Part number: Y100205241100
• Number of elements: 2 (FR+L)
• Fluid: Compressed air
• Thread size: 1/2
• Filtration degree: 20 μm (*)
• Condensation drain: manual-semi-automatic
• External sight glass
• Built-in overpressure drain valve
• Maximum pressure: 15 bar
• Regulation from 0-12 bar (**)
• Flow rate at 6 bar (ΔP1bar): 2700 Nl/min
• Pressure gauge: Included
• Vessel capacity: 37 cm3
• Mounting screws: M5x15
• Mounting form: Vertical
• Working temperature: -10ºC to +50ºC
• Recommended oil for the lubricating cup: ISO VG 22A CLASS ISO 3448 STANDARD
• Reference standard: PED 2014/68/EU
• Mounting accessories: not included

• 0 a 2 bar
• 0 a 4 bar

Material for professional use, to be installed in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
