Pneumatic filtering and purification unit 1/8 filtering grade 5 automatic drain Syntesi series - Metal Work

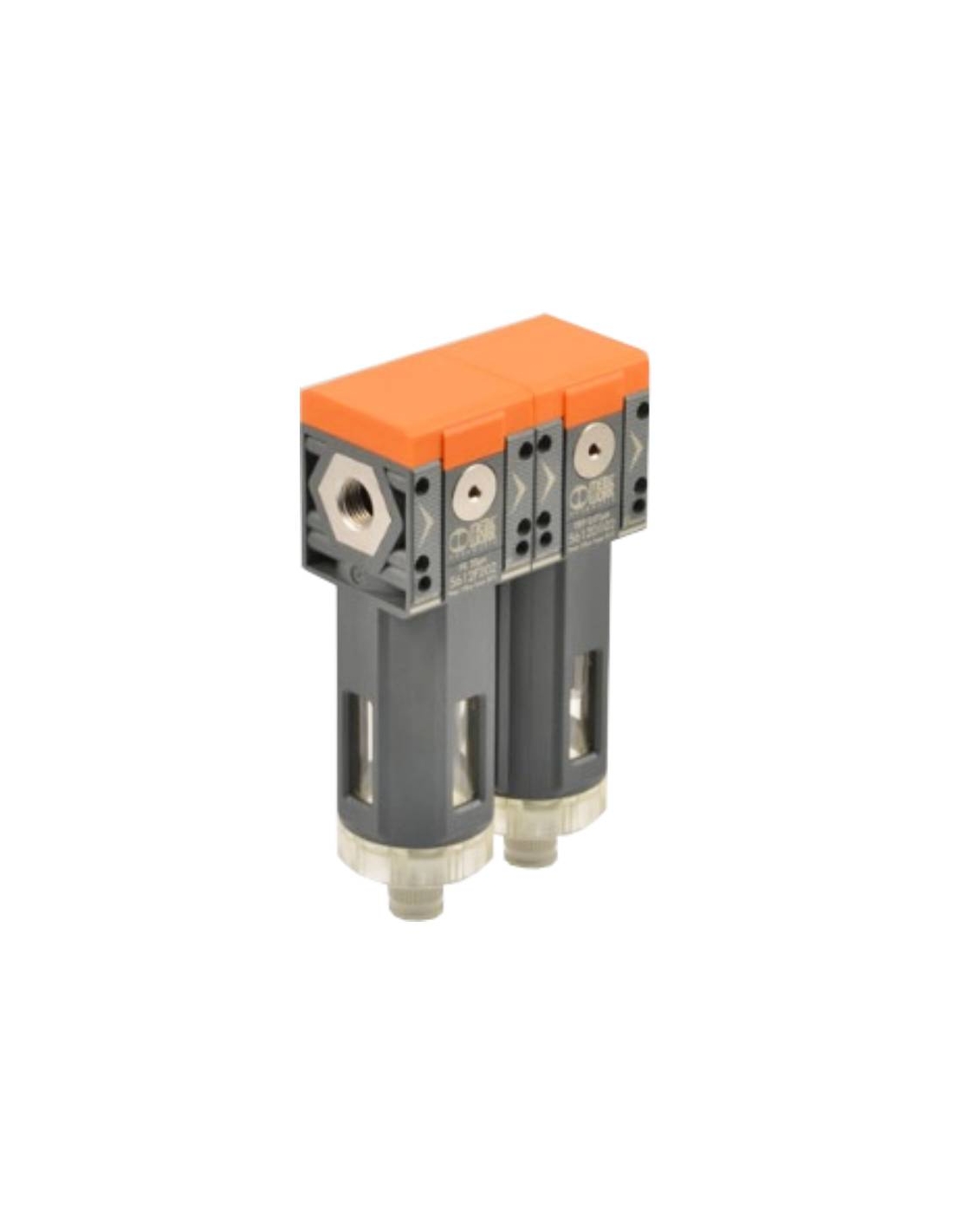

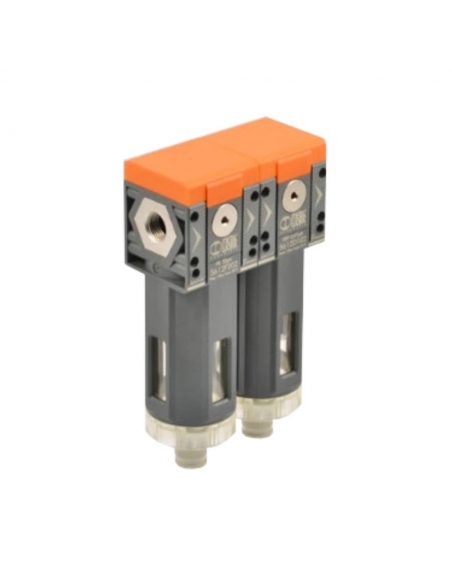

Pneumatic filtration and purifier unit with 1/8 thread Syntesi series size SY1, with automatic drain. Made of high-resistance technopolymer and threads on metal support

Among the main characteristics of this filter group, it has a great flow performance compared to its size and reduced weight, satisfying the current demand for miniaturization and performance. The filter discharge system is through automatic condensation purge, independent of pressure and flow.

Characteristics of the filter group:

• Manufacturer: Metal Work
• Manufacturer reference : FIL+DEP SY1 1/8 05 RA
• Code: 5611F40D101
• Thread size: 1/8"
• Filter condensate discharge: RA
• Scrubber Condensation Discharge: RMSA
• Filtration filtration degree ( μm) : 5 μm
• Maximum inlet pressure (MPa / bar / psi): 1.5 / 15 / 217
• Suggested flow at 6.3 bar (0.63 MPa; 91 psi) Nl/min: 550
• max temperature at 1 MPa; 10 bar; 145psi ( °C): 50
• Wall fixing screws: number 2 M4 screws
• Fluid: compressed air or other inert gases
• Filter / scrubber tank capacity: 30/15 cm3
• Mounting position: upright
• Coupling for additional air intakes: 1/8", front and rear
• Flow rate of additional air intakes at 6.3 bar (Nl/min): 500

Dimensions:

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
