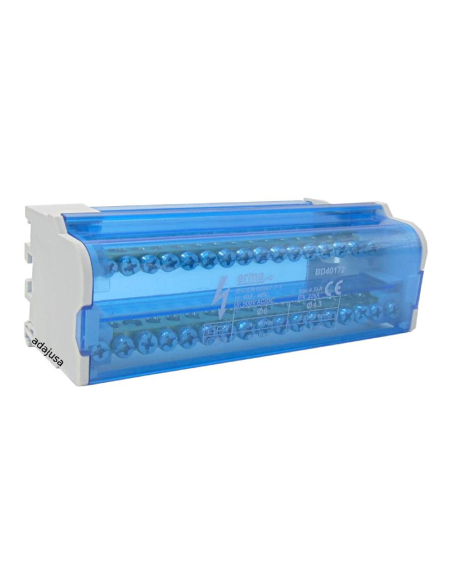

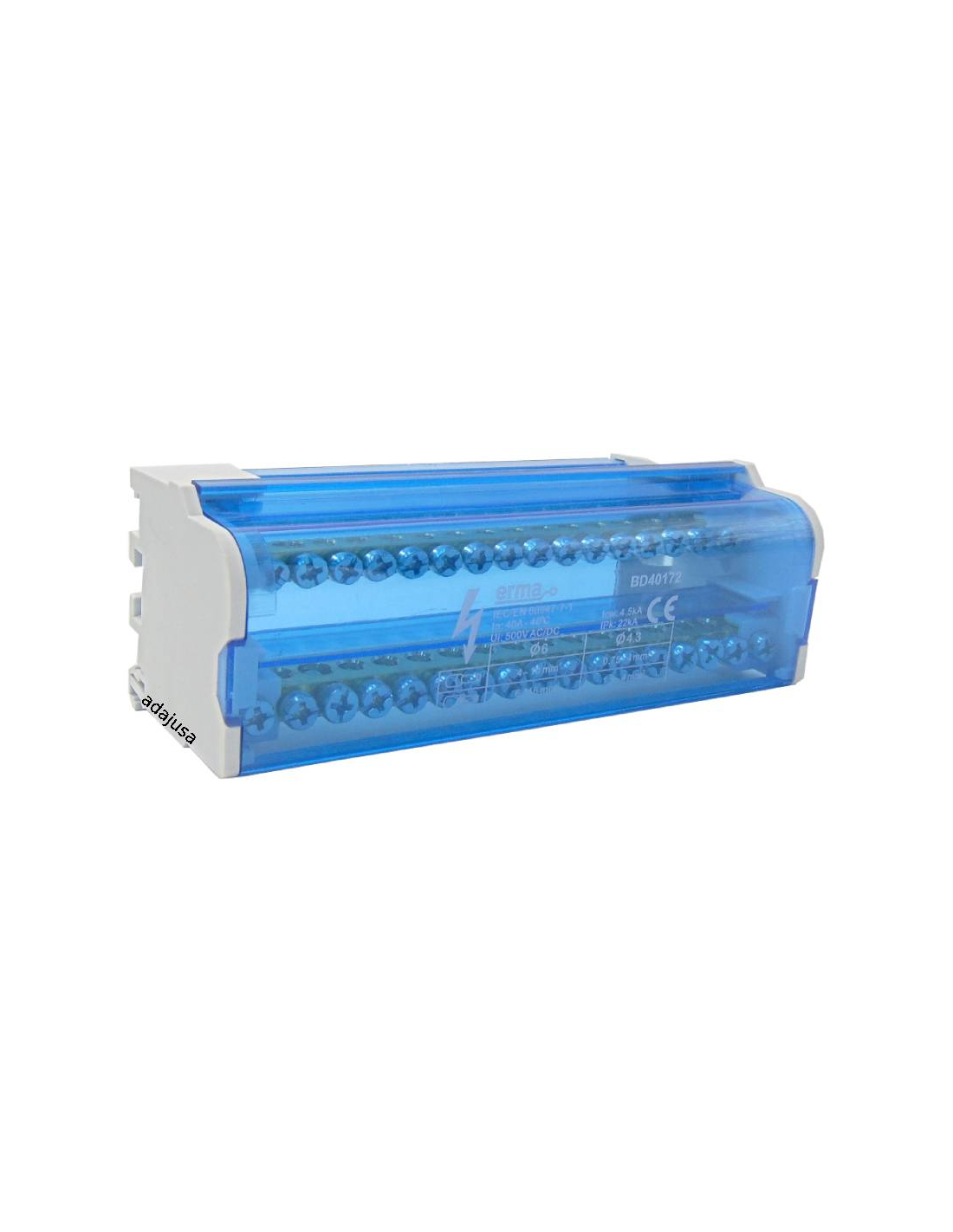

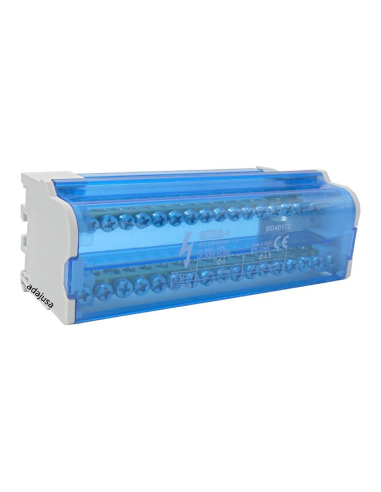

Bipolar connection distributor 15 outlets 40A

€12.35 Tax included

10.21 tax excl.

BD40172

Two-pole (1 pole + neutral) electrical distribution board with 15 outputs and 2 inputs, suitable for currents up to 40A, terminals made of brass with steel screws on polyamide support and protected with polycarbonate cover. Screw mounting on panel or DIN rail. Compact size.

Part number: BD40172

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Description
Frequently questions

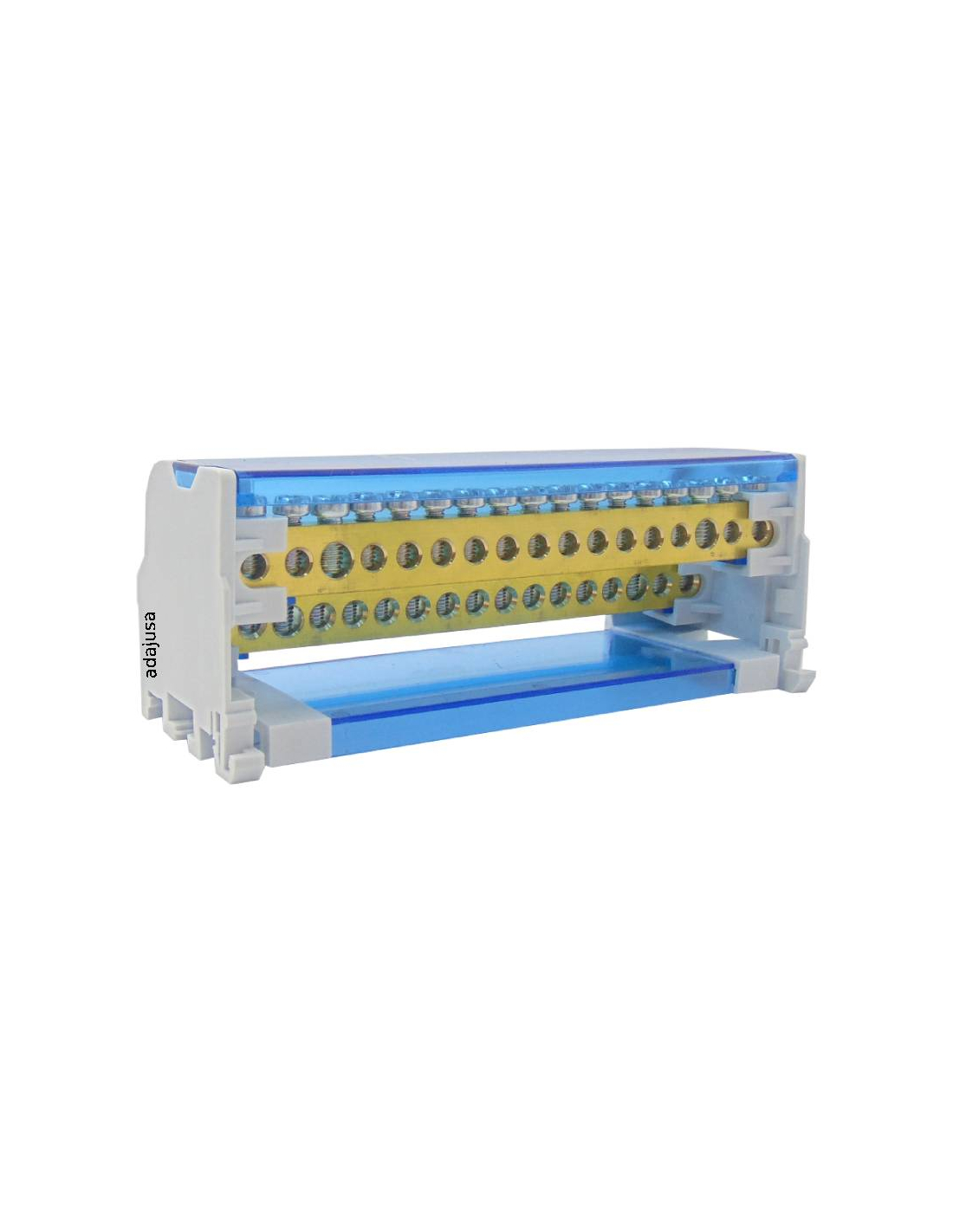

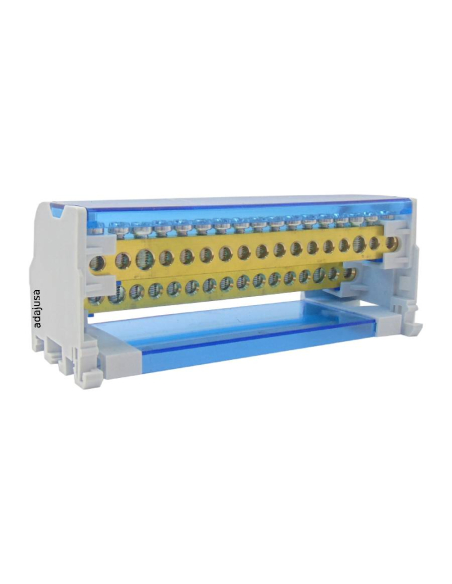

Bipolar electrical connection splitter with 15 outputs and 2 inputs, for use in electrical distribution cabinets to facilitate wiring and improve the distribution of the electrical load and wiring.

It has 2 brass distribution bars with steel screws, distributed in 2 heights and several orientations to facilitate the connection. It allows the possibility of incorporating a neutral extension bar, which is simply fixed to the distributor with a screwdriver.

Easy and fast mounting on DIN rail or screwed. The distributor is protected with a transparent polycarbonate cover.

The connection bar has:

2 Ø6mm inputs for 4mm² to 10mm² cables
15 Ø4.3mm outlets for cables 0.75mm² to 4mm²

Technical characteristics:

Manufacturer/Supplier: Gaestopas
Manufacturer's reference: BD40172
Type: bipolar (1P+N)
Rated voltage: 500Vac/dc
Rated current: 40A
Icw: 4,5kA
Ipk: 22kA
Number of holes per busbar: 17
Holes per pole (holes x Ø mm): 2x6 / 15x4,3
Dimensions: 50x130x50mm
Halogen free
UL94-V0 flammability rating
Certification: CE, ROHS
Standard: IEC 60947-7-1

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

2-pole connection dispatcher

2-pole connection dispatcher 2

Electrical connection dealers

Connection dispatcher 2 poles isolated 7 outputs 100a

€5.18 (€4.28 tax excl.)

Electric connection dispatcher of 2 poles of 7 outputs, suitable for intensities up to 100a at 40ºC, brass distribution bars with steel screws fixed in polyamide support and protected with polycarbonate cover. Fixing on panel or din-rail. Reference: CSB 207Representative image for illustrative purposes, the article supplied will correspond to the...

View

90º monoconnection connector | Adajusa

90º monoconnection connector | Adajusa 2

Combs for electrical connection

Monoconnection connector for cable 16mm2 - 90º

€1.04 (€0.86 tax excl.)

Conector monoconexión con ángulo de entrada del cable 90º. Cable de sección máxima 16mm2, corriente nominal 63A . Referencia: BK/16

Box pre-filled with gel for BOXW3 connection terminals | ADAJUSA | price

Box pre-filled with gel for BOXW3 connection terminals | ADAJUSA | price 2

Electrical connection dealers

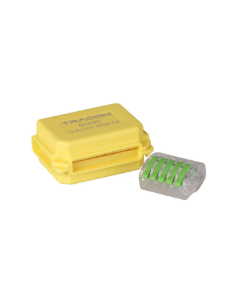

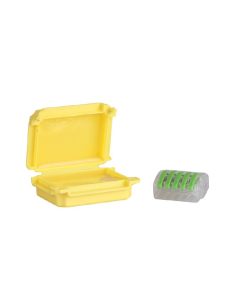

Box waterproof with gel for connection terminals 53x39x24mm

€6.38 (€5.27 tax excl.)

Box impregnated with gel for the housing of connection terminals. It allows a quick and perfect isolation of the terminals housed inside providing a degree of protection IP X8. Box dimensions 53 x 39 x 24mm. Reference: BOXW3 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

Double quick connection terminal 6 poles 32A OVOFT66 | ADAJUSA | price

Electrical connection dealers

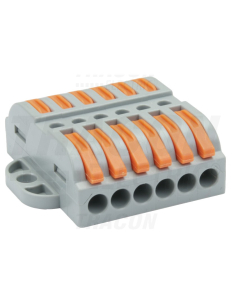

Double quick connection terminal 6-pole 32A

€2.02 (€1.67 tax excl.)

Double 6-pole quick connection terminal 32A, 400Vac for conductors from 0.5 to 4mm2 . Screwless quick connection ensures a simple and safe electrical connection. Part number: OVOFT66 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

Branch terminal 1 pole 2x2.5-35mm2 Gray | ADAJUSA | price

Bypass terminals

Branch terminal 1 pole 2x2.5-35mm Gray

€2.02 (€1.67 tax excl.)

1-pole branch terminal for DIN rail mounting. Valid for connecting copper conductors from 2.5 to 35 mm 2 and aluminum conductors from 2.5 to 35 mm 2 . Gray. Reference: FLEAL-35/1Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Neutral connection delivery man 7 outlets with cover

Electrical connection dealers

Neutral connection delivery man 7 outlets with cover

€3.52 (€2.91 tax excl.)

Electric connection delivery machine for distribution of neutral conductors, 7 holes with transparent polycarbonate lid, capable of supporting up to 50A, brass bar with steel screws and blue polyamide support. Fixation on panel or DIN rail. Manufacturer's Reference: 507N. Representative image for illustrative purposes, the item supplied will...

Four-pole connection distributor 13 outputs 80A Adajusa

Four-pole connection distributor 13 outputs 80A Adajusa 2

Electrical connection dealers

Four-pole distribution switch 8 outlets 80A

€14.00 (€11.57 tax excl.)

Four-pole (3 poles + neutral) electrical distribution board with 8 outputs and 5 inputs, suitable for currents up to 80A, terminals made of brass with steel screws on polyamide support and protected with polycarbonate cover. Screw mounting on panel or DIN rail. Compact size. Part number: BD80134 Representative image for illustrative purposes, the item...

Quick connection terminal 3 poles 32A | Adajusa

Quick connection terminal 3 poles 32A | Adajusa 2

Electrical connection dealers

Quick connection terminal 3 poles 32A

€0.33 (€0.27 tax excl.)

3-pole quick connection terminal 32A, 400Vac for conductors from 0.5 to 4mm2. Screwless quick connection that guarantees a simple and safe electrical connection. Part number: OVO2,5-3 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 pole derivation terminal 6x2.5-50mm2 green | ADAJUSA

Bypass terminals

Bypass terminal 1-pole 6x2.5-50mm² Green/Yellow

€9.22 (€7.62 tax excl.)

1-pole shunt terminal for DIN rail mounting. Suitable for connection of copper conductors from 2.5 to 50 mm2 and aluminum conductors from 6 to 50 mm2. Color green/yellow. Reference: FLEAL-50/3ZSRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Derivation terminal 1 pole 6x35-150mm2 Blue | ADAJUSA | price

Bypass terminals

Derivation terminal 1 pole 6x35-150mm² Blue

€20.24 (€16.73 tax excl.)

1-pole shunt terminal for DIN rail mounting. Valid for connection of copper and aluminum conductors. Part No.: FLEAL-150/3KRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Branch terminal 1 pole 4x2.5-35mm2 Gray | ADAJUSA | price

Bypass terminals

Branch terminal 1 pole 4x2.5-35mm Gray

€3.86 (€3.19 tax excl.)

1-pole branch terminal for DIN rail mounting. Valid for connecting copper conductors from 2.5 to 35 mm 2 and aluminum conductors from 2.5 to 35 mm 2 . Gray. Reference: FLEAL-35/2Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Branch terminal 1 pole 4x2.5-35mm2 Blue | ADAJUSA | price

Bypass terminals

Branch terminal 1 pole 4x2.5-35mm Blue

€3.86 (€3.19 tax excl.)

1-pole branch terminal for DIN rail mounting. Valid for connecting copper conductors from 2.5 to 35 mm 2 and aluminum conductors from 2.5 to 35 mm 2 . Color blue. Reference: FLEAL-35/2KRepresentative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

2-pole connection dispatcher

2-pole connection dispatcher 2

Electrical connection dealers

Connection dispatcher 2 poles isolated 15 outputs 125a

€8.40 (€6.94 tax excl.)

Electric connection dispatcher of 2 poles of 15 outputs, suitable for intensities up to 125a at 40ºC, brass distribution bars with steel screws fixed in polyamide support and protected with polycarbonate cover. Fixing on panel or din-rail. Reference: CSB 215Representative image for illustrative purposes, the article supplied will correspond to the...

5-pole quick-connect terminal 32A | Adajusa

5-pole quick-connect terminal 32A | Adajusa 2

Electrical connection dealers

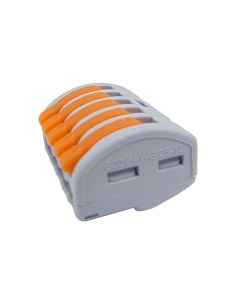

5-pole 32A quick connection terminal
