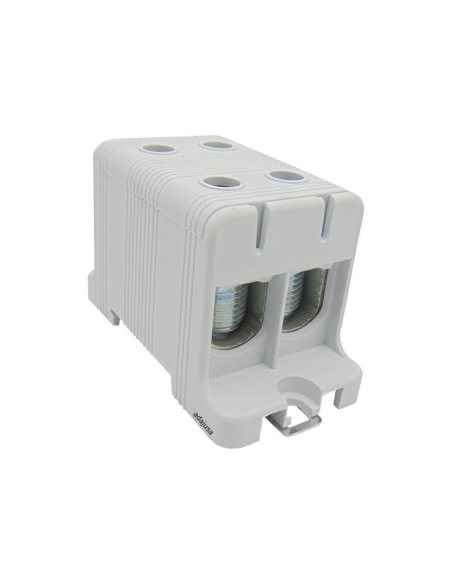

Derivation terminal 1 pole 4x16-95mm² Gray

€10.72 Tax included

8.86 tax excl.

FLEAL-95/2

1-pole shunt terminal. Valid for connection of copper and aluminum conductors.

Reference: FLEAL-95/2

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 question about the product

1-pole shunt terminal. Valid for connection of both copper and aluminum conductors.

Characteristics:

Manufacturer/supplier: Tracon
Part number: FLEAL-95/2
Nominal current: Cu 245A / Al 220A
Maximum cable cross-section: Cu 16-95mm2 / Al 16-95mm2
Connection points: 4
Terminal material: Tin-plated aluminum
Dimensions:

h: 50mm, h1: 88mm, b: 42mm, t: 50mm

Material for professional use, must be installed by qualified personnel in compliance with the regulations in force at the place of installation.

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)

Questions

Question

Buenas quería saber si está borja es de un polo comunicado ya que tengo que meter una acometida para un cargador de vehículo eléctrico y sería meterla desde cuarto contadores con su línea existente a vivienda en este caso es una oficina. Si no es así y hay otra borna doble le agradecería que me dijeran el modelo Gracias

Answer

Buenos días.

Ese producto tiene todos los puntos de conexión comunicados entre si.

Saludos

Adajusa

Corsian servicios Sergio on 02/02/2023 09:50:52

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Tapping terminal 1 pole 6x35-150mm2 gray | ADAJUSA

Bypass terminals

Derivation terminal 1 pole 6x35-150mm² Gray

€20.24 (€16.73 tax excl.)

1-pole shunt terminal for DIN rail mounting. Valid for connection of copper and aluminum conductors. Reference: FLEAL-150/3Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Branch terminal 1 pole 2x1.5-16mm2 Blue | ADAJUSA | price

Bypass terminals

Branch terminal 1 pole 2x1.5-16mm2 Blue

€1.63 (€1.35 tax excl.)

1-pole branch terminal for DIN rail mounting. Valid for connecting copper conductors from 1.5 to 16 mm 2 and aluminum conductors from 1.5 to 16 mm 2 . Color blue. Reference: FLEAL-16/1KRepresentative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Branch terminal 1 pole 4x2.5-35mm2 Blue | ADAJUSA | price

Bypass terminals

Branch terminal 1 pole 4x2.5-35mm Blue

€3.86 (€3.19 tax excl.)

1-pole branch terminal for DIN rail mounting. Valid for connecting copper conductors from 2.5 to 35 mm 2 and aluminum conductors from 2.5 to 35 mm 2 . Color blue. Reference: FLEAL-35/2KRepresentative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Branch terminal 1 pole 4x35-240mm2 gray | ADAJUSA

Bypass terminals

Derivation terminal 1 pole 4x35-240mm² Gray

€28.01 (€23.15 tax excl.)

1-pole shunt terminal for DIN rail mounting. Valid for connection of copper and aluminum conductors. Reference: FLEAL-240/2Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Branch terminal 1 pole 4x35-150mm2 gray | ADAJUSA

Bypass terminals

Derivation terminal 1 pole 4x35-150mm² Gray

€14.58 (€12.05 tax excl.)

1-pole shunt terminal for DIN rail mounting. Valid for connection of copper and aluminum conductors. Reference: FLEAL-150/2Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 pole derivation terminal 6x2.5-50mm2 green | ADAJUSA

Bypass terminals

Bypass terminal 1-pole 6x2.5-50mm² Green/Yellow

€9.22 (€7.62 tax excl.)

1-pole shunt terminal for DIN rail mounting. Suitable for connection of copper conductors from 2.5 to 50 mm2 and aluminum conductors from 6 to 50 mm2. Color green/yellow. Reference: FLEAL-50/3ZSRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Derivation terminal 1 pole 4x2.5-50mm2 blue | ADAJUSA

Bypass terminals

Derivation terminal 1 pole 4x2.5-50mm² Blue

€6.32 (€5.22 tax excl.)

1-pole shunt terminal for DIN rail mounting. Valid for connection of copper conductors from 2.5 to 50 mm2 and aluminum conductors from 6 to 50 mm2. Blue color Reference: FLEAL-50/2KRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

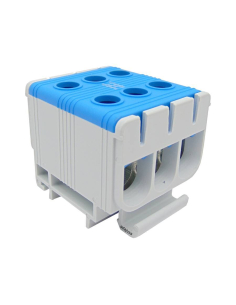

Tapping terminal 1 pole 6x2,5-50mm² Blue | Adajusa

Bypass terminals

Derivation terminal 1 pole 6x2.5-50mm² Blue

€9.22 (€7.62 tax excl.)

1-pole shunt terminal for DIN rail mounting. Valid for connection of copper and aluminum conductors. Reference: FLEAL-50/3KRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Derivation terminal 1 pole 6x16-95mm2 Gray | ADAJUSA | price

Bypass terminals

Derivation terminal 1 pole 6x16-95mm² Gray

€15.75 (€13.02 tax excl.)

1-pole shunt terminal for DIN rail mounting. Valid for connection of copper and aluminum conductors. Reference: FLEAL-95/3Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1-pole bypass terminal 4x16-95mm2 Green/Yellow | ADAJUSA | price

Bypass terminals

Derivation terminal 1 pole 4x16-95mm² Green/Yellow

€10.72 (€8.86 tax excl.)

1-pole shunt terminal. Valid for connection of copper and aluminum conductors. Part No.: FLEAL-95/2ZSRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Branch terminal 1 pole 2x16-95mm2 gray | ADAJUSA

Bypass terminals

Derivation terminal 1 pole 2x16-95mm² Gray

€5.66 (€4.68 tax excl.)

1-pole shunt terminal for DIN rail mounting. Valid for connection of copper conductors from 16 to 95 mm2and aluminum conductors from 16 to 95 mm2. Gray color. Reference: FLEAL-95/1Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Branch terminal 1 pole 2x35-150mm2 gray | ADAJUSA

Bypass terminals

Derivation terminal 1 pole 2x35-150mm² Gray

€8.98 (€7.42 tax excl.)

1-pole shunt terminal for DIN rail mounting. Valid for connection of copper and aluminum conductors. Reference: FLEAL-150/1Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Tapping terminal 1-pole 4x35-240mm² Green/Yellow | Adajusa

Bypass terminals

Derivation terminal 1 pole 4x35-240mm² Green/Yellow

€28.01 (€23.15 tax excl.)

1-pole shunt terminal for DIN rail mounting. Valid for connection of copper and aluminum conductors. Part number: FLEAL-240/2ZSRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1-pole bypass terminal 6x16-95mm2 Green/Yellow | ADAJUSA | price

Bypass terminals

Derivation terminal 1 pole 6x16-95mm² Green/Yellow

€15.75 (€13.02 tax excl.)

1-pole shunt terminal for DIN rail mounting. Valid for connection of copper and aluminum conductors. Part No.: FLEAL-95/3ZSRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Derivation terminal 1 pole 6x35-150mm2 Gray | ADAJUSA | price

Bypass terminals

Tapping terminal 1-pole 6x35-150mm² Green/Yellow

€20.24 (€16.73 tax excl.)

1-pole shunt terminal for DIN rail mounting. Valid for connection of copper and aluminum conductors. Part No.: FLEAL-150/3ZSRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Branch terminal 1 pole 2x2.5-35mm2 Gray | ADAJUSA | price

Bypass terminals

Branch terminal 1 pole 2x2.5-35mm Gray

€2.02 (€1.67 tax excl.)

1-pole branch terminal for DIN rail mounting. Valid for connecting copper conductors from 2.5 to 35 mm 2 and aluminum conductors from 2.5 to 35 mm 2 . Gray. Reference: FLEAL-35/1Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Customers who bought this product also bought:

Branch terminal 1 pole 4x2.5-35mm2 Green/Yellow | ADAJUSA | price

Bypass terminals

Branch terminal 1 pole 4x2.5-35mm Green/Yellow

€3.86 (€3.19 tax excl.)

1-pole branch terminal for DIN rail mounting. Valid for connecting copper conductors from 2.5 to 35 mm 2 and aluminum conductors from 2.5 to 35 mm 2 . Green/yellow color. Reference: FLEAL-35/2ZSRepresentative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Phase connection delivery man 15 outputs with cover

Electrical connection dealers

Phase connection delivery man 15 outputs with cover

€6.68 (€5.52 tax excl.)

Electric connection delivery machine for distribution of phase conductors, 15 holes with transparent polycarbonate lid, capable of supporting up to 50A, brass bar with steel screws and grey polyamide support. Fixation on panel or DIN rail. Manufacturer's Reference: 5015F. Representative image for illustrative purposes, the item supplied will...

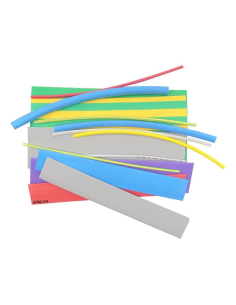

Heat shrink tubing kit, various colors TRACON | Adajusa
