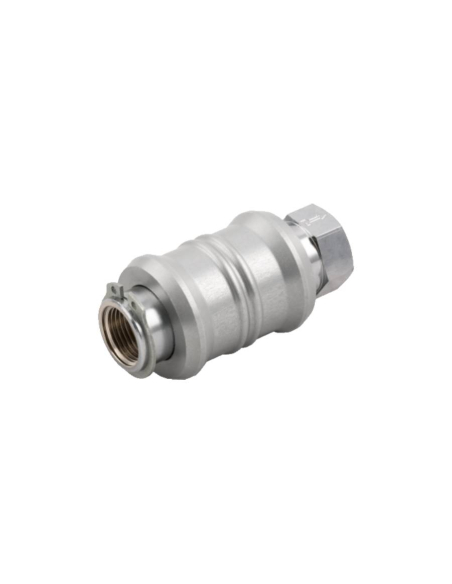

Valve 1/4 female 3- way cut-off - AIGNEP

€11.66 Tax included

9.64 tax excl.

6060 1/4

Valve 1/4 female shut-off , with discharge (3- way ).

Series: Function
Reference: 6060 1/4

aignep
normative

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

1/4 female shut-off valve, with discharge (3- way ), frequently used as a circuit isolating valve.

By moving the ring back, the air supply is interrupted and the circuit is discharged; by moving the ring forward, the air supply to the circuit is established.

These valves can also be considered ON-OFF valves, in the ON position the air from the circuit passes to the use through the connection of the radial holes of the valve shaft, in the OFF position the connection between the circuit is closed. and utilization, and the air flows automatically due to pressure difference.

exhaust valve drawing

Technical characteristics:

Manufacturer: Aignep
Reference: 6060 1/4
Size: 1/4"
Fluid: Compressed air
Slide material: anodized aluminum
Shaft material: chrome plated brass
O-Ring: NBR
Safety ring: steel
Pressure: - 0.99 bar + 10 bar
Temperature: -20 ºC + 80ºC.
Thread: Gas cylindrical IO 228

Dimensions:

6060DIMENSIONS

6060DIMENSIONSTABLE

Material for professional use, install in compliance with the regulations in force at the installation site.

For more information you can download the technical sheet by clicking on the "Attachments" tab

fucntion series catalog

Download (8.93MB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

1/4 female 3-way cutting step valve - Metal Work - ADAJUSA

1/4 female 3-way cutting step valve - Metal Work - ADAJUSA 2

Cutting and unloading valves

Cutting step valve 1/4 female 3-way - Metal Work

€11.22 (€9.27 tax excl.)

Valve of passage (cut) of 1/4 female, with discharge (3 ways).Reference: W0970050002 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Step valve (cut) 3/8 female 3-way

Step valve (cut) 3/8 female 3-way 2

Cutting and unloading valves

Valve cutting step 3/8 female 3-way - Metal Work

€14.05 (€11.61 tax excl.)

3/8 female step valve (cut),discharged (3-way). Reference: W0970050003Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

1/2 female 3-way cutting step valve - Metal Work - ADAJUSA

1/2 female 3-way cutting step valve - Metal Work - ADAJUSA 2

Cutting and unloading valves

Valve cutting step 1/2 female 3-way - Metal Work

€18.17 (€15.02 tax excl.)

1/2 female step valve (cut) with discharge (3-way). Reference: W0970050004Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

16 other products in the same category:

Ball valve for automatic tube 10mm GHILUX - Aignep | ADAJUSA | price

Cutting and unloading valves

Cut-off valve for 10mm 2- way automatic pipe - Aignep

€8.47 (€7.00 tax excl.)

Shut-off valve or ball valve for 10mm automatic tube, 2- way , actuated by handle. Made of chromed brass and handle made of fiberglass reinforced polyamide.Small valve for pneumatic applications of compressed air, tools, automation, food and beverages, plumbing, vacuum and inert gases, thermo-hydraulic sector. Series: GHILUXReference: 6560 10 10...

1 1/2 female shut-off valve with decompression hole - Aignep | ADAJUSA | price

Cutting and unloading valves

1 1/2 female shut-off valve with decompression hole - Aignep

€177.28 (€146.51 tax excl.)

Shut-off valve or ball valve G1 1/2 female (ISO 228 compliant), 2- way , lever operation. Valve provided with a decompression orifice with exhaust to the atmosphere allowing the controlled release of the fluid. Body made of nickel-plated brass and steel lever. Valve for pneumatic applications. Series: GHILUX Reference: 6755L 1 1/2 Representative image...

GHILUX 2- way 3/8 female ball valve - Aignep | ADAJUSA | price

Cutting and unloading valves

3/8 female 2- way shut-off valve - Aignep

€5.43 (€4.49 tax excl.)

Shut-off valve or 3/8 female ball valve (RP in accordance with ISO 7), 2- way , actuated by handle. Made of chromed brass and handle made of fiberglass reinforced polyamide.Small valve for pneumatic applications of compressed air, tools, automation, food and beverages, plumbing, vacuum and inert gases, thermo-hydraulic sector. It has BS EN 331:2015...

GHILUX 2- way 1/2 female ball valve - Aignep | ADAJUSA | price

Cutting and unloading valves

1/2 female 2- way shut-off valve - Aignep

€7.80 (€6.45 tax excl.)

Shut-off valve or 1/2 female ball valve (RP in accordance with ISO 7), 2- way , actuated by handle. Made of chromed brass and handle made of fiberglass reinforced polyamide.Small valve for pneumatic applications of compressed air, tools, automation, food and beverages, plumbing, vacuum and inert gases, thermo-hydraulic sector. It has BS EN 331:2015...

GHILUX 2- way 1/4 female ball valve - Aignep | ADAJUSA | price

Cutting and unloading valves

Shut-off valve 1/4 female 2 way - Aignep

€5.19 (€4.29 tax excl.)

Shut-off valve or 1/4 female ball valve (RP in accordance with ISO 7), 2- way , actuated by handle. Made of chromed brass and handle made of fiberglass reinforced polyamide.Small valve for pneumatic applications of compressed air, tools, automation, food and beverages, plumbing, vacuum and inert gases, thermo-hydraulic sector. It has BS EN 331:2015...

1/4 female 3-way cutting step valve - Metal Work - ADAJUSA

1/4 female 3-way cutting step valve - Metal Work - ADAJUSA 2

Cutting and unloading valves

Cutting step valve 1/4 female 3-way - Metal Work

€11.22 (€9.27 tax excl.)

Valve of passage (cut) of 1/4 female, with discharge (3 ways).Reference: W0970050002 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

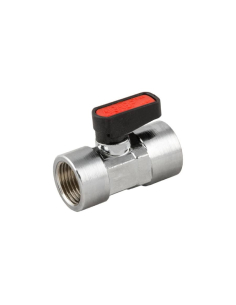

GHILUX 2- way 1/8 female ball valve - Aignep | ADAJUSA | price
