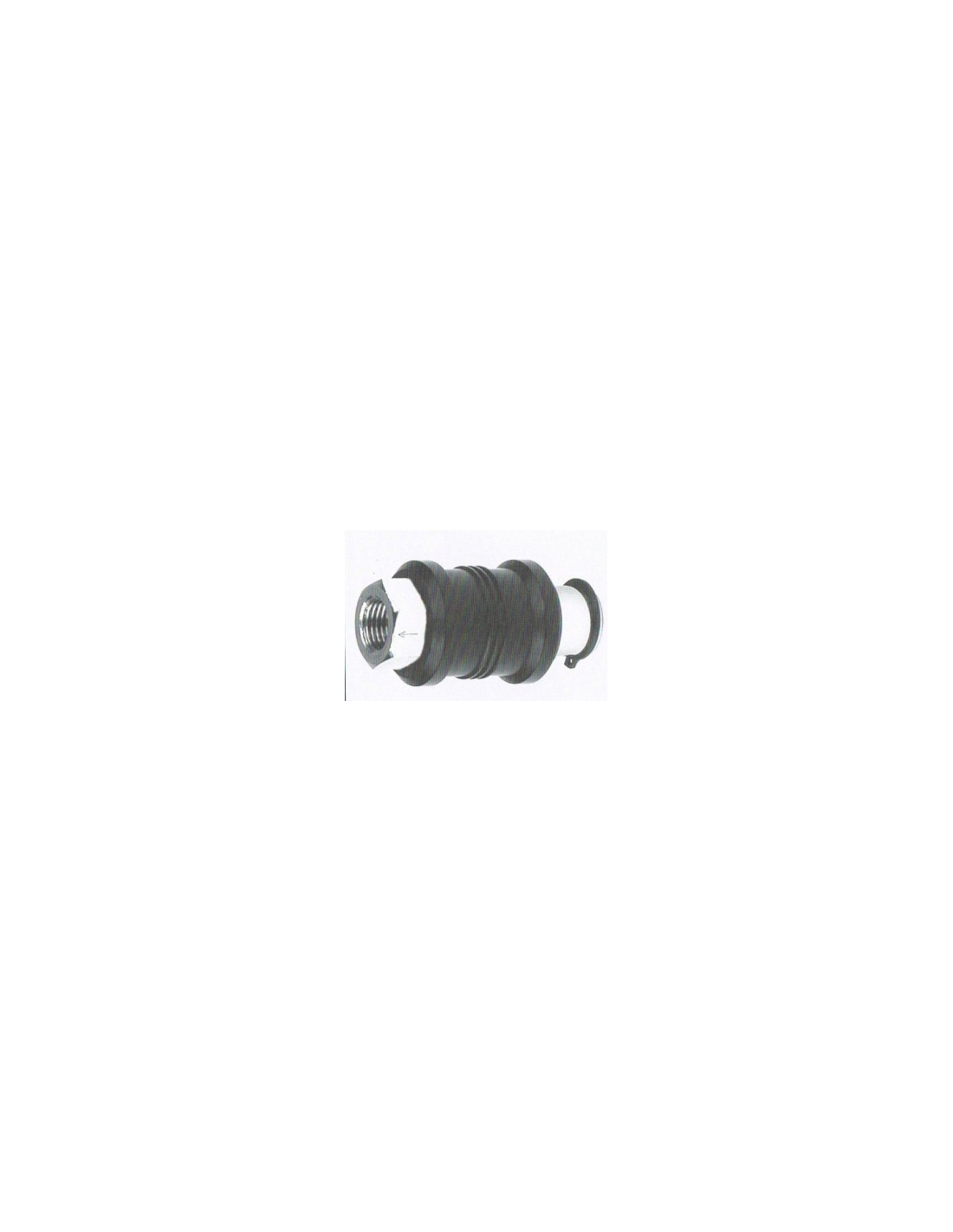

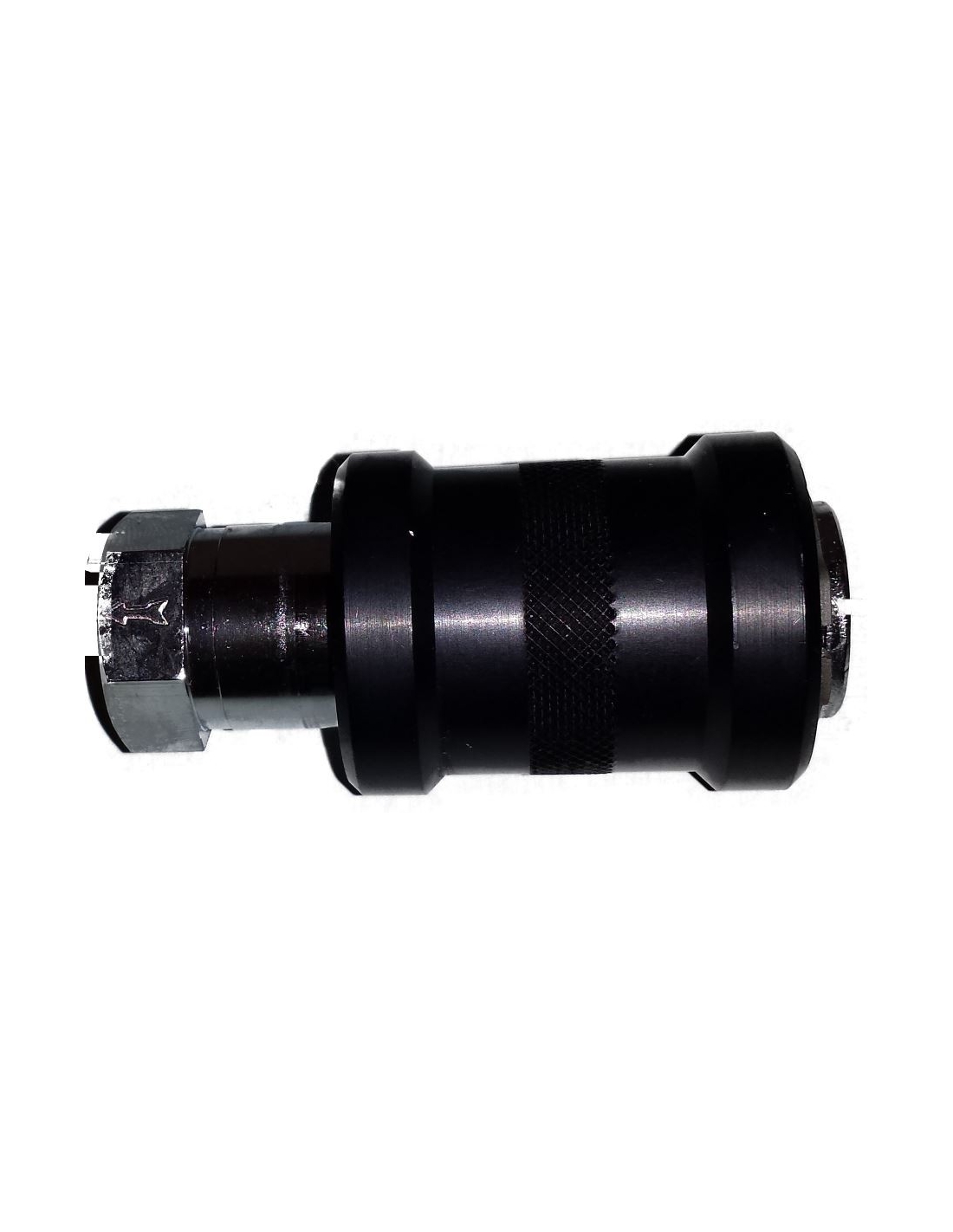

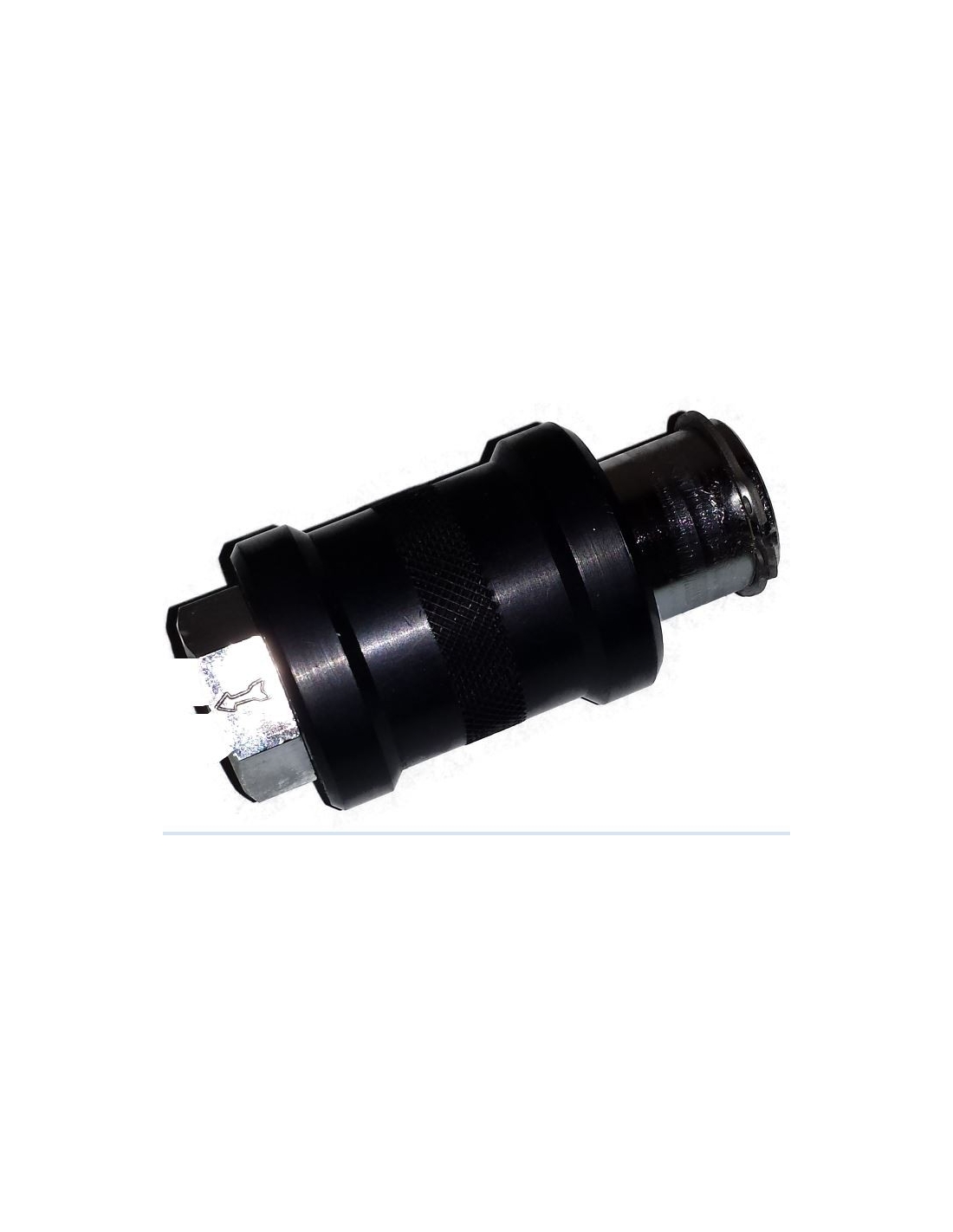

Cutting step valve 1/4 female 3-way - Metal Work

€10.78 Tax included

€8.91 tax excl.

Valve of passage (cut) of 1/4 female, with discharge (3 ways).

Reference: W0970050002

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

1/4 female step valve (cut) with discharge (3-way), frequently used as a circuit disconnector valve.

By pushing back the ring, the air supply is interrupted and the circuit is discharged, when the ring advances air supply to the circuit is established.

Manufacturer: Metal Work
Manufacturer reference: W0970050002 series VCS-1/4.
Operating pressure: 0 ÷ 10 bar (0 ÷ 1 MPa)
Operating temperature °C: –10 ÷ 80
Fluid: Filtered air with or without lubrication
Flow rate at 6.3 bar (0.63 Mpa ÷ 91 psi) ∆P 0.5 bar Nl/min: 430
Flow rate at 6.3 bar (0.63 Mpa ÷ 91psi) ∆P 1bar Nl/min: 630
Conductance C Nl/min · bar: 170
Critical ratio b bar/ba: 0.2

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
