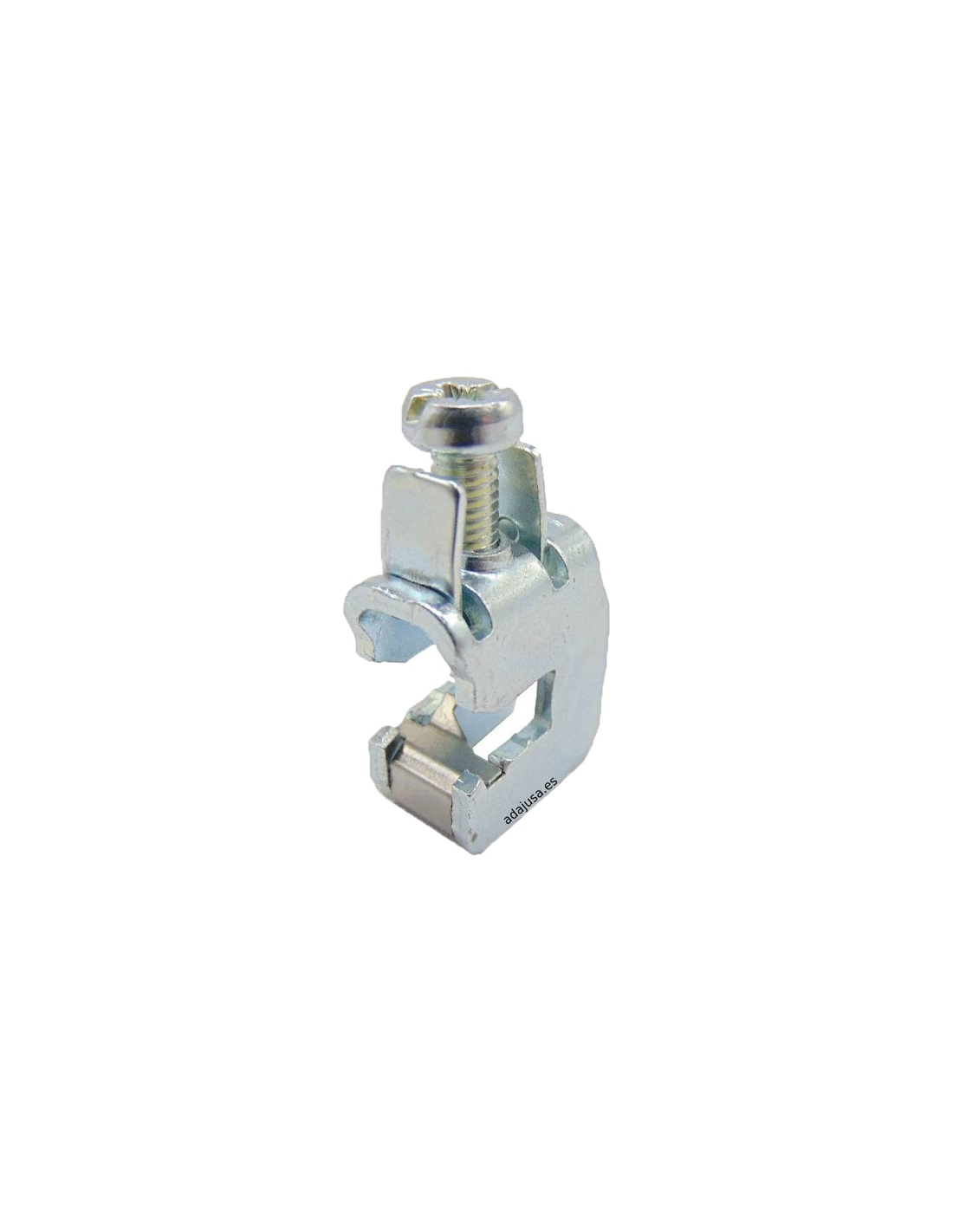

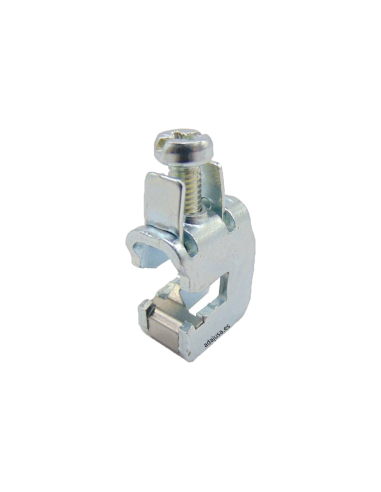

Direct mounting terminal block 16-120mm2 10mm thick plate

€4.56 Tax included

€3.77 tax excl.

Direct mounting terminal block for cable cross-section ^16-120mm2, thickness of the mounting block 10mm.

Reference: SZK120F10

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Direct mounting terminal on 10mm thick copper plates, for cable cross-section between ^16-120mm2. Mounting with quick clamp type coupling. Manufactured in high quality steel, Chromium VI free. Solution for a simple and robust installation.

Easy and safe mounting on the plate thanks to the high clamping force provided by the screw, avoiding torsion thanks to its patented "Twist-Stop" mechanism and guaranteeing a fixed mounting after installation.

Features:

Manufacturer/supplier: XBS/Mixvil
Part number: SZK120F10
Cable cross section: ^16-120mm2
Allowable current: 344A
Mounting: 10mm thick plate
Standard: EN 60999
Material: High quality steel
Spring: Stainless steel

Material for professional use, must be installed by qualified personnel in compliance with the regulations in force at the place of installation

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)
