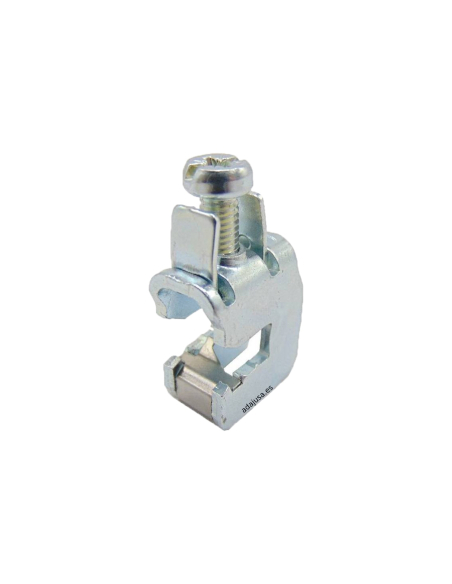

Direct mounting terminal 16-120mm2 plate thickness 5mm

€4.26 Tax included

€3.52 tax excl.

Terminal for direct mounting on a plate for cables with a section of 16-120mm ² , thickness of the mounting plate 5mm.

Reference: SZK120F5

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Direct mounting terminal on 5mm thick copper plates, for cables with a section between 16-120mm ² . Assembly with quick clamp type coupling. Made of high quality steel, free of Chromium VI. Solution for a simple and robust installation.

Easy and safe mounting on the plate thanks to the great tightening force provided by the screw, avoiding twisting thanks to its patented “Twist-Stop” mechanism and guaranteeing a fixed mounting after installation.

Characteristics:

Manufacturer/supplier: XBS /Mixvil
Reference: SZK120F5
Cable section: 16-120mm ²
Allowable current: 344A
Mounting: 5mm thick plate
Standard: EN 60999
Material: High quality steel
Spring: Stainless steel

Material for professional use, it must be installed by qualified personnel, respecting the regulations in force at the installation site.

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)
