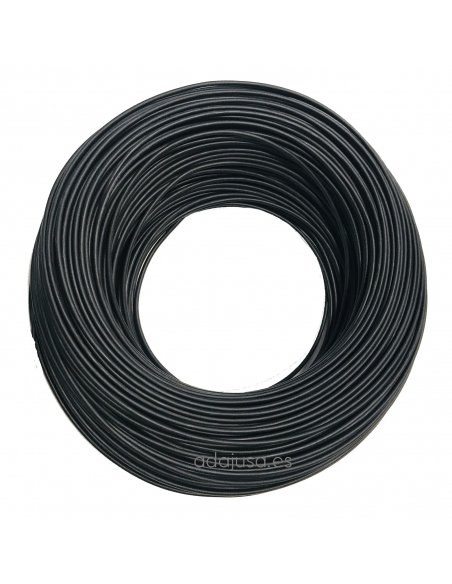

Flexible unipolar cable 1.5 mm2 black
Flexible unipolar cable 1.5 mm2 black

Flexible unipolar cable 1.5 mm halogen-free black color

Special material, PayPal payment not accepted
€0.53 Tax included

€0.44 tax excl.

Flexible 1.5mm2 halogen-free section cable, black color, specially designed for internal wiring of electrical cabinets, switch boxes and electrical appliances. Designed under CPR (EN 50575).

  • Series: ToxFree ZH - H07Z1-K (AS).
  • Color: Black.
  • Section: 1.5mm2.

Price per meter
Material cut to size, no return or cancellation of the order is allowed




Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Unipolar flexible cable of 1.5mm² section, halogen free, black color. Manufactured by Top Cable . This cable has been specially designed for installations where a flexible cable is required for signaling and control and electrical installations.

The H07Z1-K (AS) series is halogen-free, which means it can be used in installations of public places, such as: hospitals, schools, museums, airports, bus stations, and shops in general.

Manufactured with a design that complies with the CPR standard (EN 50575).

Price and supply per metre
Material cut to size, no return or cancellation of the order is allowed

Technical characteristics:

  • Manufacturer: Top Cable .
  • Series: ToxFree ZH.
  • Type: H07Z1-K (AS).
  • Conductor: class 5 electrolytic copper (flexible) according to UNE-UN 60228.
  • Insulation: Extra-slip fireproof polyolefin, halogen-free and with low emission of fumes and corrosive gases in case of fire.
  • Nominal section: 1.5mm².
  • Color: Black (RAL 9011).
  • Nominal voltage: 450 / 750V.
  • Voltage drop (V / A x km): 31.9.
  • Thermal characteristics:
    • Temp. conductor maximum: 70ºC.
    • Temp. maximum in short circuit: 160ºC (maximum 5 s).
  • Characteristics against fire:
    • Flame retardant according to UNE-EN 60332-1 and IEC 60332-1.
    • Fire relationship CPR: E according to EN 50575.
  • Outside diameter: 2.9mm.
  • Bend radius: 5 x outer diameter.
  • Resistant to acceptable chemical attack.
  • Presence of water: AD3 aspersion.
  • Installation conditions: piped.
  • Design: According to CPR standard (EN 50575).
  • Reference standard: UNE-EN 50525-2-31 / IEC 60227-3
  • ITC and certifications: ITC: 9/20/26/27/29/30/31/34 CE SEC HAR AENOR RoHS Certificates.
  • Applications:
    • Wiring in electrical cabinets.
    • Home interiors.
    • Premises of public concurrence.
  • Weight: 0.019 kg / meter.

Material for professional use, install in compliance with the regulations in force at the installation site.
