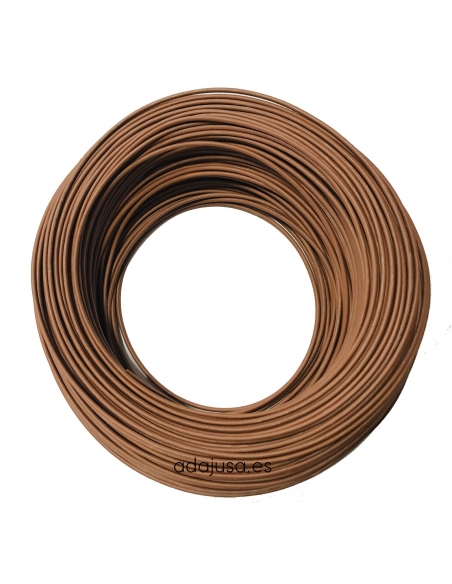

Flexible unipolar cable 1.5 mm2 brown
Flexible unipolar cable 1.5 mm2 brown

Flexible unipolar cable 1.5 mm halogen-free brown color

Special material, PayPal payment not accepted
€0.51 Tax included

€0.42 tax excl.

Flexible 1.5mm2 halogen-free, brown section cable specially designed for internal wiring of electrical cabinets, switch boxes and electrical appliances. Designed under CPR (EN 50575).

  • Series: ToxFree ZH - H07Z1-K (AS).
  • Color: Brown.
  • Section: 1.5mm2.

Price per meter
Material cut to size, no return or cancellation of the order is allowed



logotipo_top_cable

logo_CPR_HQ

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Unipolar flexible cable of 1.5mm² section, halogen free, brown color. Manufactured by Top Cable . This cable has been specially designed for installations where a flexible cable is required for signaling and control and electrical installations.

The H07Z1-K (AS) series is halogen-free, which means it can be used in installations of public places, such as: hospitals, schools, museums, airports, bus stations, and shops in general.

Manufactured with a design that complies with the CPR standard (EN 50575).

Price and supply per metre
Material cut to size, no return or cancellation of the order is allowed

Technical characteristics:

  • Manufacturer: Top Cable .
  • Series: ToxFree ZH.
  • Type: H07Z1-K (AS).
  • Conductor: class 5 electrolytic copper (flexible) according to UNE-UN 60228.
  • Insulation: Extra-slip fireproof polyolefin, halogen-free and with low emission of fumes and corrosive gases in case of fire.
  • Nominal section: 1.5mm².
  • Color: Brown (RAL 8003).
  • Nominal voltage: 450 / 750V.
  • Voltage drop (V / A x km): 31.9.
  • Thermal characteristics:
    • Temp. conductor maximum: 70ºC.
    • Temp. maximum in short circuit: 160ºC (maximum 5 s).
  • Characteristics against fire:
    • Flame retardant according to UNE-EN 60332-1 and IEC 60332-1.
    • Fire relationship CPR: E according to EN 50575.
  • Outside diameter: 2.9mm.
  • Bend radius: 5 x outer diameter.
  • Resistant to acceptable chemical attack.
  • Presence of water: AD3 aspersion.
  • Installation conditions: piped.
  • Design: According to CPR standard (EN 50575).
  • Reference standard: UNE-EN 50525-2-31 / IEC 60227-3
  • ITC and certifications: ITC: 9/20/26/27/29/30/31/34 CE SEC HAR AENOR RoHS Certificates.
  • Applications:
    • Wiring in electrical cabinets.
    • Home interiors.
    • Premises of public concurrence.
  • Weight: 0.019 kg / meter.

Material for professional use, install in compliance with the regulations in force at the installation site.
