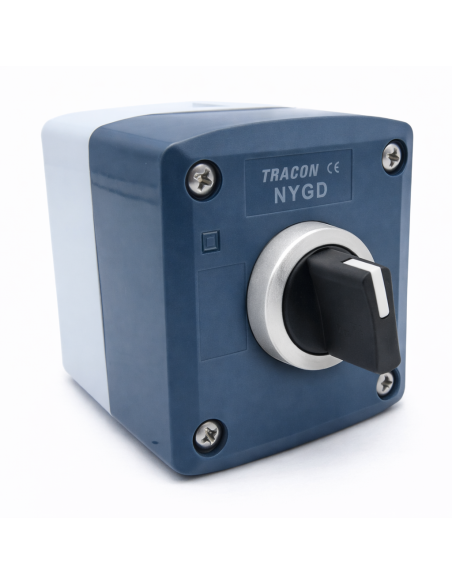

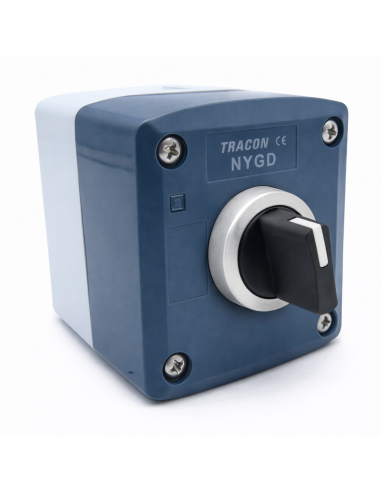

Button box with 3-position selector with left side return NYK3-S33BK| ADAJUSA | price
Button box with 3-position selector with left side return NYK3-S33BK| ADAJUSA | price

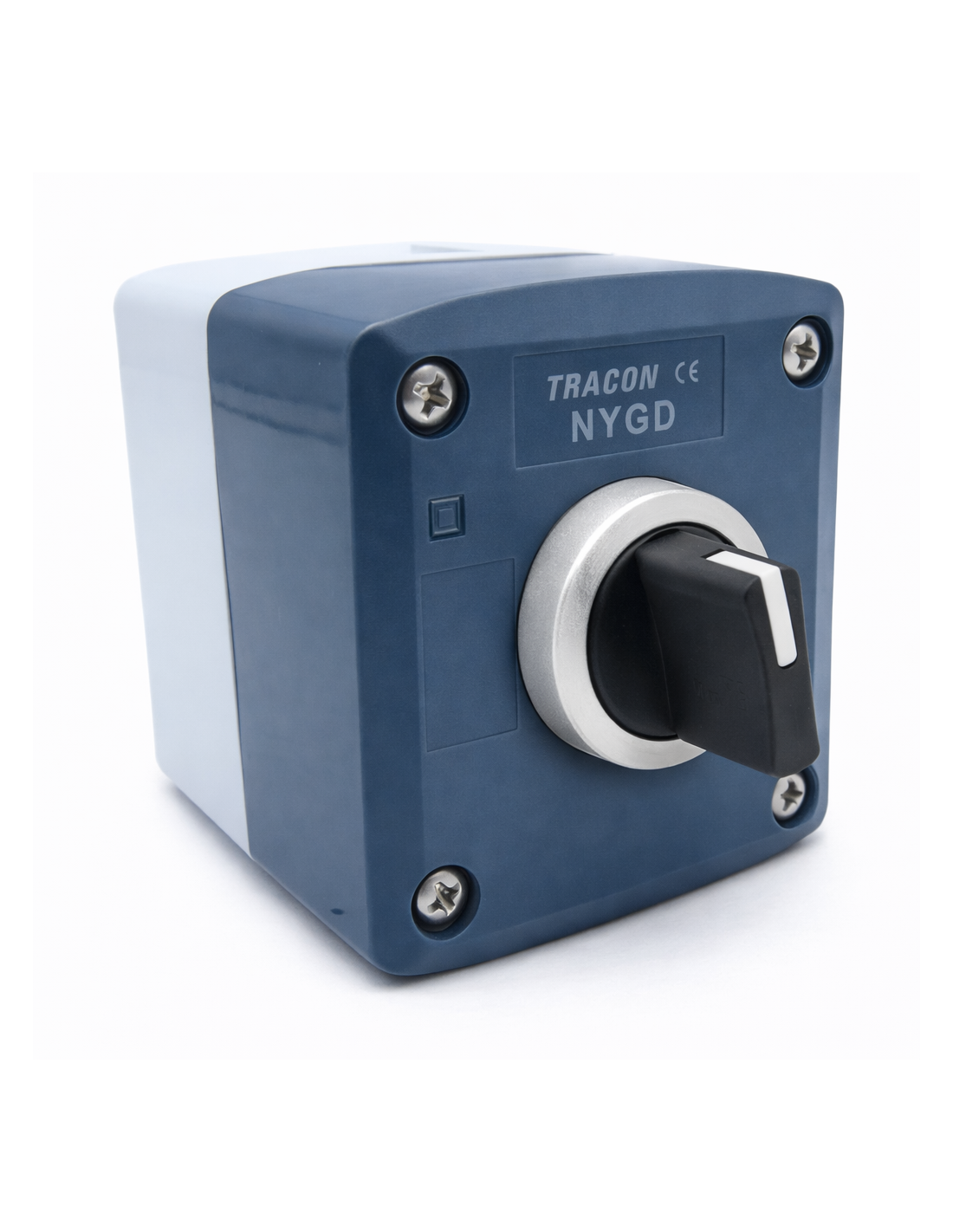

Box with 3-position selector with full left return - NYG Series

€9.49 Tax included

€7.84 tax excl.

PK-NYK3-S33BK

Box with 3-position selector with full return. Plastic selector of three positions with return in the left side position remaining fixed in the right and central position, with two open contacts 2(NO). Box manufactured in high resistance plastic of grey color and front in dark grey color.


Part No.: PK-NYK3-S33BK


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Box with three-position selector with full return. Plastic selector with short three-position handle with return with two open contacts (2NO), the return occurs in the left side position, remaining fixed in the right and central position. Box made of high-strength plastic gray and dark gray front. Degree of protection IP65 from the front side.

The dimensions of the box are: 73x71x65,5mm



The supply does not include the assembly, the box and the push button are supplied loose.



Features:

  • Manufacturer/Supplier: Tracon
  • Part number: PK-NYK3-S33BK
  • Pushbutton type: 3 position selector with return
  • Push button color: Black
  • Inscription: None
  • Contacts2 open (2NO)
  • Box in light grey/dark grey plastic
  • Bore diameter: 22mm
  • Rated working current (AC 1, 230V): 6A
  • Rated working current (AC 15, 230V): 3A
  • Rated working current (DC 13, 250V): 0.27A
  • Rated insulation voltage: 660V
  • Working temperature: -25ºC to +40ºC
  • Degree of protection: IP65 (from front side)
  • Standards: EN 60947-1; EN 60947-5-1










Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

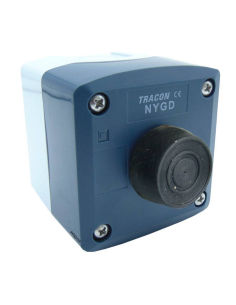

Black push Button box with rubber cover NYGBP21T| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with black metal push button with full rubber cover - NYG Series

TRACON
PK-NYGBP21T
€8.83 (€7.30 tax excl.)
Black push button Box with full rubber cover. Black metal pushbutton with an open contact (1NO) and rubber protection, box made of high-resistance gray plastic and dark gray front. IP44 protection grade.Reference: NYGBP21T Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Button box with mushroom push-button stop Ø40 NYG3-ETLR| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with mushroom pushbutton Ø40 with full rotation unlocking indication - NYG Series

TRACON
PK-NYG3-ETLR
€13.15 (€10.87 tax excl.)
Box with mushroom type stop push button unlocking by turning, diameter 40mm. Plastic mushroom push button with visual status indication and STOP marking, with a closed contact (1NC) and case made of high resistance plastic in gray color and dark gray front.Reference: PK-NYG3-ETLR Representative image for illustrative purposes, the item supplied will...
Button box with yellow push button with rubber cover NYGBP51ST| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with yellow metal push button with full rubber cover - NYG Series

TRACON
PK-NYGBP51ST
€8.81 (€7.28 tax excl.)
Yellow push button Box with full rubber cover. Yellow metal pushbutton with an open contact (1NO) and rubber protection, box made of high-resistance gray plastic and dark gray front. IP44 protection grade.Reference: NYGBP51ST Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

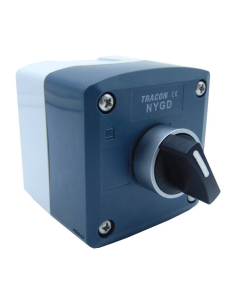

Button box with 2-position selector NYBD21KSTT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with 2-position metal selector complete - NYG Series

TRACON
PK-NYBD21KSTT
€8.76 (€7.24 tax excl.)
Box with complete 2-position selector. Short lever metal selector with 2 maintained positions and 1 open contact (NO), box made of high-resistance gray plastic and dark gray front. IP44 protection grade.Reference: NYBD21KSTT Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Button box with start-stop push button NYG3-D| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with full start-stop pushbutton - NYG Series

TRACON
PK-NYG3-D
€10.25 (€8.47 tax excl.)
Box with full start-stop push button. Double plastic on-off push button with one contact open and one contact closed (1NO + NC), case made of high resistance plastic in grey color and front in dark grey color. Part number: PK-NYG3-D Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
TLP6E1 Giovenzana button - adajusa TLP6E1 Giovenzana button - adajusa 2
Button boxes with controls already installed

TLP6E1 - Giovenzana type button

Giovenzana Internacional B.V.
GI-TLP6E1
€58.03 (€47.96 tax excl.)
Button box mounted for moat and inspection of elevators, with pushbuttons with monoblock contacts, IP-54. It complies with the specific regulations for elevators and machines, it allows to satisfy all safety requirements. The supply includes: Box for 5 elements with socket for plug type schuko. Emergency pushbutton 1 NC (Possibility to mount another...
View
Button box with 2-position Off-On key selector NYBG41KKT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with metal selector key 2 positions Off-On complete - NYG Series

TRACON
PK-NYBG41KKT
€9.57 (€7.91 tax excl.)
Box with 2-position selector activated by a complete key. Metal selector with 2 maintained position key and 1 open contact (NO), box made of high-resistance gray plastic and dark gray front. IP44 protection grade.The key can be inserted or removed in both positions.Reference: NYBG41KKT Representative image for illustrative purposes, the item supplied...
Button box with 3-position selector with return NYBD53KSTT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with 3-position metal selector with full return - NYG Series

TRACON
PK-NYBD53KSTT
€10.32 (€8.53 tax excl.)
Box with complete 3-position selector. Short lever metal selector with 3 positions with return (1 fixed position and 2 others keeping it activated) and 2 open contacts (2NO). Box made of high-resistance gray plastic and dark gray front. IP44 protection grade.Reference: NYBD53KSTT Representative image for illustrative purposes, the item supplied will...
Pendant control station emergency stop and 2 Harmony push buttons XAC SCHNEIDER | ADAJUSA | price Pendant control station emergency stop and 2 Harmony push buttons XAC SCHNEIDER | ADAJUSA | price 2
Lifting elements - crane bridges - hostas

Pendant emergency stop push Button box and 2 push buttons - SCHNEIDER

Schneider
XACA2913
€105.23 (€86.97 tax excl.)
Button box equipped with an emergency stop button and up and down buttons providing 2 speeds (low and high) for each movement. Pendant Box ideal for elevators and crane applications for the control of two-speed motors, made of yellow polypropylene with stepped rubber cable entry.In compliance with the safety requirements of IEC standards. Reference:...
Button box with key selector switch 2 potions NYK3-K21| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with 2-position key selector switch complete - NYG Series

TRACON
PK-NYK3-K21
€10.82 (€8.94 tax excl.)
Box with 2-position key-operated selector switch complete. Plastic key-operated two-position selector with one contact open and one contact closed (NO + NC), housing made of high-strength gray plastic and dark gray front. Part number: PK-NYK3-K21 Representative image for illustrative purposes, the item supplied will correspond to the specifications...
Button 10 elements PLN10 Series Giovenzana adajusa
Lifting elements - crane bridges - hostas

Emergency Button PLN10 Crane Bridge or Hoste - Giovenzana

Giovenzana Internacional B.V.
GI-PLN10
€173.11 (€143.07 tax excl.)
Hanging button mounted for bridge crane or hoist, and use in general. It has an emergency stop button Ø30 with interlocking, a pushbutton with alarm and pushbuttons for up and down, behind and front, behind and front (double speed) and left right. It complies with the specific regulations for this type of elements that satisfy all safety requirements....

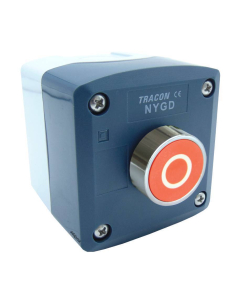

Button box with stop button with "O" inscription NYGBA4222PT| ADAJUSA | price
