Box with full gear push button - NYG Series
Box with full gear push button - NYG Series

Box with full gear push button - NYG Series

€6.35 Tax included

€5.25 tax excl.

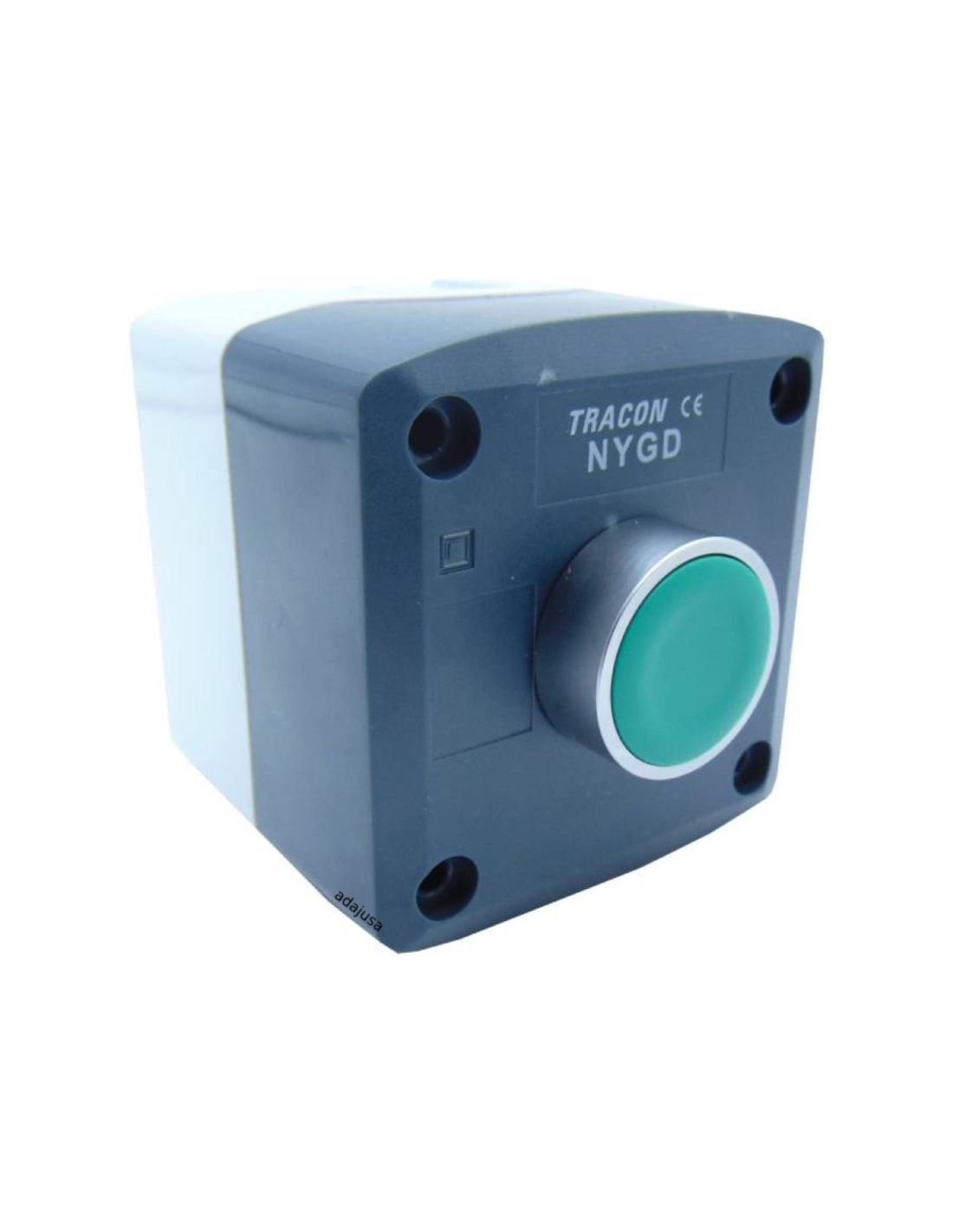

Box with full gear push button. Green metal pushbutton with an open contact (1NO) and a box made of high-resistance gray plastic with a dark gray front. IP44 protection grade.


Reference: NYGBA31ZT


 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Box with full gear push button. Green metal pushbutton with an open contact (1 NO) and a box made of high-resistance gray plastic with a dark gray front. IP44 protection grade.

The box has space for mounting another additional contact, open or closed, on the button. The maximum number of contacts per item is 2.

The dimensions of the box are: 73x71x65.5mm



The supply does not include assembly, the box and the button are supplied loose.



Characteristics:

  • Manufacturer/Supplier: Tracon
  • Reference: NYGBA31ZT
  • Button type: Start button
  • Button color: Green
  • Registration: None
  • Contacts : 1 NO
  • Light gray/dark gray plastic Box
  • Drill diameter: 22mm
  • Rated working current (AC 1, 230V): 6A
  • Rated working current (AC 15, 230V): 3A
  • Nominal working current (DC 13, 250V): 0.27A
  • Rated insulation voltage: 660V
  • Working temperature: -25ºC to +40ºC
  • Protection grade: IP44
  • Regulations: EN 60947-1; EN 60947-5-1










Material for professional use, install in compliance with the regulations in force at the installation site.
