Pack

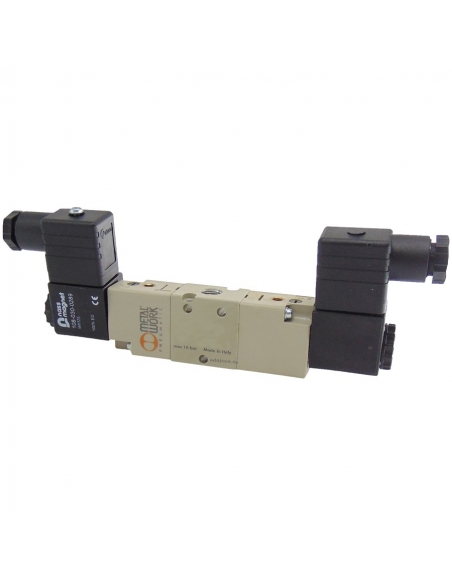

Solenoid valve 1/8 5 ways 3 positions assisted pressure centers with coil - Metal Work - ADAJUSA

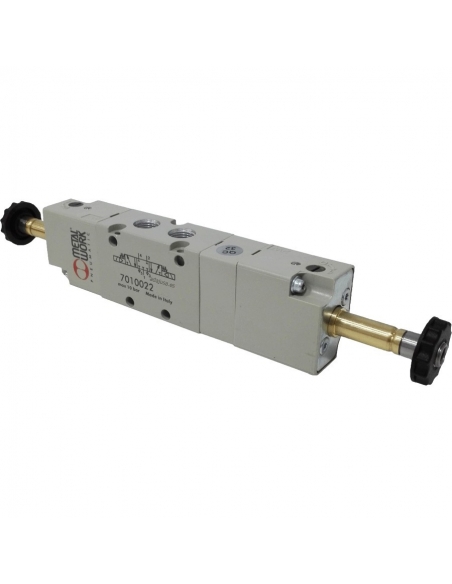

Solenoid valve 1/8 5 ways 3 positions assisted pressure centers - Metal Work - ADAJUSA

Solenoid valve 1/8 5 ways 3 positions assisted pressure centers with coil - Metal Work - ADAJUSA

Solenoid valve 1/8 5 ways 3 positions assisted pressure centers - Metal Work - ADAJUSA

Solenoid valve 1/8 5 way 3 positions assisted c. p. 230Vca - Metal Work

€118.33 Tax included

€97.79 tax excl.

Solenoid valves of 1/8" of 5 ways and 3 positions,assisted, centers in pressure, metal body, for pneumatic applications of industrial or general use. With 230Vca connectors and coils

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

2x

Solenoid valve coil 230Vac 3.5VA T22 diameter 8 - Metal Work

Solenoid valve coil 230Vac 3.5VA T22 diameter 8 - Metal Work

€8.28

2x

Solenoid valve connector size 22

Solenoid valve connector size 22 - Metal Work

€1.36

1x

Solenoid valve 1/8 5 ways 3 positions assisted pressure centers - Metal Work - ADAJUSA

Solenoid valve 1/8 5 way 3 positions assisted pressure centers - Metal Work

€99.06

No queries yet, leave the first!

Description
Frequently questions

Solenoid valves of 1/8" of 5 ways and 3 positions, assisted, centers in pressure, metal body, for pneumatic applications of industrial or general use, the most common application is of control of cylinders of double effect.

The supply includes:

Electrovalvula 1/8 5/3 c.p. assisted
2 Coils 230Vca 3.5VA
2 T22 connectors

Specifications:

Solenoid valve manufacturer: Metal Work.
Solenoid valve reference: 7010022500 - SOV 26 SES OC
Solenoid valve working pressure: 2.5 to 10 bar.
Minimum working pressure: 2.5 bar.
Working temperature: -10ºC to 60ºC.
Nominal diameter: 5mm.
Flow at 6 bars Δp 1 bar: 550 Nl/min.

Dimensiones electroválvula 1/8 5/3 Metal Work

Material for professional use, install in compliance with the regulations in force at the place of installation.
