Superimmunized differential 2x63A 30mA class A-SI A9R61263 - Schneider

€96.47 Tax included

€79.73 tax excl.

Superimmunized differential of 2 poles 63A 30mA (0.03A) for protection of electrical installations.
Class A-SI differential

Reference: A9R61263

Esquema electrico diferencial monofásico
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

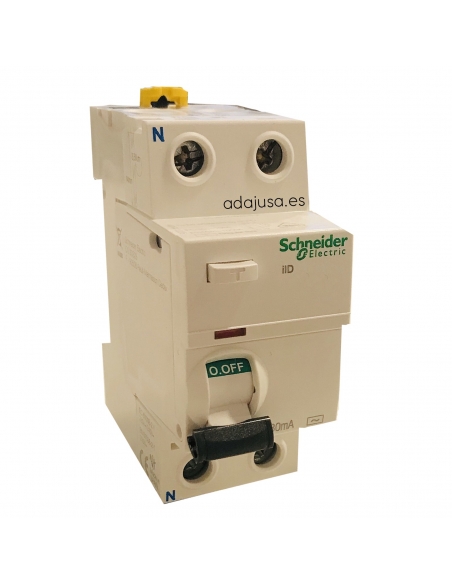

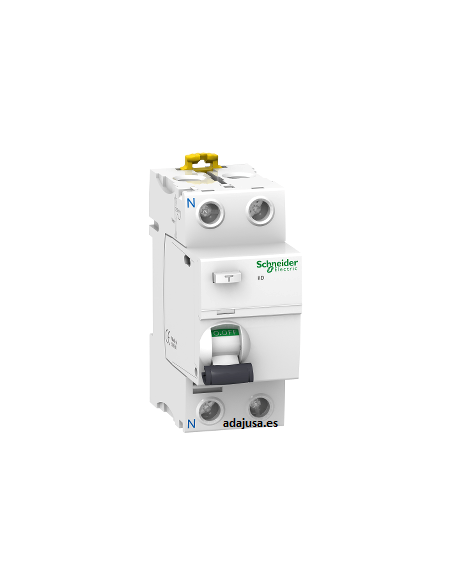

Residual Current Breaker (rcb) Schneider superimmunized model A9R61263 of 63A 30 mA (0.03A), 2 poles, for protection of people against insulation / derivation problems in installations or electrical elements.

Employment class A-SI. Situation of the neutral on the left side.

Specifications:

  • Brand: Schneider Electric
  • Series: Acti 9 ilD
  • Reference: A9R61263
  • Number of poles: 2
  • Class A-SI
  • Working voltage: 240Vac
  • Rated current (In): 63A
  • Short circuit conditional current: 10kA
  • Sensitivity (IΔn): 30mA
  • Standard: EN/IEC 61008-18-1
  • CE Marking
  • Connection capacity: 25 mm2 cable
  • Allows the use of PIN type connection combs
  • Dimensions: 36mm (2 modules)



To expand the information you can download the technical sheet by clicking on the "Attachments" tab.
Material for professional use, install in compliance with the regulations in force at the place of installation.
