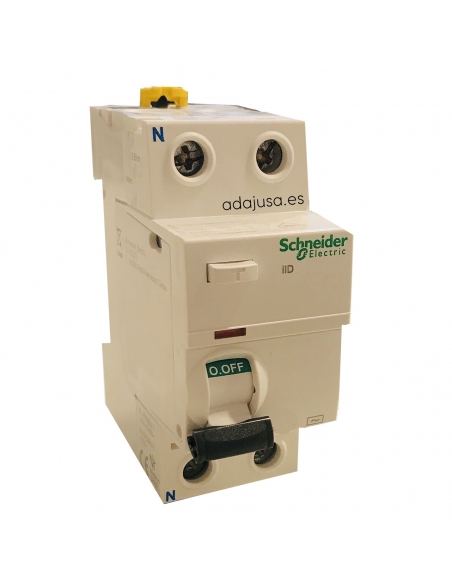

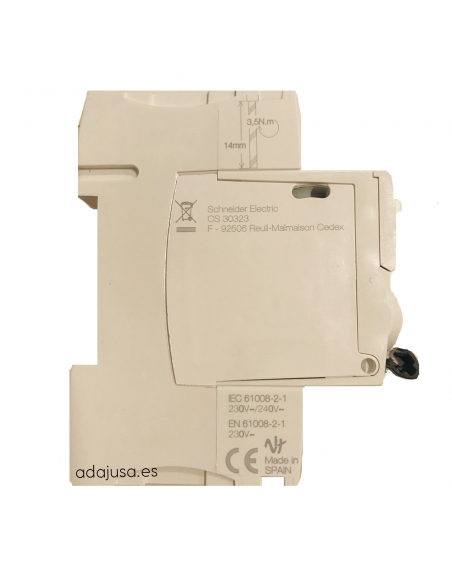

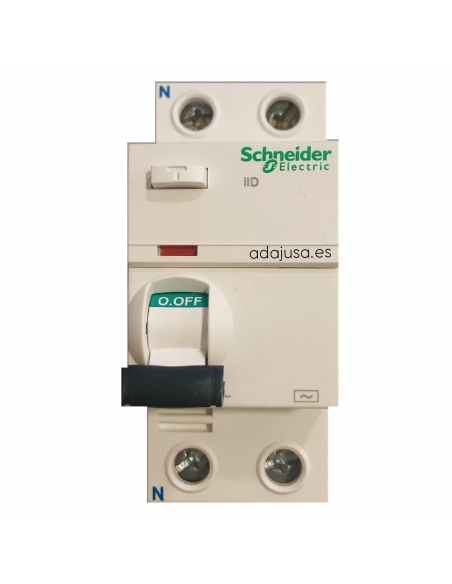

Differential Circuit Breaker RCD 2 poles 25A 10mA AC iID - Schneider Electric

€61.61 Tax included

€50.92 tax excl.

2 Pole 25A differential switch, very high sensitivity, 10mA (0.01A), specially designed for protection against derivations in areas of special hazard (baths, hot tubs...).

Standard "AC" class differential.

Ref: A9R10225

Esquema electrico diferencial monofásico

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Electrical differential switch Schneider Acti 9 ilD series, model A9R8 of 25A 10 mA (0.01A), 2 poles, electromagnetic type, for protection of people against insulation/derivation problems in installations or electrical elements. For use in domestic, tertiary and industrial sectors.

Standard "AC" employment class.

This type of differentials are electromagnetic operating, which allows not to lose the safety function in case of variations in supply voltage or loss of the neutral conductor, only with the derivation in the active phase occurs the differential firing occurs. Being electromechanical operating provides a wide operating voltage range (typical between 6 and 415V), which implies a high degree of immunity to variations in the input voltage; the safety function is not lost to the power failure in the neutral.

Technical details:

  • Brand: Schneider Electric
  • Series: Acti 9 ilD
  • Ref: A9R10225
  • Number of poles: 2
  • Employment in the domestic, tertiary and industrial sectors
  • Electromechanical type
  • Class "AC"
  • Employment voltage: 240Vac
  • Nominal intesity (In): 25A
  • Sensitivity (IΔn): 10mA
  • Cutting power: 6kA
  • Regulations: EN/IEC 61008-18-1
  • CE marking
  • Connection capacity: cable 25 mm2
  • Allows the use of PIN connection combs
  • Dimensions: 36mm (2 modules).

Material for professional use, install in compliance with the regulations in force at the installation site.
