Mechanical speed drive size 80 (0.75-1HP)

€229.92 Tax included

€190.02 tax excl.

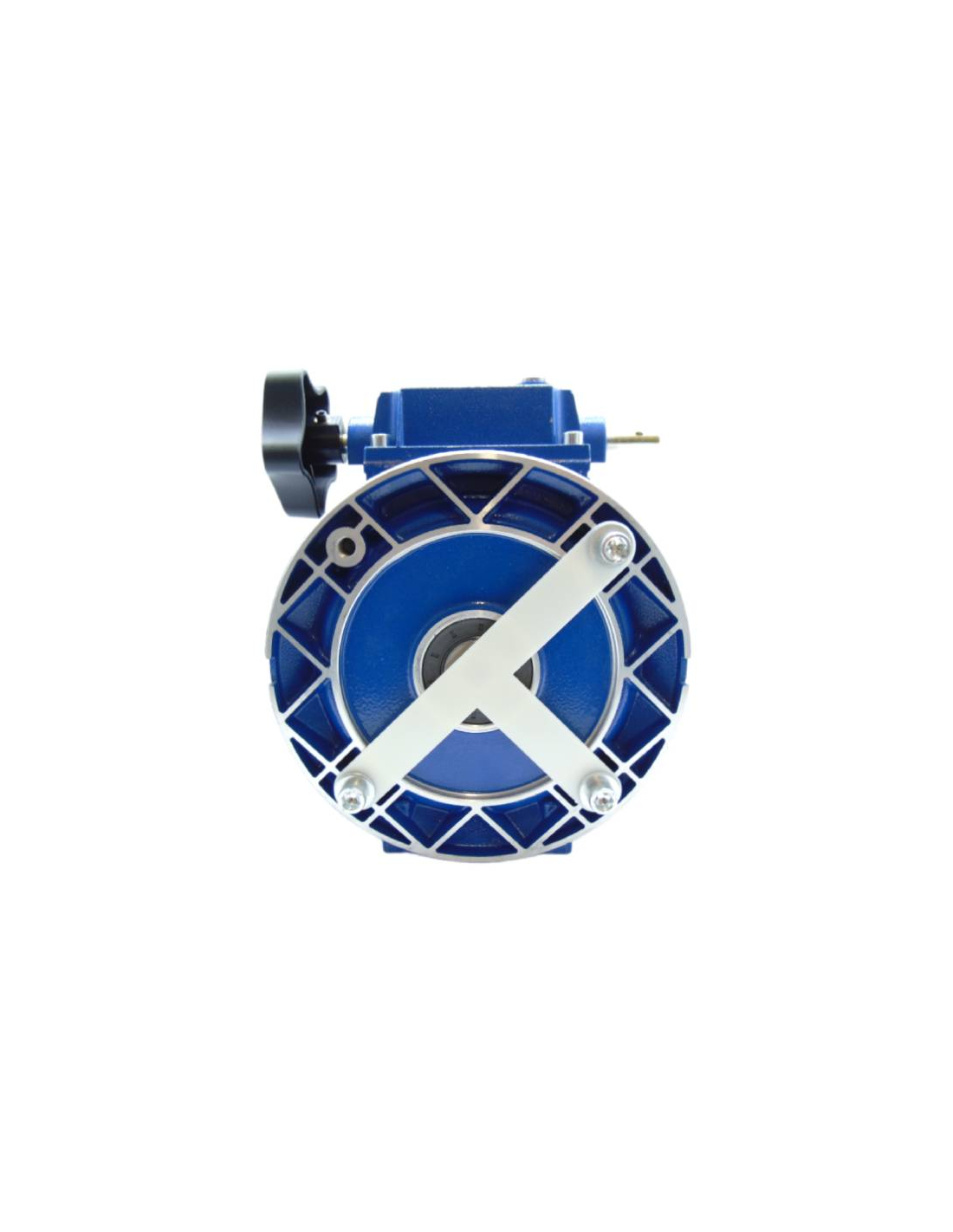

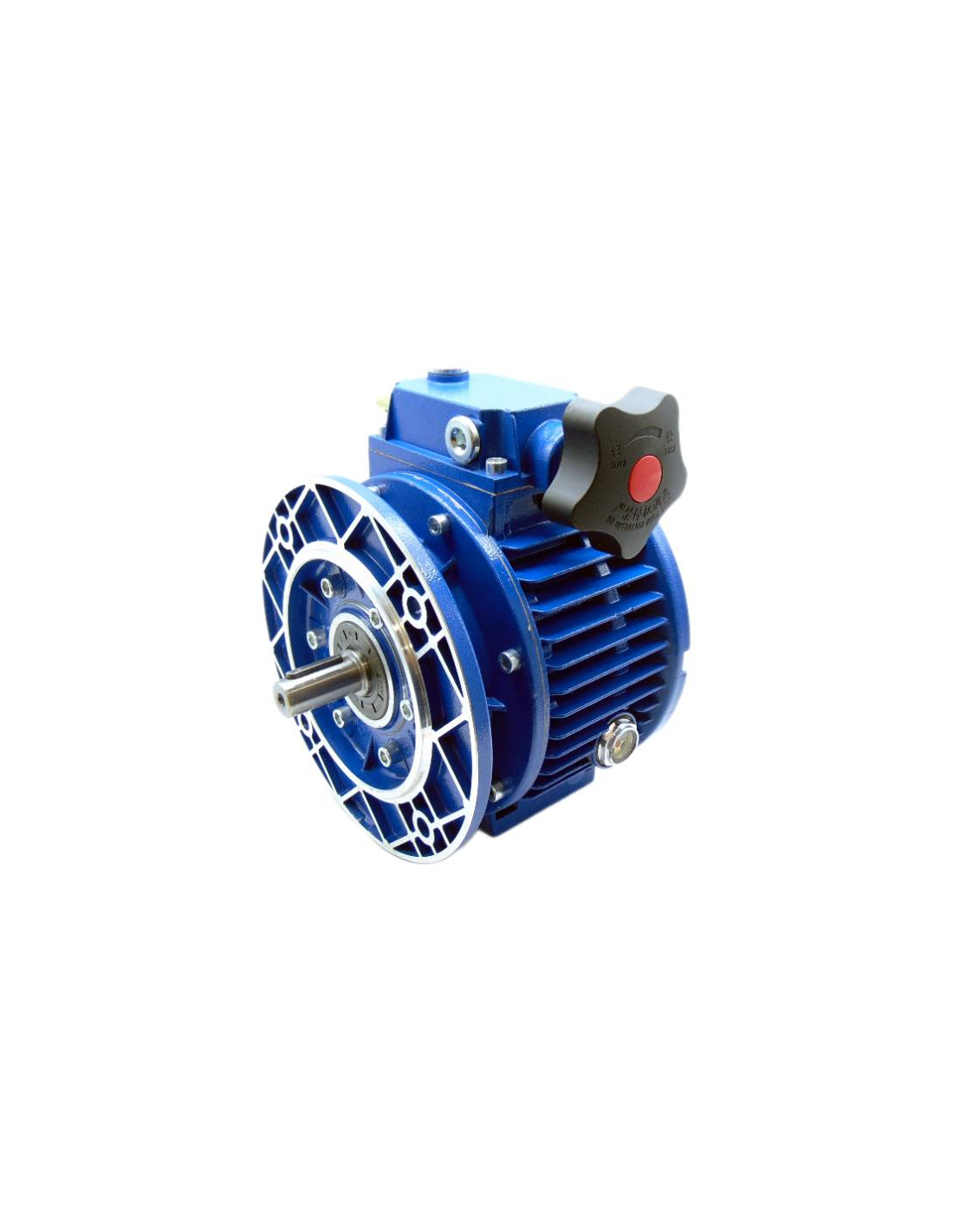

Mechanical variable speed drive with which the speed of the turn can be varied by means of the lateral maneuvering wheel, to be coupled to engines with flange size B5 size 80. Output shaft of the Ø19 drive and Ø200mm flange.

  • Usual engines (not included) 0.75-1HP 1400rpm
  • Vel. Maximum output: 950 rpm
  • Vel. Minimum output: 190 rpm









Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Mechanical speed reducer inverter,planetary discs, manually operated by means of a maneuvering wheel, to be coupled to motors with flange type B5 and size 80.

Mechanical motor drives-reducers,manufactured with special advanced technology, which makes them specially adapted for work in the maintenance industry, ceramics, packaging, chemical, textile, food, tooling machine, automatic production and assembly lines, and in general, in those in which a speed regulation is required.

Its main characteristics are the following:

  • Continuous regulation field 1:5.3 made throughout the range with respect to the input speed.
  • Speed constant ±0.5% at maximum speed and ±1% at minimum speed.
  • Indistinct direction of rotation with concordant input and output.
  • Quiet and uniform operation.
  • Good sizing to ensure a long life even with continuous service and at full load.
  • Increase of the torque, up to twice the nominal at the minimum speed.
  • High starting torque.
  • High performance, about 84% at maximum speed.

Specifications:

  • Reducer size: 80.
  • Diameter Output shaft: 19mm.
  • Diameter saida flange: 200mm
  • Diameter Inlet shaft: 19mm.
  • Inlet flange diameter: 200mm.

Recommended engines:

Pot rev. entrance rev. salt. Maxims rev. salt. Minimum
0.75PS 900 610 122
0.75PS 1400 950 190
1CV 1400 950 190
1CV 2800 1900 380
1.5PS 2800 1900 380
2CV 2800 1900 380

Dimension Summary:

Dimensiones variadores mecánicos

  • A: 131.5mm.
  • E: 40mm.
  • diameterD: 19mm.
  • diameterN: 200mm.
  • Or: 11mm.

It must be borne in mind that this type of mechanical drives require maintenance, the amount of lubrication oil must be checked and that they cannot be regulated stopped, if a regulation is attempted with the variator stopped, there will be a mismatch of the planetarium system, you can not work in these conditions, there will be an excessive heating of the regulator and if this situation is maintained over time, a serious breakdown of the same. Keep in mind that this type of incident is not covered by the warranty.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab.
Material for professional use, install in compliance with the regulations in force at the place of installation
