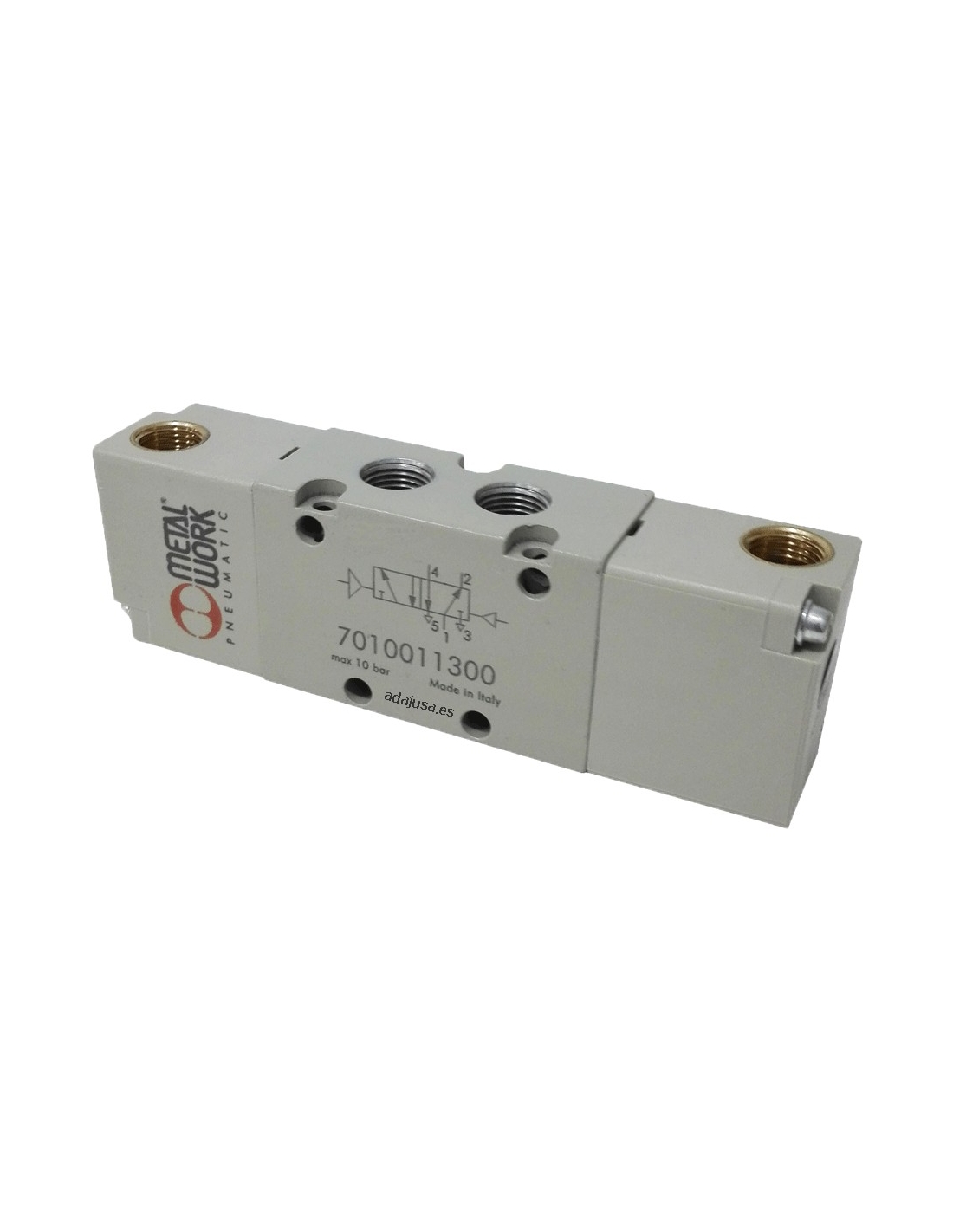

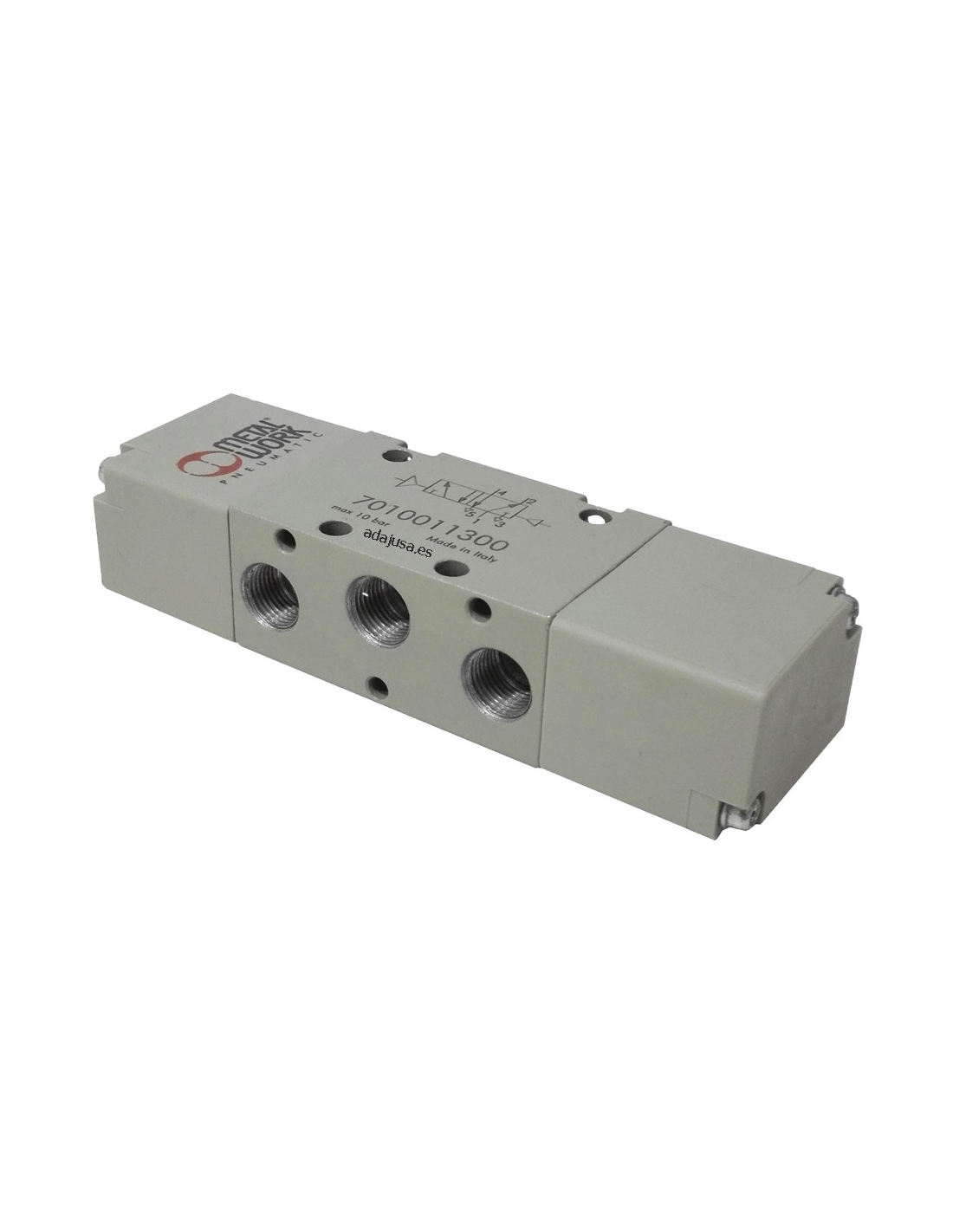

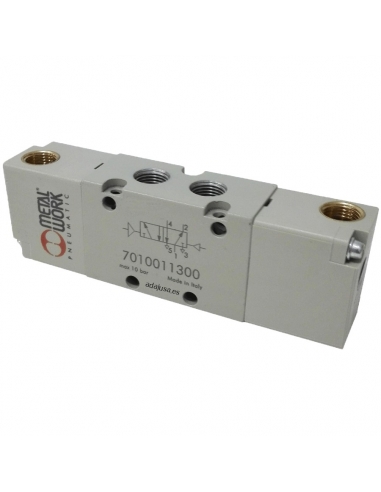

Pneumatic valve 1/8 5/2 differential - Metal Work

€40.83 Tax included

€33.74 tax excl.

Pneumatic valve 1/8 5 ways 2 differential positions.

Reference: 7010011300


Logotipo Metal Work

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Pneumatic valve 1/8 5 ways bistable differential.

    • Manufacturer: Metal Work.
    • Reference: PNV25PNDOO Code: 7010011300
    • Operating pressure bar: Empty ÷ 10
    • Minimum drive pressure: 1
    • Operating temperature °C: -10 ÷ +60
    • Nominal diameter mm: 5
    • Conductance C Nl/min · bar: 121.43
    • B bar/bar critical ratio: 0.32
    • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
    • Flow rate at 6 bar ΔP 1 bar Nl/min: 550
    • Monostable TRA/TRR at 6 bar ms: 6/15
    • Bistable TRA/TRR at 6 bar ms: 7/7



    Material for professional use, install in compliance with the regulations in force at the place of installation.

    To expand the information you can download the technical sheet by clicking on the "Attachments" tab
