1/8 4-way valve 3 positions c.c. rotary lever -...
1/8 4-way valve 3 positions c.c. rotary lever -...
1/8 4-way valve 3 positions c.c. rotary lever - Mindman
1/8 4-way valve 3 positions c.c. rotary lever - Mindman

1/8 4-way valve 3 positions c.c. rotary lever - Mindman

€29.71 Tax included

€24.55 tax excl.

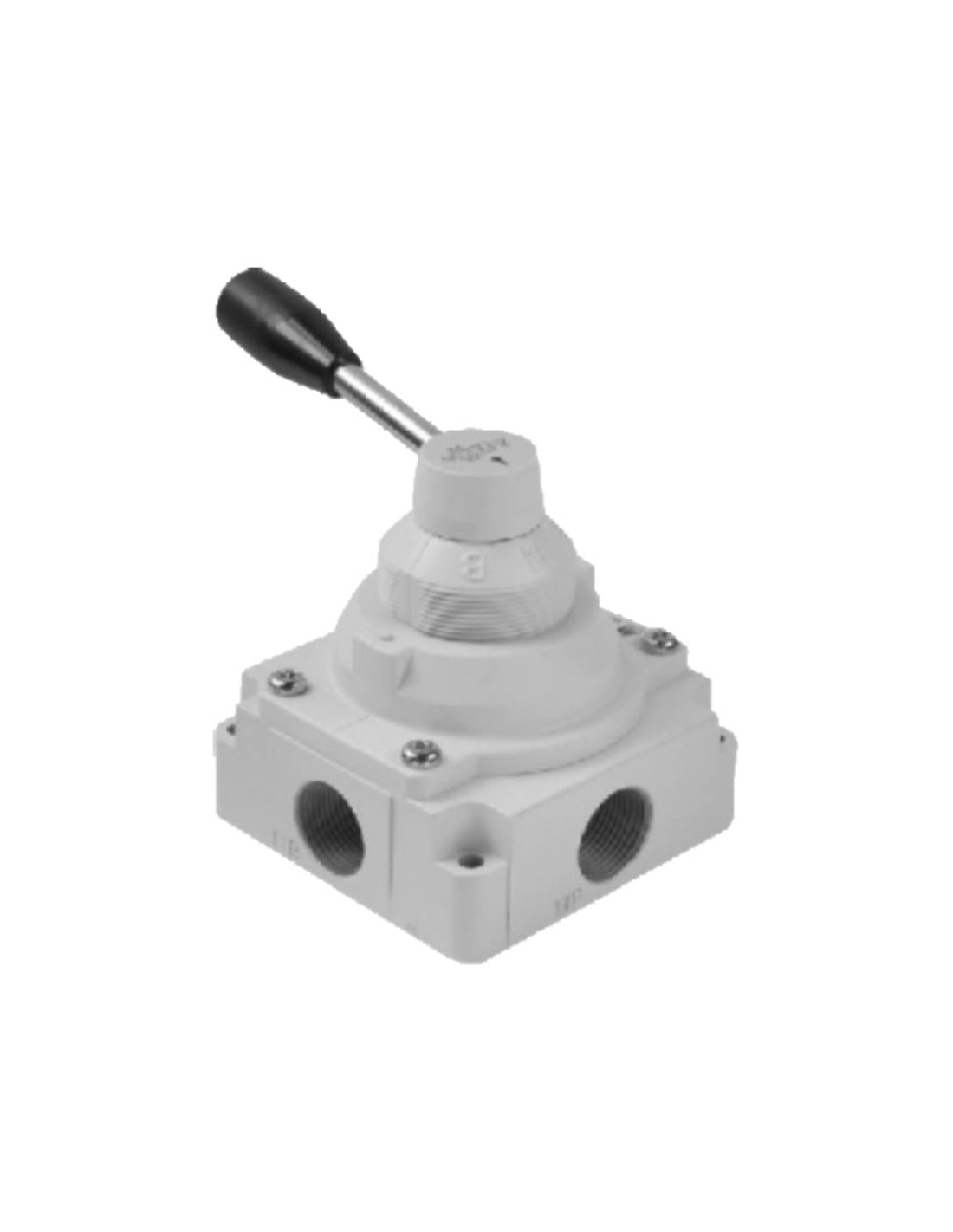

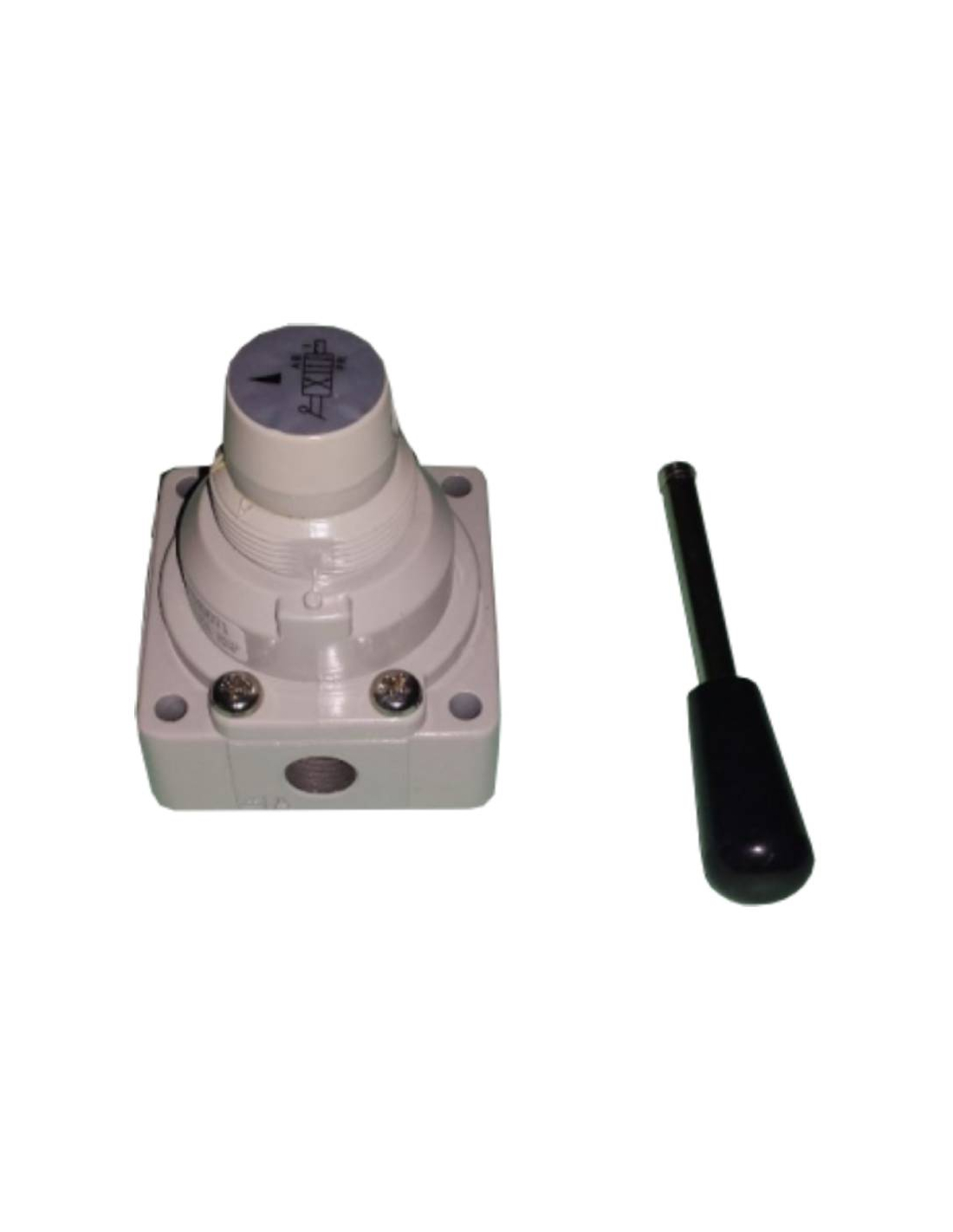

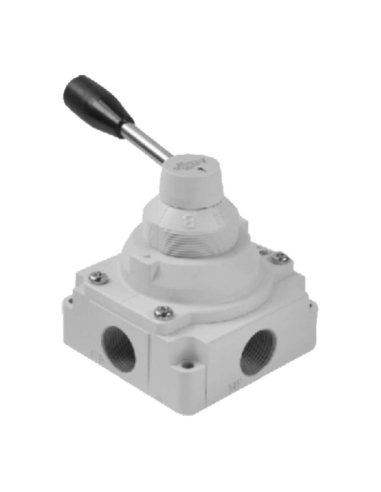

1/8 valve manually operated by rotary lever. 4 ways 3 closed center positions, metal body. For dual-effect cylinder control.

Reference: 281MVHC2004H06A

https://rodavigo.net/datos/logos-marcas-png/th_mindman.png

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


1/8 manual drive valve by 4-way rotary lever, 3 fixed positions and closed centers, which allow to control double-effect cylinders.

The valve has 3 stable positions, in one of them the cylinder advances, in the middle, the cylinder stops but maintains pressure (force), and in the other position the cylinder is collected.

It can also be used as a step or cut valve and for general use.

Fastening by through screws or transpanel mounting with front nut fastening. Mounting accessories not included in the supply.

Technical characteristics:

  • Manufacturer: Mindman.
  • Reference: MVHC-200-4H-6A.
  • Configuration: 4 ways 3 fixed positions closed centers.
  • Thread type: G 1/8".
  • Effective surface: 7mm2.
  • Fluid type: Air under pressure, with or without lubrication.
  • Working pressure: 0 to 10 Kgr.
  • Working temperature: -5o to +60o (Non-condensing).
  • Screw fastening: 4 through holes 5.5mm.
  • Nut fixing: M33x1.5mm nut (Not included).
  • Valve body material: Metal.
  • Weight: 336 g.

For other models consult. You can download the catalog by clicking on the DOWNLOADS tab.

Dimensiones válvula palanca 1/8 4 vías 3 posiciones mindman
