Transformer 800VA E:230-400V S:230V IP-00

€135.31 Tax included

€111.83 tax excl.

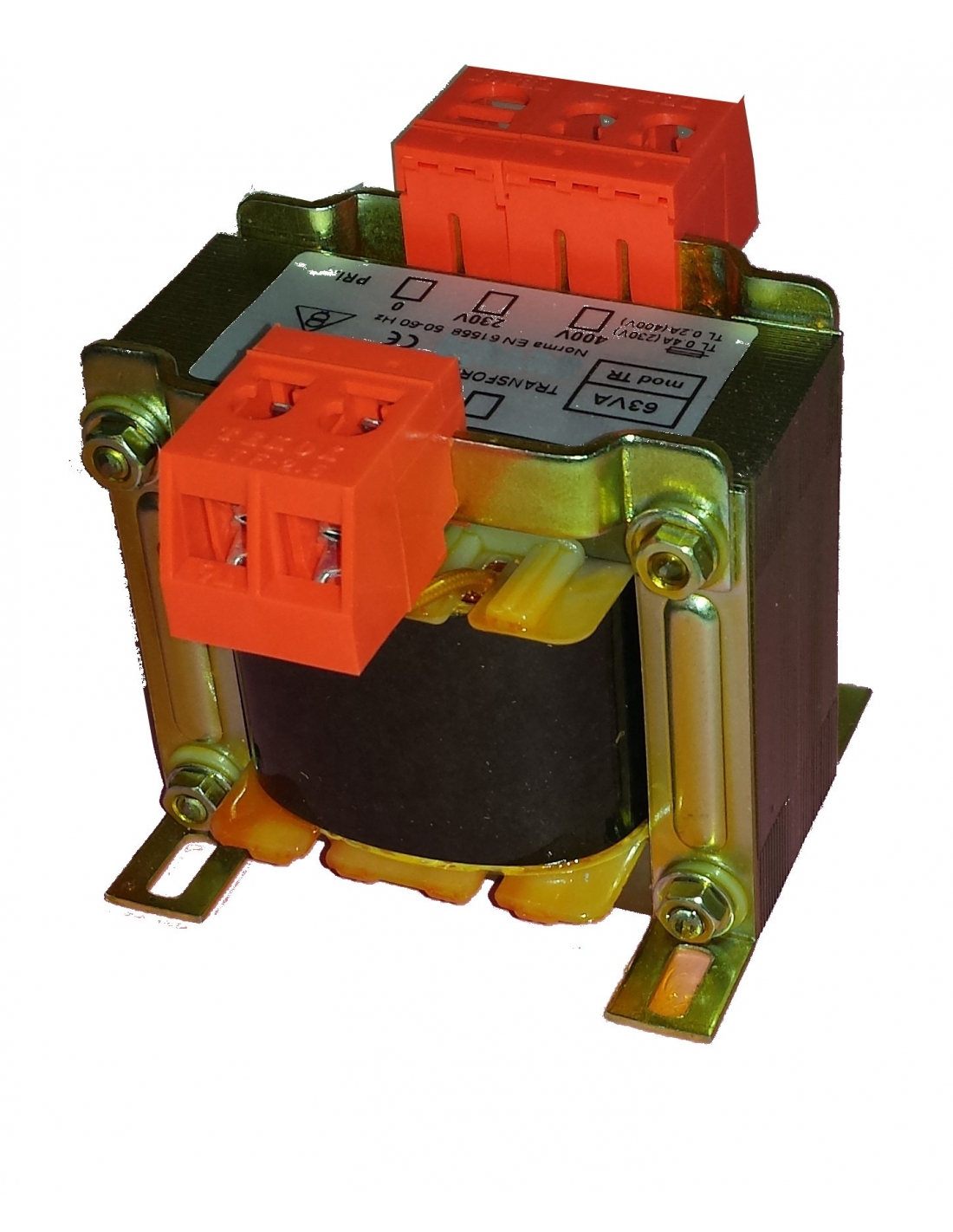

Single-phase transformer for command, control and general uses, input voltage 230-400 Vac and output voltage 230Vac. The transformer power is 800VA, protection degree IP00.

Reference: TR800 230-400/230

Esquema transformador monofasico 230 adajusa

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Single-phase transformer input 230-400Vac and output 230Vac, power 800VA. Varnished transformer, with degree of protection IP-00. The maximum current supplied is 3.47A (apparent current).

The main application of this type of transformers is for command and control in industrial automatisms, and for applications in general. They are intended to supply electrical devices where galvanic isolation between circuits is required. They are protected against humidity by means of resin impregnation.

This type of transformers are fully reversible.

Technical characteristics of the transformer:


  • Part no.: TR-800-2 / TR800 230-400/230
  • Type of transformer: Single-phase
  • Transformer primary voltage: 230-400Vac
  • Transformer secondary voltage: 230Vac
  • Transformer rated power: 800 VA
  • Maximum secondary current (In): 3,47A
  • Windings: thermal class N 200ºC.
  • Insulation: Thermal class B 130ºC.
  • Frequency: 50/60 Hz.
  • Protection: IP-00.
  • Transformer test voltage
    • 5 KV between windings.
    • 2.5 KV between windings and ground.
  • Ambient temperature: Ta= 25ºC.
  • Transformer encapsulation: varnished.
  • Transformer mounting: by means of screws.
  • Certificate: UNE-EN61558

Dim_trafo_monofasico_ip00

  • A: 126 mm
  • B: 150 mm
  • C: 160 mm
  • D: 103 mm
  • E: 105 mm
  • Diameter: 6 mm
  • Weight: 7.5 Kg

The transformer is supplied without any type of overload protection, it is mandatory to install them to avoid overloading the transformer. The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load.
Material for professional use, install in compliance with the regulations in force at the place of installation.
