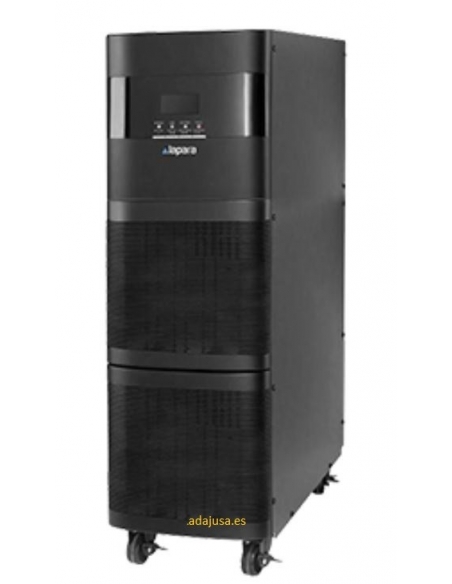

The UPS, uninterruptible power supplies series LA-ON3113-LC, adjustable input and output are On-Line and high performance with pure sine wave output, true double conversion, and a power factor of 0.9. They provide the most advanced protection thanks to its design
Equipped with real double conversion system, provides a very stable output voltage level and clean of interference and mains noise, to avoid affecting the equipment connected to its output.
The main fields of application are:
- Critical devices
- Servers
- Network applications
- Medical and surgical equipment
- Laboratory instruments
- Recording studios
- Industrial equipment
are also ideal for application in industrial sectors.
- Machinery
- Motors
- Boilers.
By connecting to the electrical panel of an installation, it allows to provide it with a stable electrical network.
As output connections, it has a terminal strip.
It incorporates an LCD screen to monitor consumption, battery status and various operating parameters.
As main features we can highlight:
- On line UPS with real double conversion
- DSP technology that guarantees high performance
- Output power factor 10
- Wide input voltage range per phase
- Active power factor correction on all phases
- 50Hz/60Hz frequency conversion mode
- Energy saving ECO operation mode (ECO)
- Programmable output sockets
- Emergency Power Off function (EPO)
- Compatible with generators
- Multiple SNMP (Optional) + USB + RS 232 communication ports
- 3-stage extendable load design for optimized operation
- Maintenance bypass available
- Optional N+X parallel redundancy available
Technical specifications (*):
- Manufacturer/Importer Lapara
- Model: LA-ON3113-10K-LCD-V10
- Input and Output Voltage Type: Tri/Tri, Tri/Mono, Mono/Mono
- Output Voltage (Programmable): 208/220/230/240 Vac
- Maximum Power: 10000VA - 10000W
- Frequency range: 40..70Hz
- AC output voltage regulation (Battery mode): ±1%
- Overload
- AC mode: 100%~110%: 10min 110%~130%: 1min; >130% : 1sec
- Battery mode: 100%~110%: 30sec 110%~130%: 10sec; >130% : 1sec
- Peak current ratio: 3:1
- Transfer time:
- Grid / batteries: 0 msec
- Inverter / bypass: 0 ms
- Inverter / ECO
- Waveform (Battery mode): Pure sine wave
- Power factor: 0.9% at nominal input voltage
- Energy efficiency AC mode: 89%
- Battery mode energy efficiency: ≥ 86%
- Battery type and quantity: 20 12V 9Ah batteries
- Typical recharge time: 9 hours recharging 90% capacity
- Charging current: 1 A ±1% (max)
- Autonomy: depends on the application
- Output socket: power strip
- Indicators: LCD display. UPS status, charge level, battery level, input/output voltage, discharge time and faults
- Alarm:
- Battery mode: Sound every 4 seconds
- Low battery: Sound every second
- Overload: Sound every 2 seconds
- Fault: Continuous beep
- Dimensions: 626x250x750mm
- Net weight: 124 Kg
- Humidity: 20-90% relative humidity (non-condensing)
- Working temperature: 0..40ºC
- Noise level
- Management software: Supports Windows® 2000/2003/XP/Vista/2008/7, Linux, Unix and MAC
(*) For further technical characteristics please download the product datasheet.
(*) On-site warranty offered by the manufacturer, only for the Spanish peninsular territory.
