Bearing 625 5x16x5mm ISB
Bearing 625 5x16x5mm ISB

Bearing 625 5x16x5mm ISB

€0.75 Tax included

€0.62 tax excl.

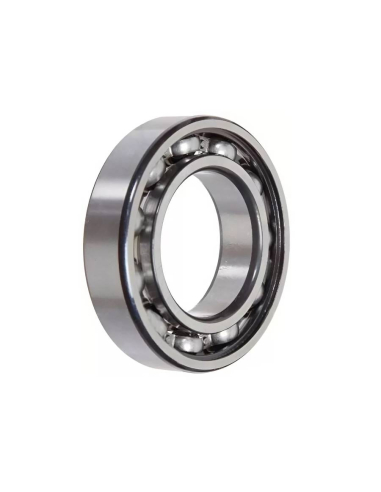

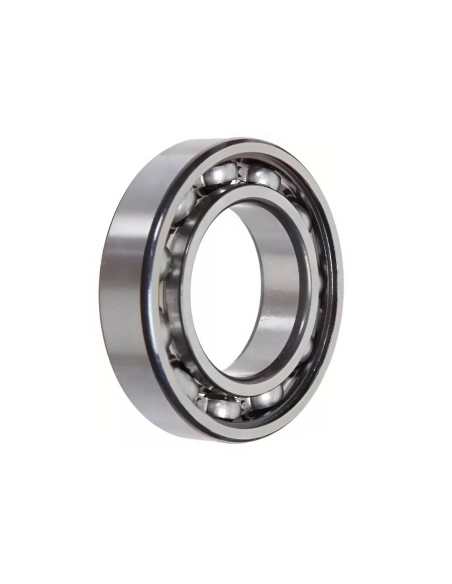

Open bearing miniature series dimensions 5x16x5mm. Rigid single row ball bearing, without sealing, made of steel.

Ref: 625

No queries yet, leave the first!
Privacy
Shipments
Returns


625 rigid ball bearing without sealing, according to DIN 625-1, one row ball, miniature series, made of steel.

Dimensions: 5x 16x5mm.

Rigid single row ball bearing, miniature series according to DIN 625-1, without any kind of opturing (open).

This type of bearings are suitable for operating temperatures up to +120oC.

Dimensions: .5x.16x5.

For other references or measures consult.

Dimensiones rodamientos

Features:

  • Material: hardened steel.
  • Dimension d: 5mm.
  • Dimension D: 16mm.
  • Dimension B: 5mm.
  • Shutter: NO.
  • Dynamo load capacity Cr (N): 1320.
  • Static load capacity C₀r (N): 440.
  • Limit speed ng (min⁻1): 43000.
  • Weight: 0.005Kg
