Bearing 3202-ZZ FAG 15x35x15.9 mm
Bearing 3202-ZZ FAG 15x35x15.9 mm

Bearing 3202-ZZ FAG 15x35x15.9 mm

€36.43 Tax included

€30.11 tax excl.

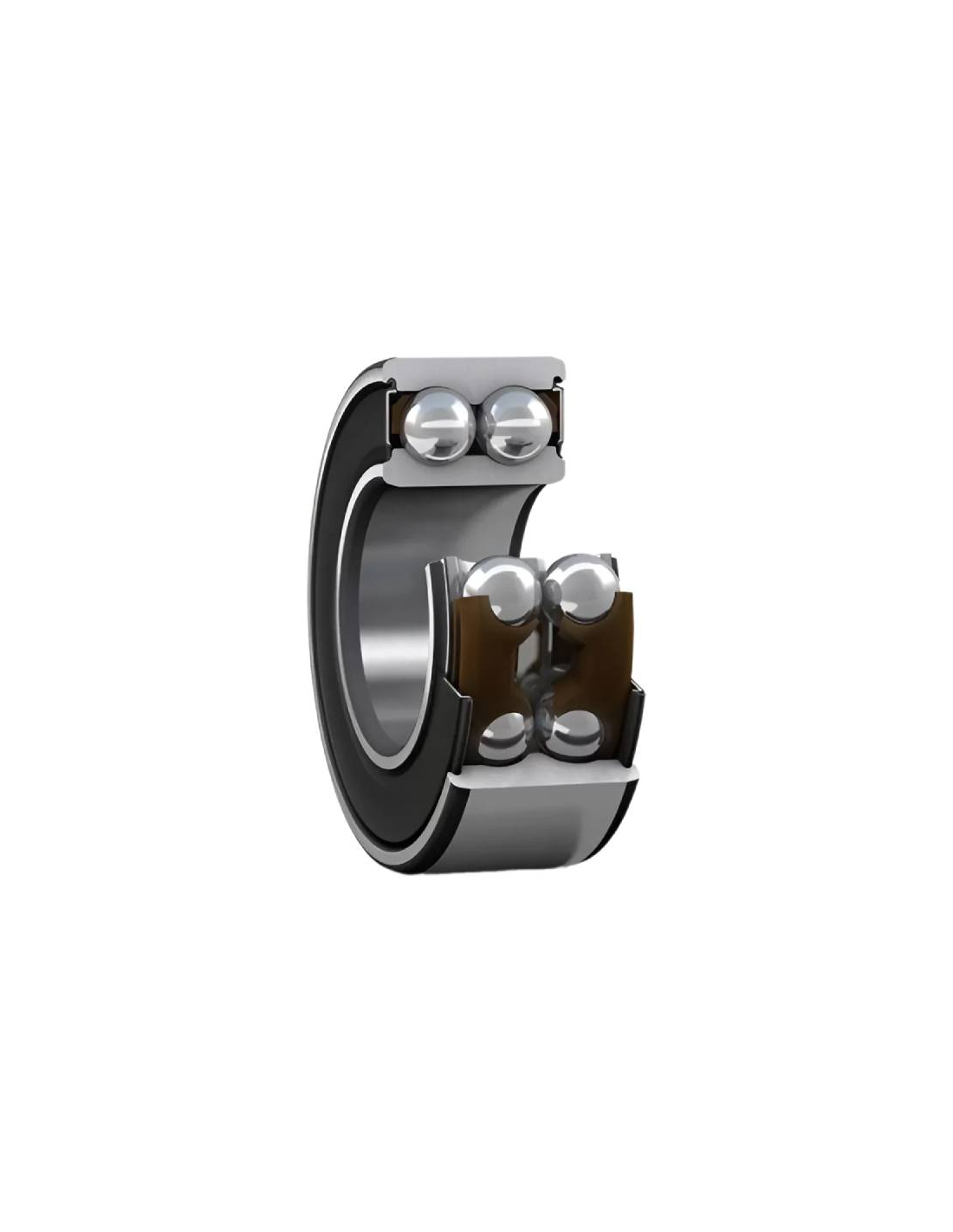

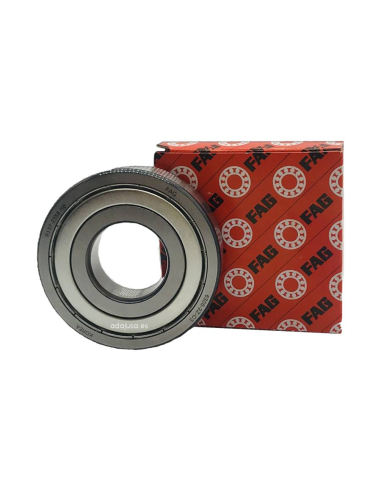

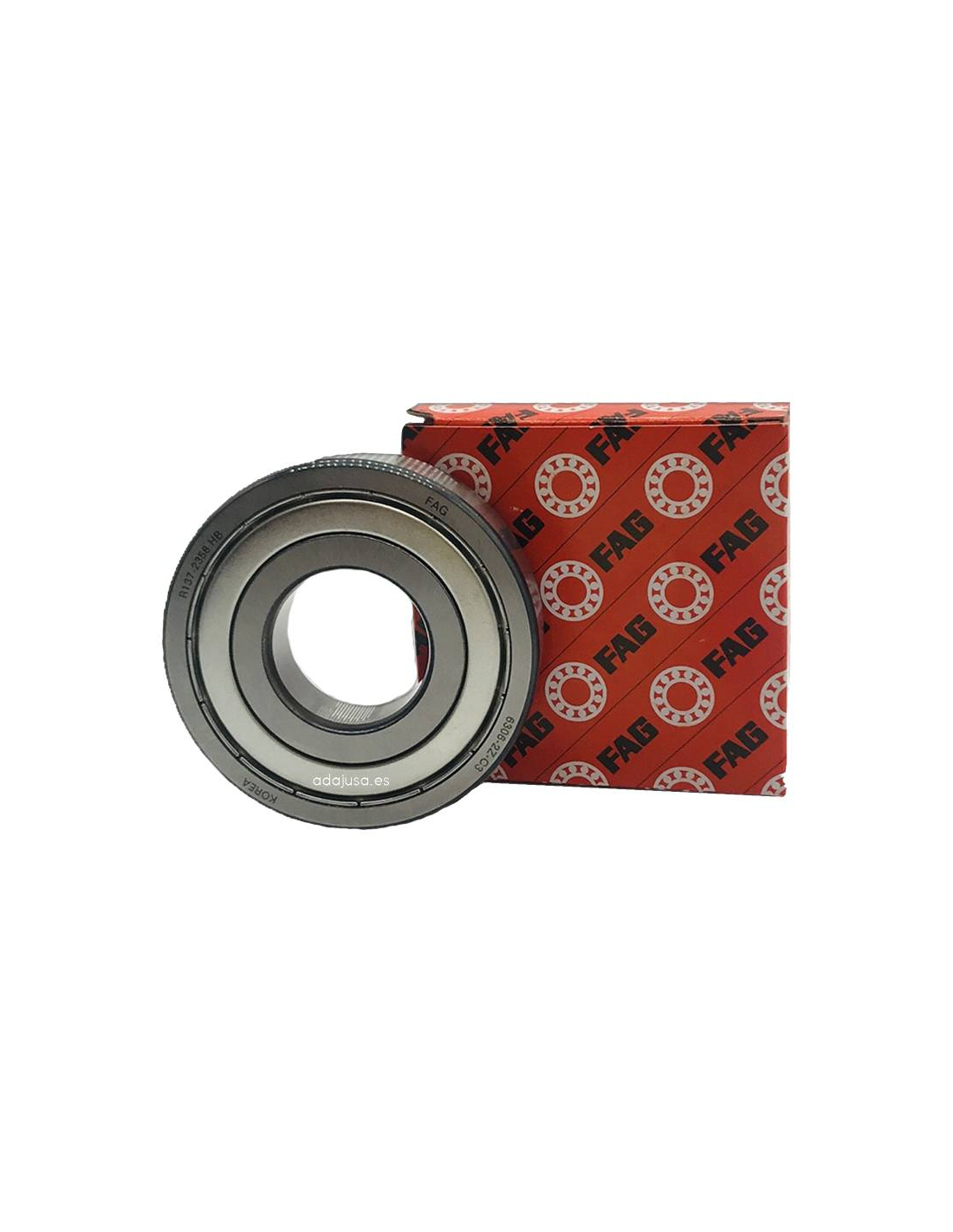

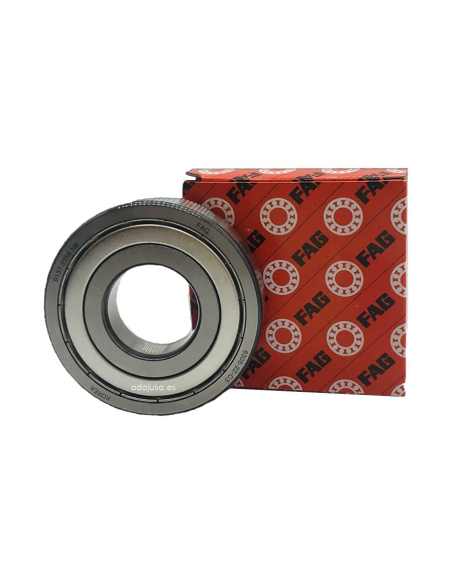

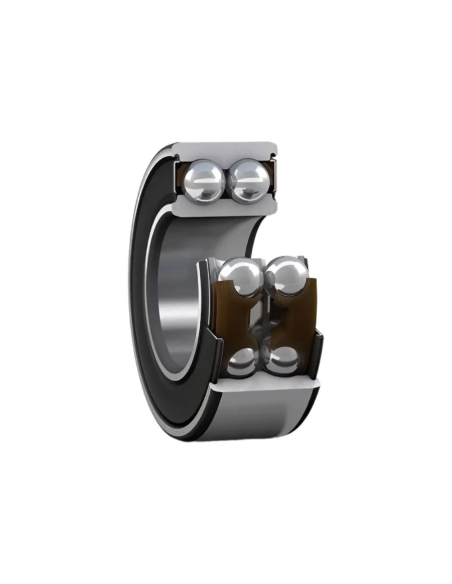

Ball bearing 3202-ZZ double row angular contact,dimensions 15x35x15.9mm, sealed with metal caps for closure (ZZ) on both sides and cages in polyamide

Brand FAG.

Ref: 3202 B-2ZTVH

Logo-FAG

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

No queries yet, leave the first!


Angular contact ball bearing, double row, 3202-ZZ series according to DIN 628-3, two rows of balls, sealed with metal protective caps for closing both sides. are already supplied lubricated. Polyamide cage.

This series of bearings with 2Z suffix (ZZ) are pro-protective caps on both sides of the bearing.

Double row angular contact ball bearings support high radial loads and axial forces in both directions, the contact angle of this series is 25o.

This type of bearings are suitable for operating temperatures from -30oC to +150oC.

Dimensions: .10x.30x14.

For other references or measures consult.

Dimensiones doble hilera contacto angular

characteristics:

  • maker FAG
  • Reference: 3202 B-2ZTVH
  • Material: Tempered steel.
  • Dimension d: 15mm.
  • Dimension D: 35mm.
  • Dimension B: 15.9mm.
  • Sealing: metal ZZ (2Z) type on both sides.
  • Dynamo load capacity Cr (N): 11800.
  • Static load capacity C₀r (N): 7100.
  • Contact Angle: ἀ-25o
  • Limit speed ng (min⁻1): 14000.
  • Weight: 0.067Kg.
Material for professional use, install in compliance with the regulations in force at the place of installation.
