Bearing 3200-ZZ 10x30x14mm ISB

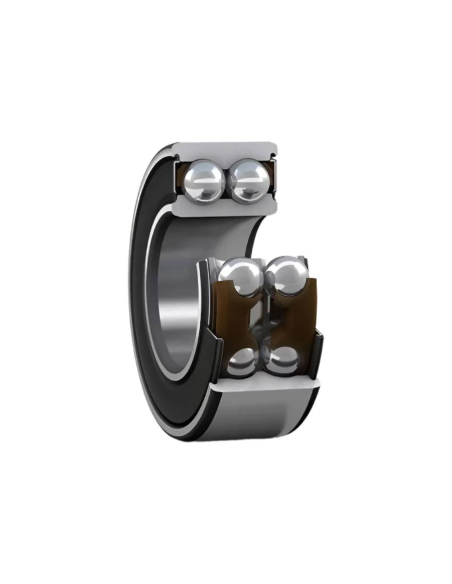

Angular contact ball bearing, double row, 3200-ZZ series according to DIN 628-3, two rows of balls, sealed with metal protective caps for closing both sides. are already supplied lubricated.

This series of bearings with 2Z suffix (ZZ) are protected from protective caps on both sides of the bearing and with cage made of PA66 polyamide

Double row angular contact ball bearings support high radial loads and axial forces in both directions, the contact angle of this series is 25o.

This type of bearings are suitable for operating temperatures from -30oC to +150oC.

Dimensions: .10x.30x14.

For other references or measures consult.

Features:

• Manufacturer ISB.
• Reference: 3200-ZZ ATN9.
• Material: Tempered steel.
• Dimension d: 10mm.
• Dimension D: 30mm.
• Dimension B: 14mm.
• Sealing: metal ZZ (2Z) type on both sides.
• Dynamo load capacity Cr (KN): 7.46.
• Static load capacity C₀r (KN): 4.2.
• Contact Angle: ἀ-25o
• Limit speed ng (min⁻1): 22800.
• Weight: 0.051 Kg.
