Bipolar connection distributor 15 outputs 100A

€10.58 Tax included

€8.74 tax excl.

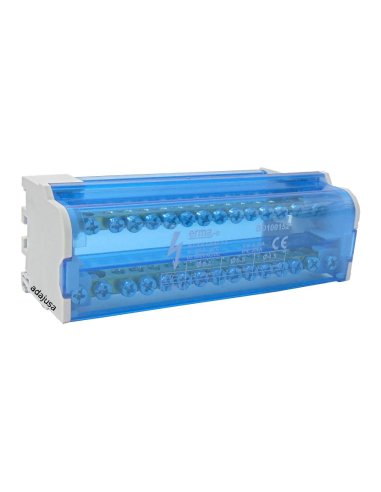

Two-pole electrical connection distributor (1 pole + neutral) with 15 outputs, suitable for currents up to 100A, terminals made of brass with steel screws on a polyamide support and protected with a polycarbonate cover. Screw fixing on panel or DIN rail. Compact size.


Reference: BD100152

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!


Two-pole electrical connection distributor, with 15 outputs, for use in electrical distribution cabinets, favoring wiring and improving the distribution of the electrical load and the connection.

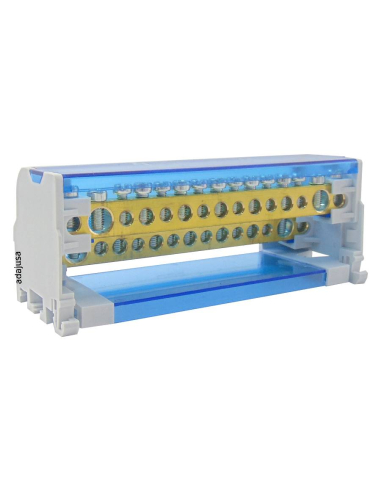

It has 2 brass distribution bars with steel screws, distributed in 2 heights and various orientations to facilitate connection. It allows the possibility of incorporating a neutral extension bar, which is fixed to the distributor simply with a screwdriver .

Easy and fast mounting both on DIN rail and screwed. The distributor is protected by a transparent polycarbonate cover.

The connection bar has 15 outputs:

  • 2 of Ø8.5mm for cables 10mm² to 25mm²
  • 6 of Ø4.5mm for cables 0.75mm² to 4mm²
  • 7 of Ø5.5mm for cables 1.5mm² to 6mm²

Technical characteristics:

  • Manufacturer/Supplier: Gaestopas
  • Manufacturer reference: BD100152
  • Type: bipolar (1P+N)
  • Rated voltage: 500Vac/dc
  • Rated current: 100A
  • Icw: 4,5kA
  • Ipk: 20kA
  • Number of holes per bar: 15
  • Holes per pole (holes x Ø mm): 2x8.5 / 6x4.5 / 7x5.5
  • Dimensions: 50x130x50mm
  • Free of halogens
  • Flammability rating UL94-V0
  • CE, ROHS Certification
  • Standard: IEC 60947-7-1


Material for professional use, install in compliance with the regulations in force at the place of installation.
