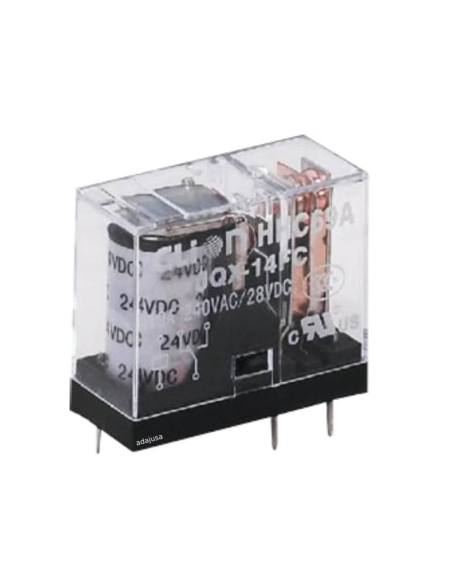

Miniature relay 1 contact 10A coil 230VAC
Miniature relay 1 contact 10A coil 230VAC

Miniature relay 1 contact 10A coil 230VAC

€6.95 Tax included

€5.74 tax excl.

230VAC miniature relay, 1 10A switched contact (SPDT), for general purpose and industrial applications, ability to handle medium loads.

To be mounted on printed circuit (PCB) or in a socket on DIN rail.

The socket (base) to mount this relay has to be 1 contacts.

Ref: JQX-14FC 1Z 230VAC 10A

Esquema eléctrico relé 1 contacto

No queries yet, leave the first!
Privacy
Shipments
Returns


Miniature relay of 230VAC, with 1 switched type contact (SPDT), with pins to be welded directly on printed circuit (PCB) or to be inserted on the sling. Designed for general purposes and very suitable for applications on maneuver panels, machine tools in general, direct load switching and switching maneuvers.

Technical details:

  • Manufacturer/Supplier: Denor
  • Ref: JQX-14FC 1Z 230VAC 10A
  • Number of contacts: 1 switched.
  • Dimensions: 29x13x25.5mm.
  • Mounting: on PCB or snuk.
  • Working voltage: 230VAC.
  • Contact capacity: 10A 250Vac, resistive load.
  • Coil power: 0.53W.
  • Response time: 20 mSec.
  • Equivalent type: JQX-14FC-1C-10A AC230.

The socket (base) to mount this relay has to be 1 contacts.

Dimensiones relé miniatura 1 contacto

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)
