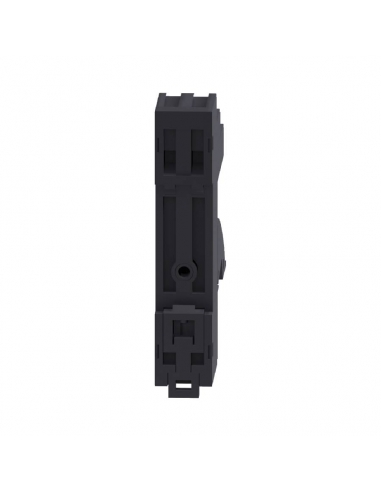

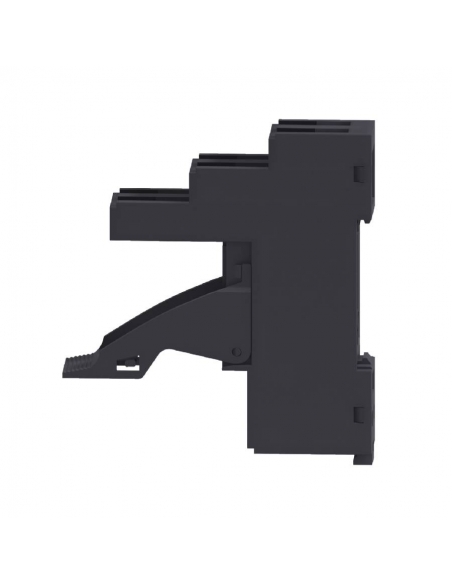

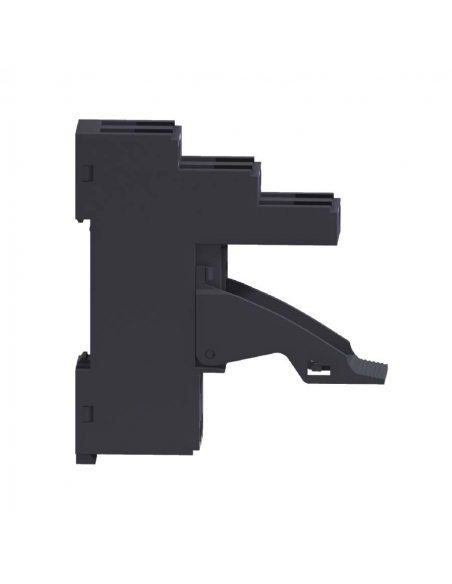

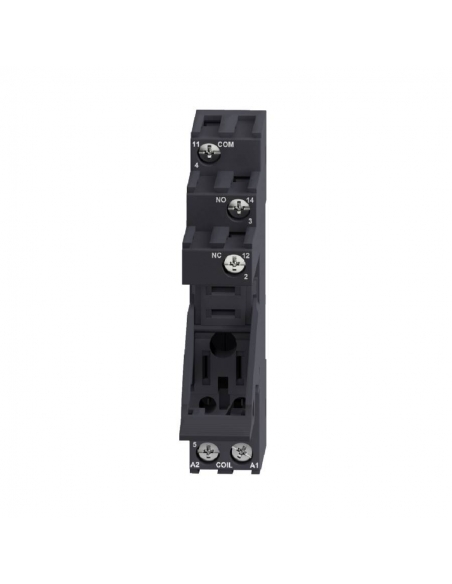

Base for relay 1 contact Series RXG SCHNEIDER

Base for relay 1 contact RXG SERIES - SCHNEIDER

Base for relay 1 contact RXG SERIES - SCHNEIDER

Name: Base for relay 1 contact RXG SERIES - SCHNEIDER
Brand: Schneider
SKU: RGZE1S35M
Price: 3.4364 EUR
Availability: InStock

€3.44 Tax included

€2.84 tax excl.

Base for 1 contact, 10A relay with Faston type flat pin and 5 pins for SCHNEIDER RXG1XXX relays. Mounting on 35mm DIN rail or panel mounting.

Reference: RGZE1S35M

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated .

No queries yet, leave the first!

Privacy

Shipments

Returns

Base for 1 contact and 10A relay, for DIN rail mounting by clip or panel mounting by screw. Faston type flat pin shape. Connection by screw connector.

Includes clamp plastic clamp that allows the locking of the relay and easy removal of the same.

Compatible with SCHNEIDER relays RXG-HARMONY series of 1 contact RXG1XXX

Technical features:

Manufacturer: SCHNEIDER
Part number: RGZE1S35M
RXG - HARMONY SERIES
Holding capacity: 1 contact
Rated current: 10A
Rated insulation voltage: 250V
Rated operating voltage: 250V
Operating temperature: -40 to ^+70oC
Degree of protection: IP20
Screw connection
Screw type: M3
Compatibility of 1" SCHNEIDER RXG-HARMONY series relays contact

Dimensions (mm/in)

(1) Clamp maintenance

For further information, you can download the data sheet by clicking on the "Attachments" tab.

Material for professional use, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)

Data sheet RGZE1S35M

Download (124.8KB)
