Mini thermal relay regulation 9A to 13A - LS

€22.13 Tax included

€18.29 tax excl.

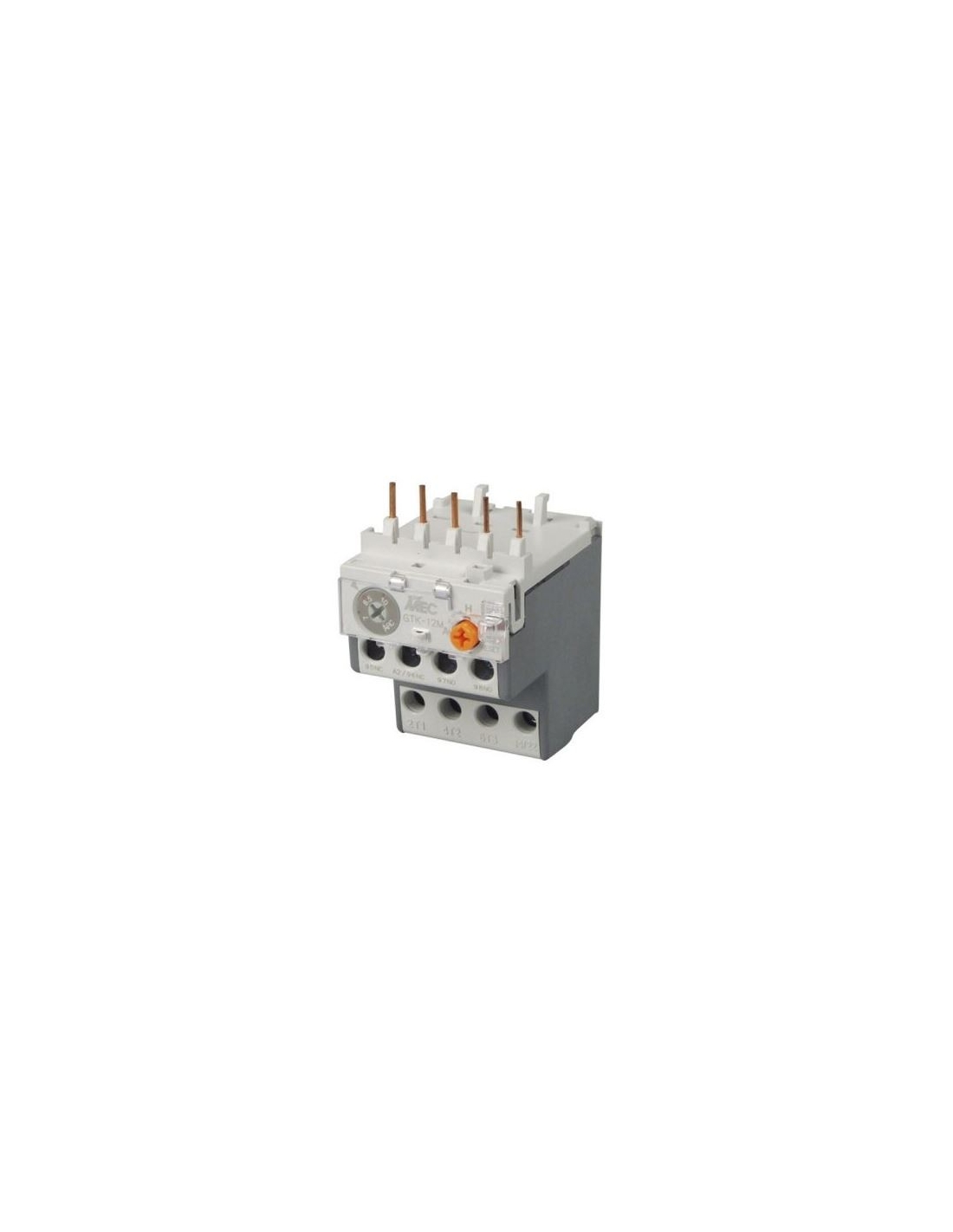

Three-phase thermal relay for mini contactor, offers overload protection of electric motors. The regulation of the thermal relay is between 9A to 13A.

Reference: GTK-12M 11A 3H.




LS logo LG industrial Systems

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!


Mini three-phase thermal relay for protection of electric motors against overloads. The thermal relay has 2 independent auxiliary contacts (1 open and one closed). The reset can be selected to occur automatically or manually by pushbutton located on the body of the thermal relay. It has ambient temperature compensation.

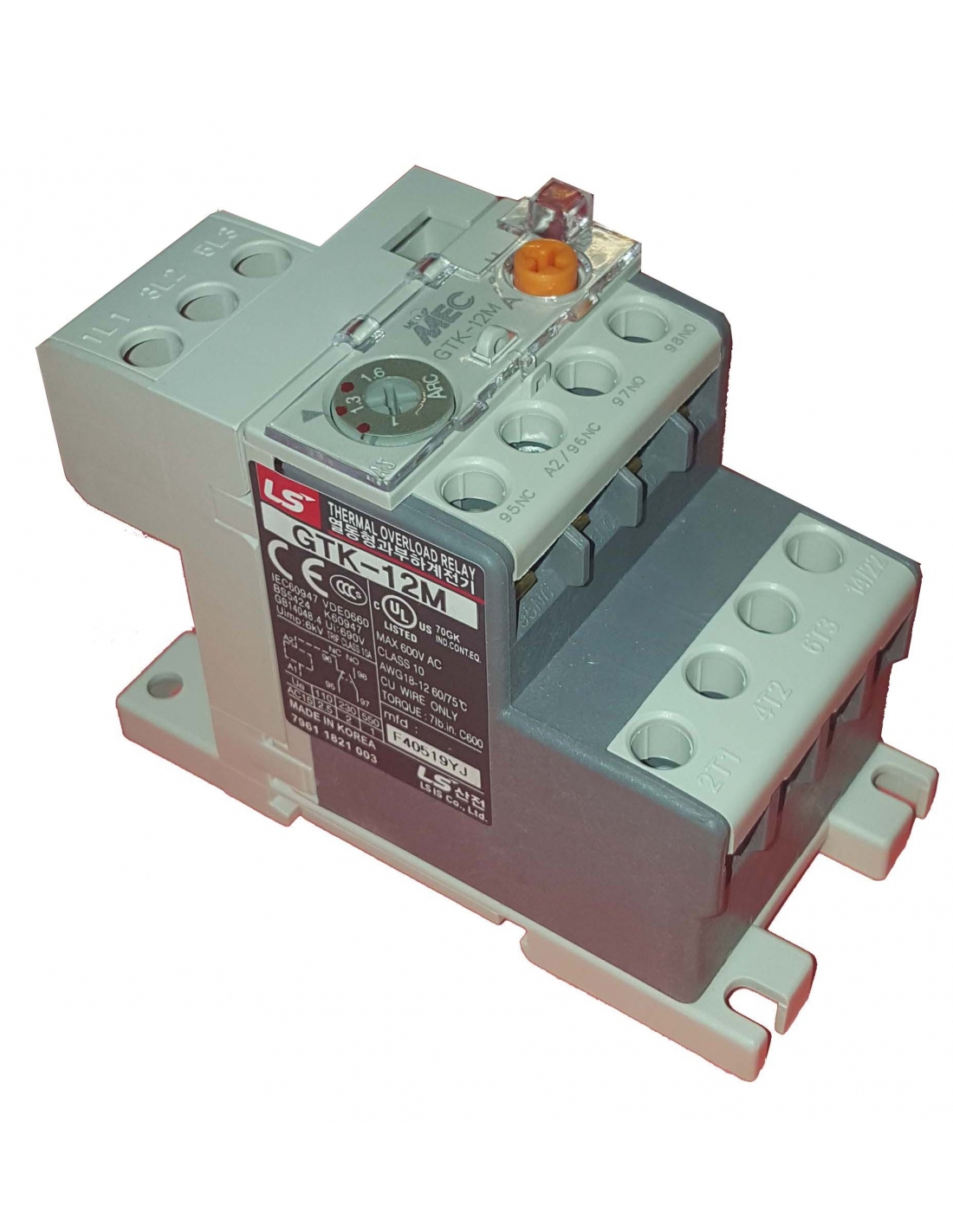

The thermal relay is designed to be coupled directly to the outlet of a contactor, or mounted on the terminal with DIN rail coupling (included in the supply).

Thermal relay features:

  • Manufacturer: LG - LS.
  • Reference: GTK-12M 11A 3H
  • Regulation range: 9A to 13A.
  • Rated voltage Ue: 690V.
  • Insulation voltage: 690V.
  • Maximum Uimp peak voltage: 6kV.
  • Kind of shot: 10.
  • Compatible with GMC and GMD mini-sensors from 6 to 16A.
  • Mounting; integrated on the contactor, or on DIN rail using the supplied base.
  • Ambient temperature compensation between -5 and 40oC.
  • Weight: 0.1 Kg.

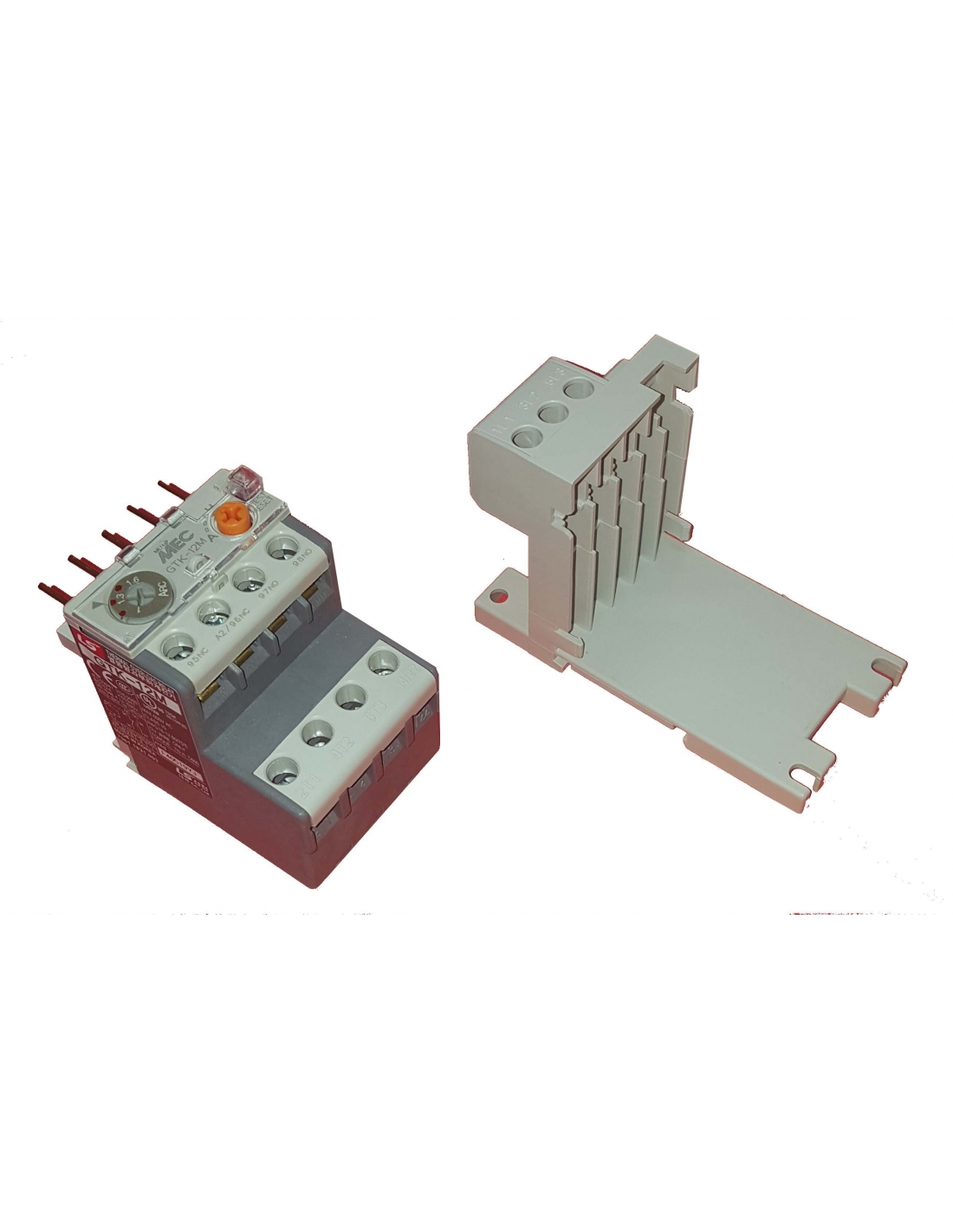

Attention: The mounting base must be removed for mounting on the contactor.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
Material for professional use, install in compliance with the regulations in force at the place of installation.
