EASY-LEVEL plug-in level control Toscano / Adajusa
EASY-LEVEL plug-in level control Toscano / Adajusa

EASY-LEVEL Plug-in Level Control - Toscano

€134.38 Tax included

€111.06 tax excl.

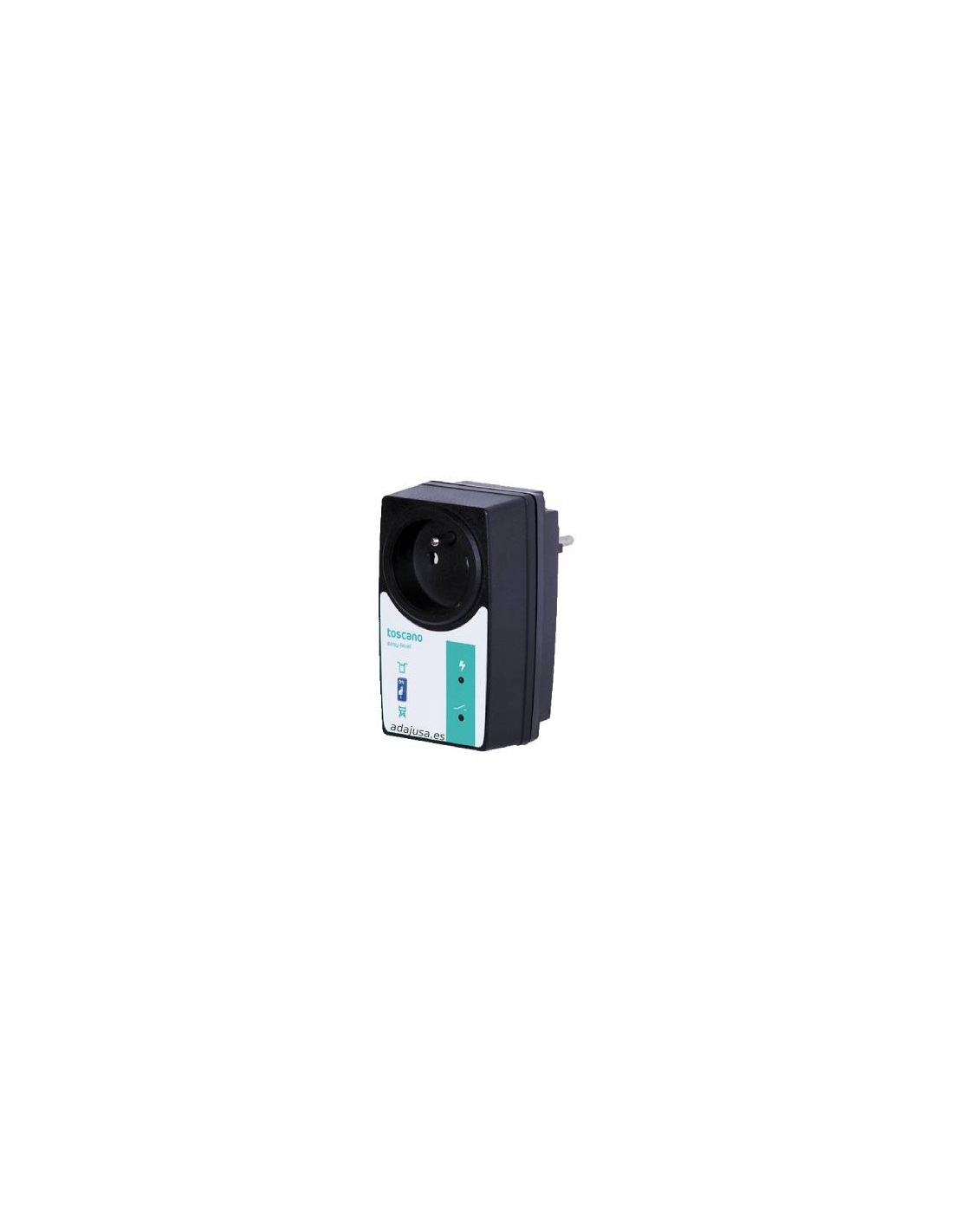

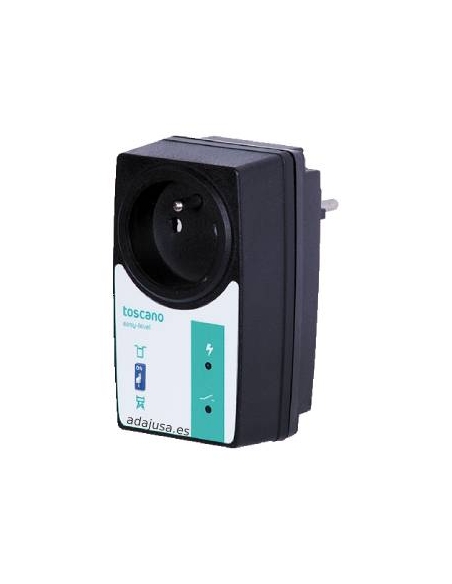

Pump controller with hydrolevel. Control of well emptying or tank filling by conductive probe or buoys. Pluggable in standard power outlet.

Reference: EASY-LEVEL



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Level control relay by conductive probe(s) or buoy switch(s).

Control of Well (emptying) or Tank (filling). Possibility of operation with 2 probes, 1 timed probe, 1 buoy or 2 buoys. Plug-in module in a standard power outlet.



Technical specifications:

  • Manufacturer: Toscano
  • Reference: EASY-LEVEL
  • Signage: Water shortage pilot, voltage pilot
  • Control input: Probes or buoys
  • Output: Base direct plug to pump
  • Working voltage: 230Vac - 50/60Hz
  • Contact utilization: 12A - 250Vac
  • Power consumption: 1.8VA
  • Permissible voltage variations: +10%...-20%
  • Reset time: Fixed 15 minutes
  • Response sensitivity: 60 to 100 Kohm
  • Voltage in probes/buoys: 12Vac / 50Hz
  • Intensity in probes/buoys: 1.2 mA max. in short circuit
  • Maximum pump intensity: 12A
  • Working temperature: -10ºC to +60ºC
  • Degree of protection: IP40
  • Dimensions: 62 x 123 x 73 mm
  • Weight: 240 gr



Operation:







To expand the information, you can download the data sheet by clicking on the "Attachments" tab.

Material for professional use, install in compliance with the regulations in force at the place of installation.
