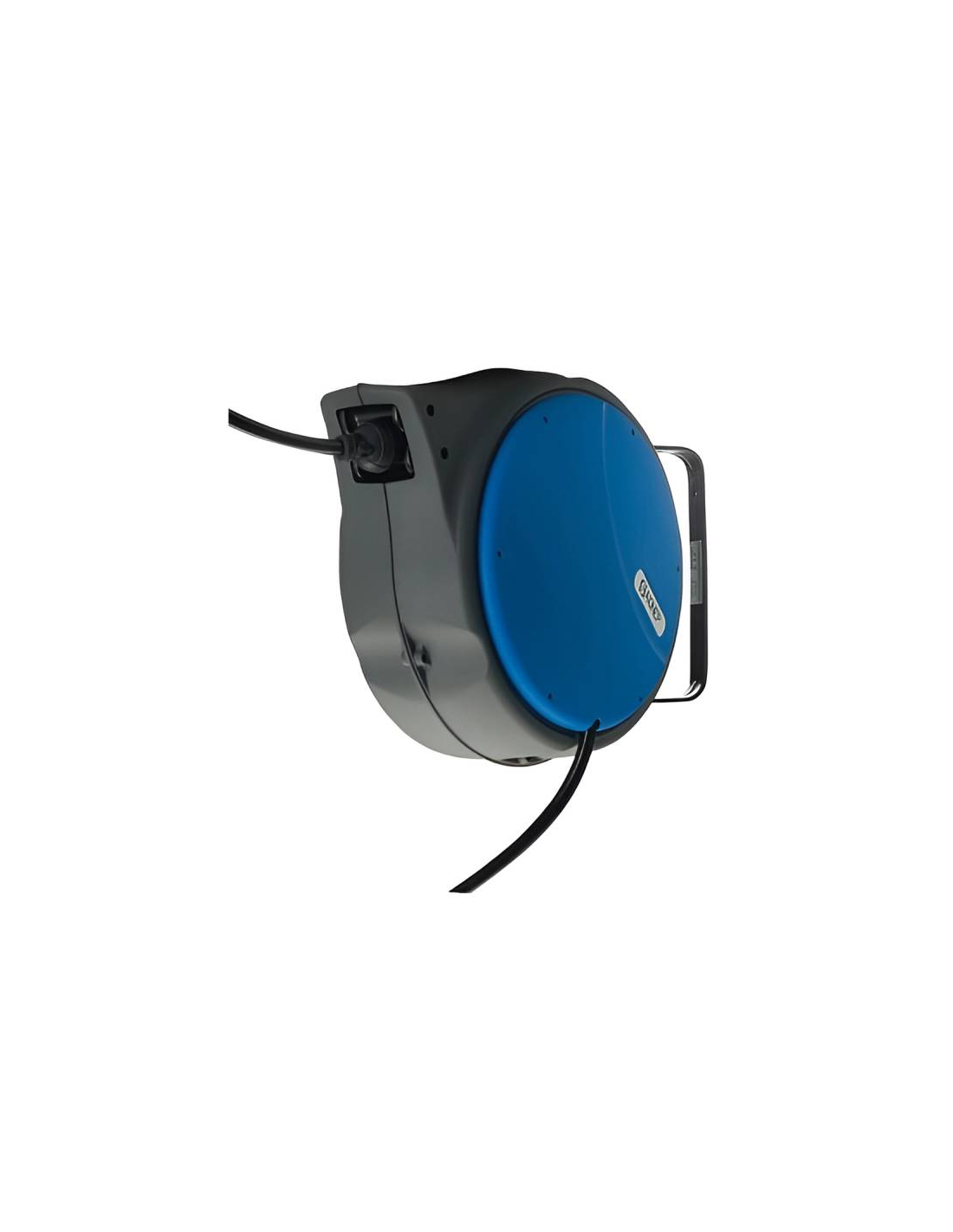

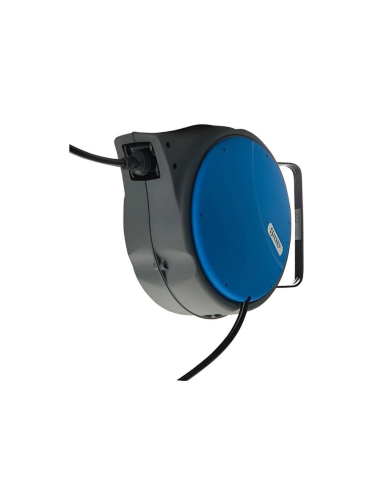

Automatic hose reel or hose reel for wall or ceiling mounting, includes flexible tube of polyurethane with outer diameter 15mm and inner diameter 10mm, length 15+1 meters with 3/8 male outlet fitting and 1.5 meters tube for the power supply.
By means of a recovery spring it allows to automatically collect the tube or hose progressively and adjust it to the desired length for a comfortable use and handling, thus avoiding that it remains lying on the floor in workshops and industries, thus extending its useful life and leaving the work area clear. It has a stop stop that allows to define or fix the length of the tube that can be left outside the casing (without winding) when the tube collector is not in use, the position of this stop stop stop can be easily modified manually.
Housing made of high resistance technopolymer and metal support for a comfortable and safe fixation on wall or ceiling, and ideal to avoid falls in working environments; rotating support that allows the orientation of the tube according to the desired direction of use, thus facilitating its use to the operators. Ideal for powering portable pneumatic tools, proximity work...in workshops and industrial environments.
Characteristics:
- Manufacturer: Aignep
- Part number: 90825L
- Material for tube collector: Technopolymer
- Pneumatic tube material Polyurethane
- Tube size: 10x15mm
- Outer tube diameter: 15mm
- Tube inner diameter: 10mm
- Tube length: 15 + 1m
- Length of feeding tube: 1,5m
- Outlet fitting: 3/8 M
- Inlet fitting: No fitting
- Fluid: Air
- Maximum pressure: 15bar
- Temperature: -5 C to +40 C
- Flow rate at 6 bar: 610 Nl/min
- Weight: 8Kg
Material for professional use, install in compliance with the regulations in force at the place of installation.
