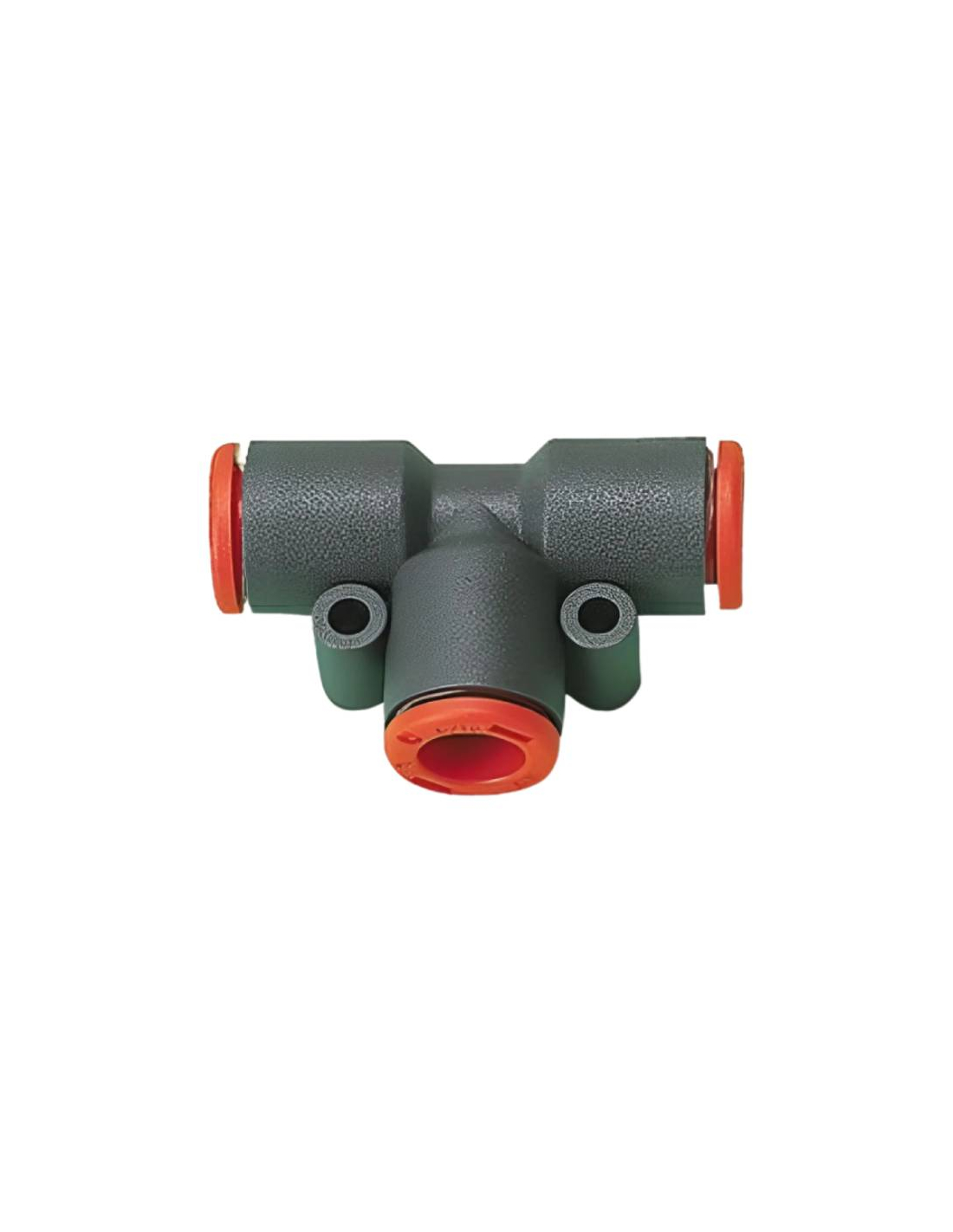

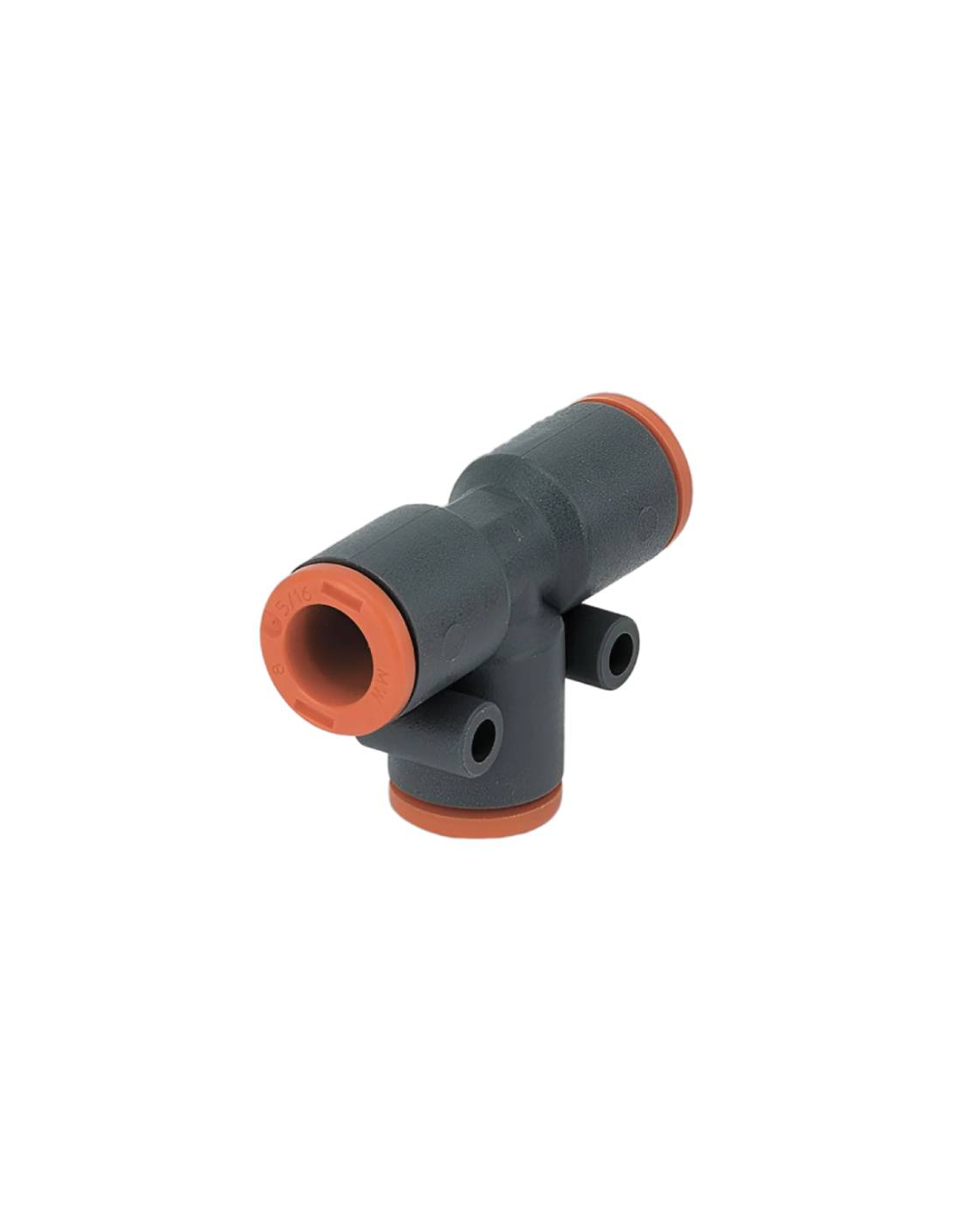

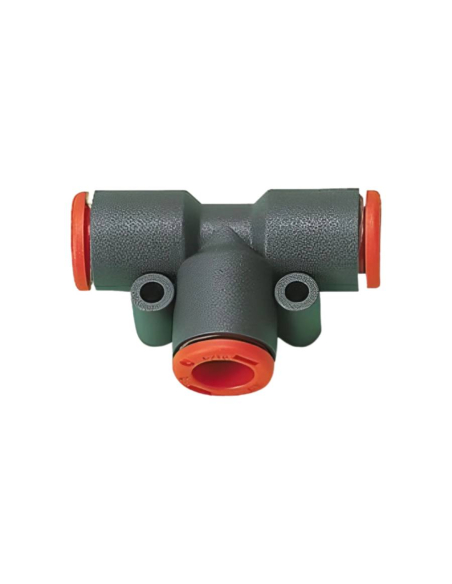

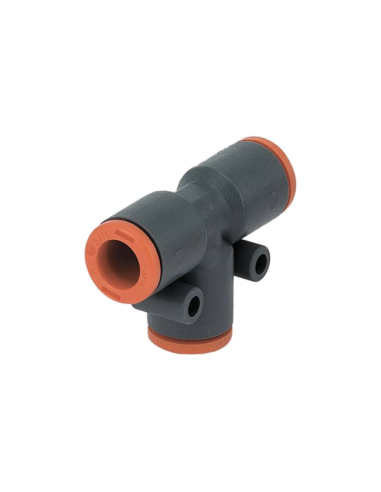

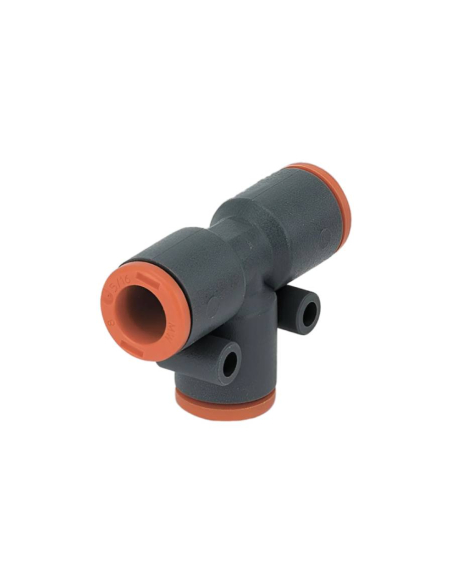

Racor T intermediate tube 12 instantaneous - Metal Work

Racor "T" automatic for ØExterior tube of 12mm., quick connection, manufactured in high quality technopolymer. Very simple and effective connection that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention; the fastening spring, turns on the tube without engraved or deforming it thus allowing greater simplicity in the operation of connection or disconnect the racor of the tube. In the fittings the racor ring has slots for the screwdriver to facilitate disconnection in applications inaccessible to the fingers.

• Manufacturer: Metal Work.
• Manufacturer reference: 2022006.
• Øexterior of the tube: 12mm.
• Fluid: Vacuum - Compressed air.
• Pressure of use: -0.99 bar to 12 bar.
• Material: Technopolymer.
• Retention board: NBR.
• Fastening spring: stainless steel.
• Working temperature: -20ºC to +60ºC.

For other references see.

Material for professional use, install respecting the regulations in force at the place of installation.
