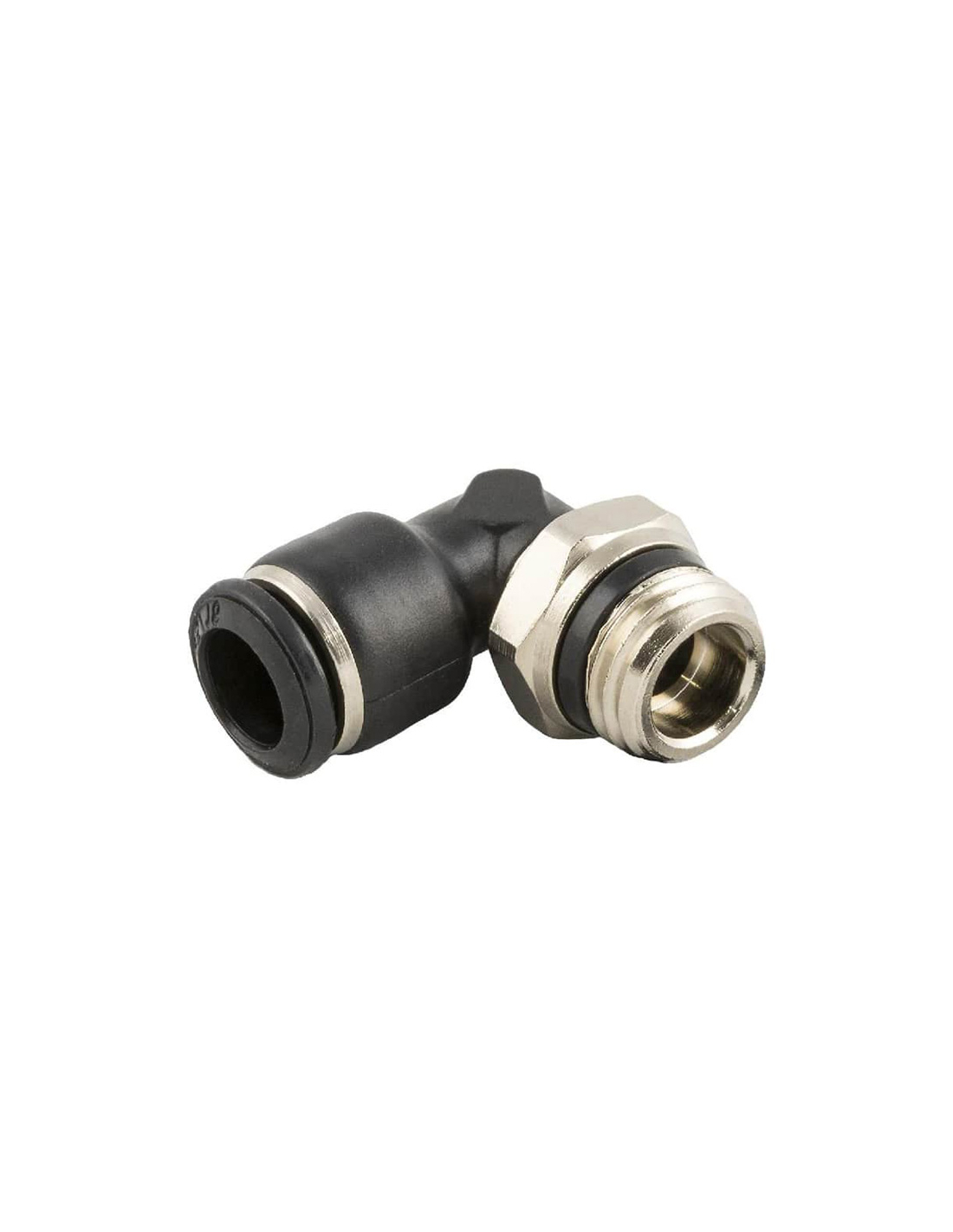

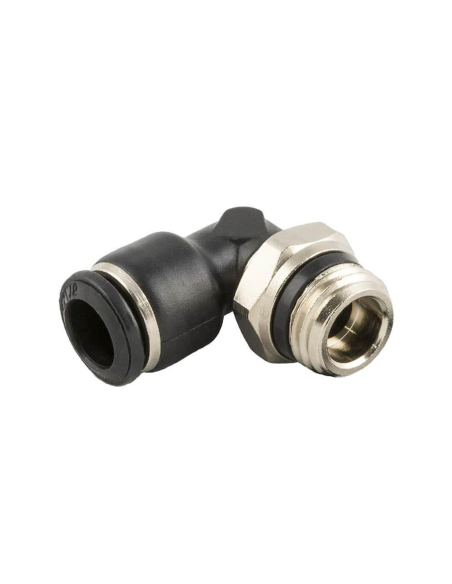

Tapered male swivel elbow fitting (short) 3/8 pipe 12mm Series 55000 - Aignep

Swivel elbow fitting conical male thread (short) 3/8 for 12mm tube with metal nuts included, made of technopolymer and nickel-plated brass, the tube extraction ring in acetal resin. The connection is very efficient simple and allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention; the clamping spring clamps the tube without deforming it, thus allowing greater simplicity in the operation of connecting or disconnecting the fitting from the tube.

This fitting is suitable for robotics, automotive, textile industry, packaging, handling, compressed air circuits, industrial water and vacuum.

Technical characteristics:

• Manufacturer: Aignep.
• Part number: 55111 12 3/8
• Male conical thread (short): 3/8
• Outer tube diameter: 12mm
• Fluid: vacuum, compressed air and water
• Material: Technopolymer and nickel-plated brass
• Tube puller ring: acetal resin
• Seal of retention: NBR
• Clamping spring: stainless steel
• Pressure: -0,99 bar to 20 bar
• Working temperature: -20ºC to +80ºC
• Thread standard
  • Gas conical "UNIVERSAL SHORT"

Material for professional use, install in compliance with the regulations in force at the place of installation.
