€29.68 Tax included

€24.53 tax excl.

Push button complete with 2 discs (black and red), valve adapter and end-of-stroke valve normally closed with metal rear piston, for Ø4mm tube located at the rear.

metal work logo

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.



Push button with black and red disc, protected monostable for use with pneumatic limit switch valves with push button actuation

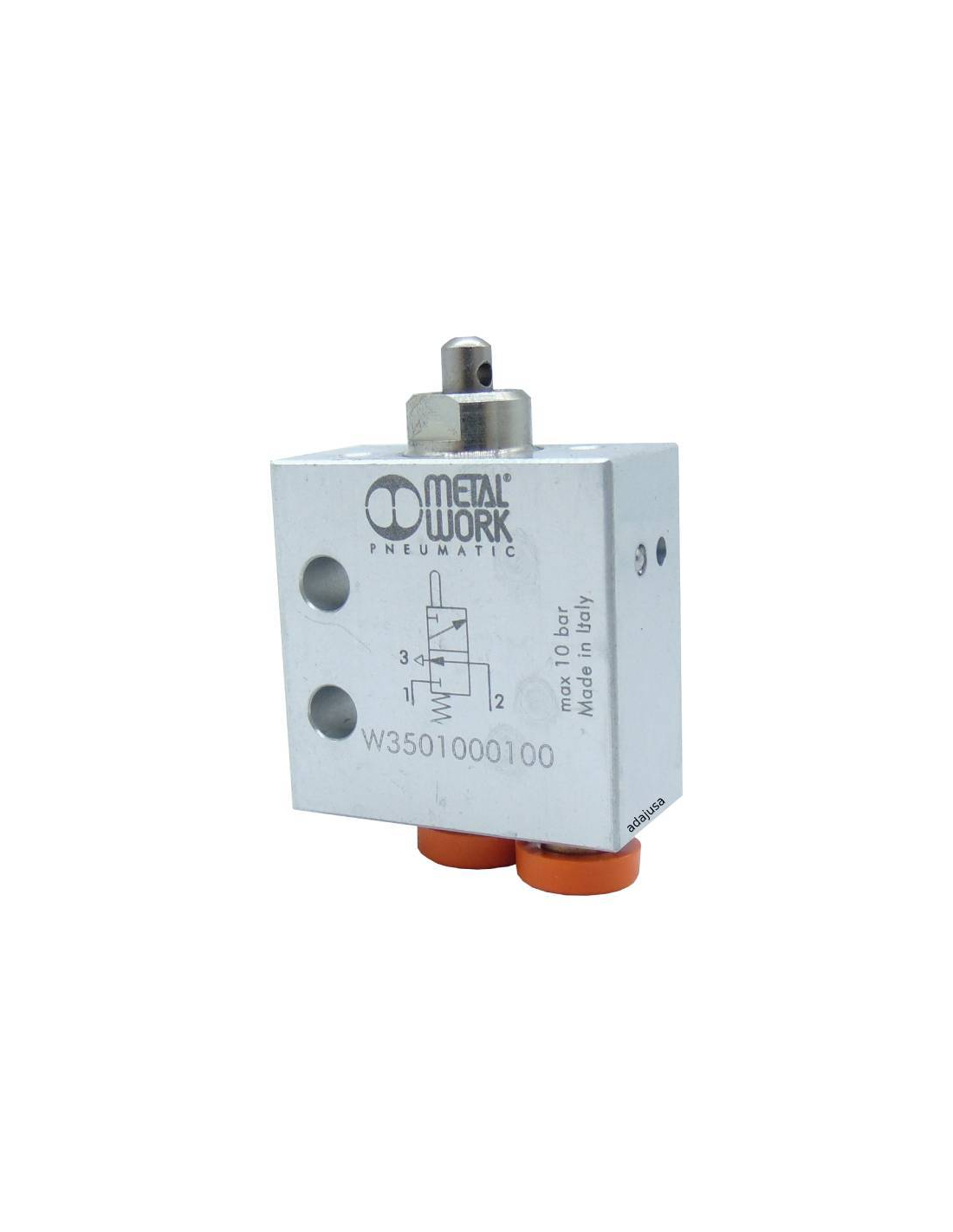

Pneumatic limit switch actuated by a metal piston, with integrated quick-connect fittings for a 4mm outer diameter tube. The state of the valve at rest is normally closed, that is, without pressing there is no air present at the outlet, the air cannot pass, when activated, it lets the air pass and there is pneumatic pressure at the outlet.


The supply includes:

    • push button body
    • Adapter
    • Nut
    • 2 discs (1 black color and another red color)

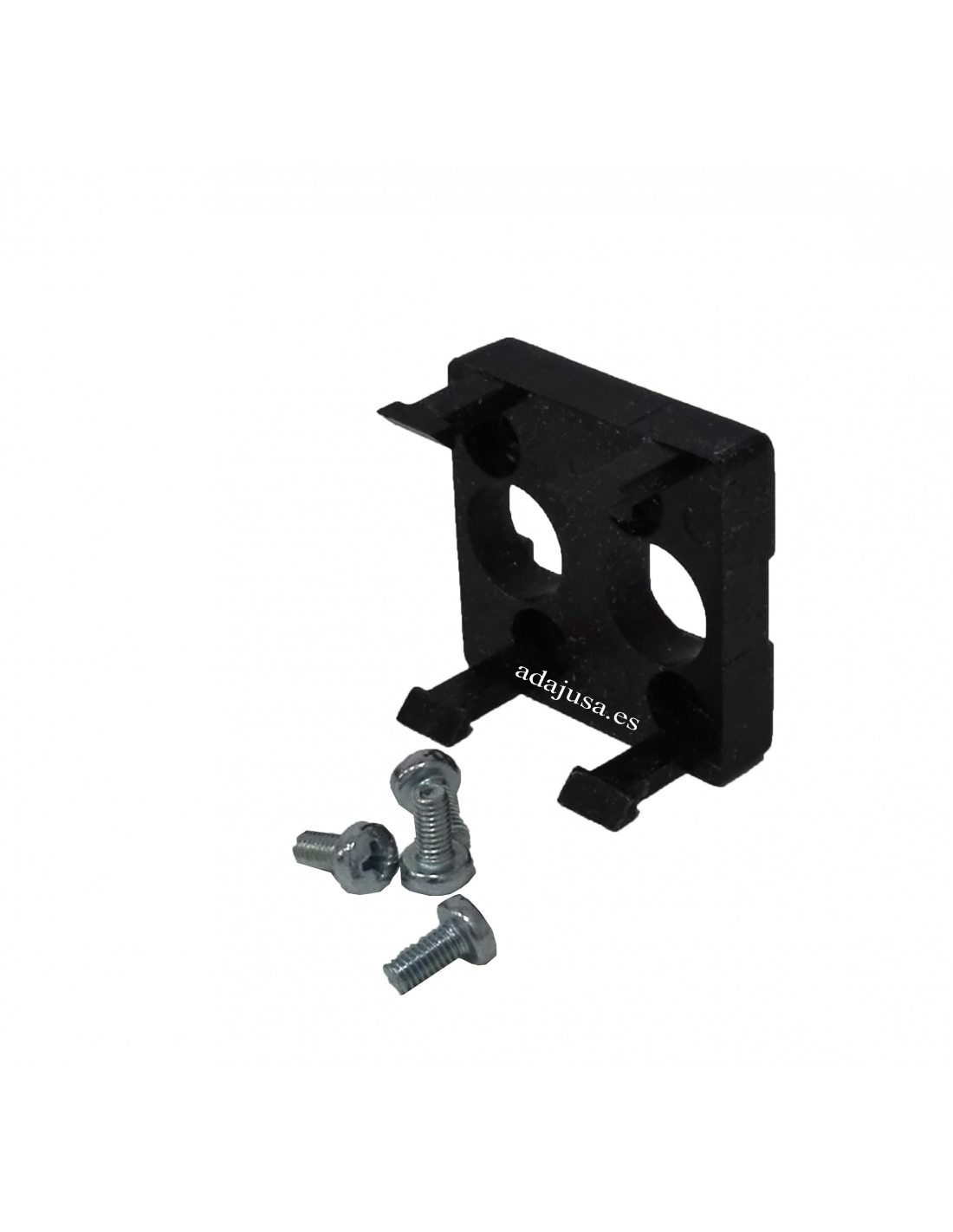

    • valve adapter
    • 4 screws
    • End valve NC front piston.

valve characteristics:

  • valve type: 3/2 Normally closed (NC).
  • Type of limit switch actuation: metal front piston.
  • Manufacturer reference: W3501000100 - VME-01 NC D.4
  • Material Type: Metallic
  • Fittings: quick for 4mm diameter tube located at the rear
  • Installation: in any position.

GRADES:
• To obtain the 5/2 pneumatic function, assemble a 3/2 NC and a 3/2 NO strut valve on the adapter.
• To obtain the pneumatic function 5/3 open centers, assemble two 3/2 NC prop valves on the adapter.
• To obtain the pneumatic function 5/3 centers under pressure, assemble two 3/2 NO prop valves on the adapter.

With the valve adapter you can fit up to two valves at the same time. The supply only includes one type of valve . If you wish, you can buy another valve separately to add it to the button.

dimensiones final de carrera neumatico pistón Nc racores traseros de 4



Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
