White open contact pushbutton (NA) complete
White open contact pushbutton (NA) complete

White open contact pushbutton (NA) complete

€1.69 Tax included

€1.40 tax excl.

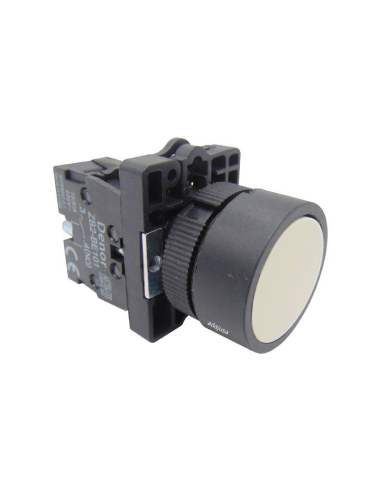

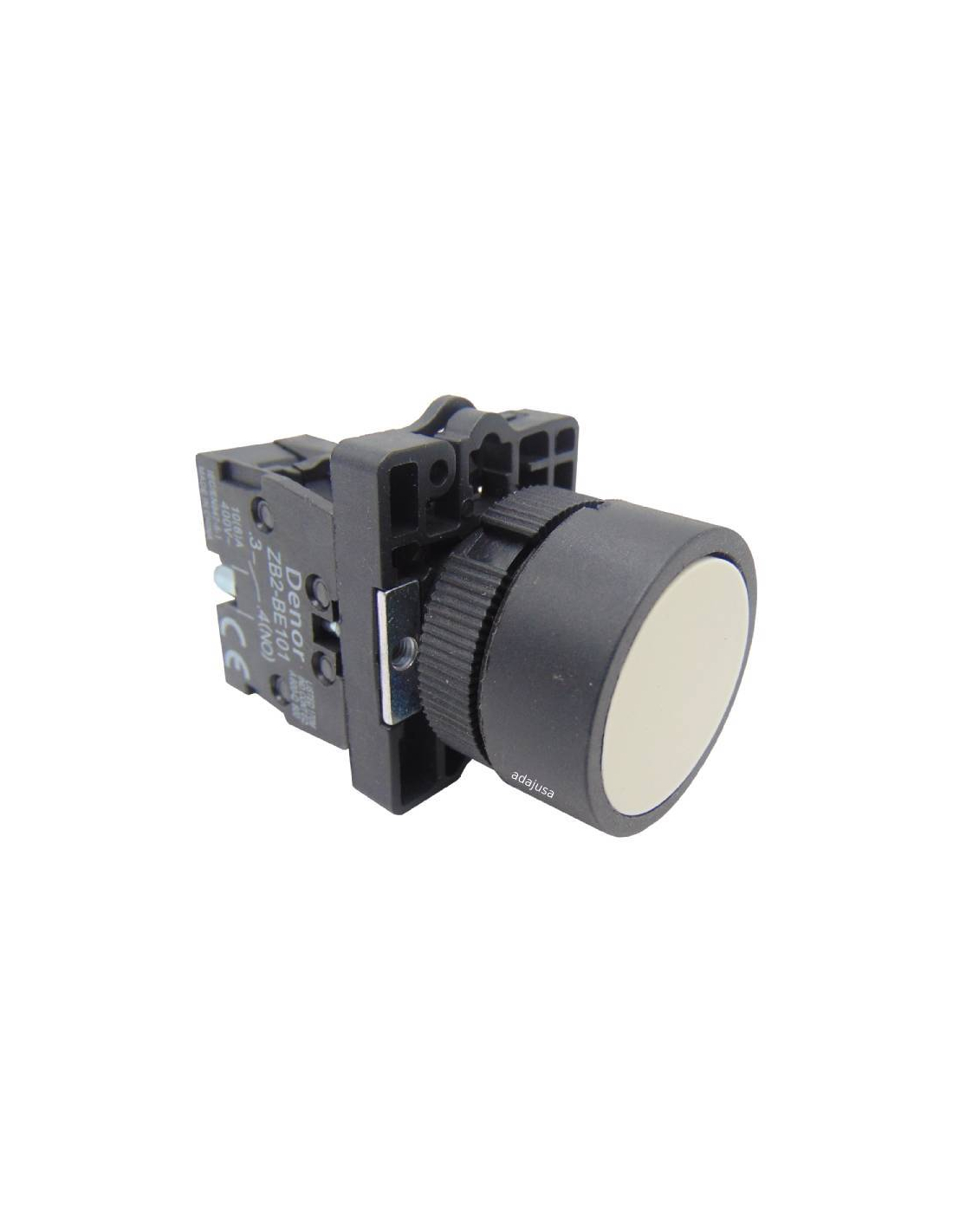

White industrialelectric push button with one open contact (NO). The electric push button can be mounted on 22mm through holes. The main use of the electric push button is the mounting on electrical control panels of machinery and on electrical control boxes in general. Made of plastic material.

The supply includes the complete push button with an open contact.

Part number: XB2-EA11


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


White industrial electric pushbutton with an open contact (NA) to be mounted on 22mm holes. The electric pushbutton is supplied with 1 contact, but additional contacts can be added, both open and closed. The electric pushbutton is often used as a pushbutton for machinery, motors and electrical equipment.

The electric pushbutton is designed for intensive applications where we need high operating reliability and ease of assembly. The electric pushbutton is made of high strength plastic material, allows to be installed on panel, electrical maneuvering cabinets and control boxes, for machinery, air conditioning, industry and applications in general. Electric pushbutton complies with IEC 60947

The supply includes the full electric pushbutton with an open contact.

This pushbutton can receive additional contacts, type XB2. A maximum of 4 contacts can be installed.

Electrical pushbutton features:

  • Manufacturer/Supplier: Denor
  • Reference: XB2-EA11
  • Electric pushbutton head color : White.
  • Electrical pushbutton head inscription : none.
  • Pushbutton mounting hole : 22mm.
  • Electrical pushbutton manufacturing material : Plastic.
  • Contact : 1 open (NA).
  • Nominal working intensity Ith: 10 A.
  • Nominal working intensity at 220 Vac: 4.5 A.
  • Maximum working voltage of the electric pushbutton: 415 Vac.
  • Contact resistance: 50 m.
  • Degree of pushbutton protection : IP-20.
  • Pushbutton regulation : CE, IEC 60947-5-1.

We have a wide range of control and signalling elements such as electric pushbuttons, selectors, emergency stop pushbuttons and signalling lights.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)
