M12 metal cable glands with nut

Name: M12 metal cable glands with nut
Brand: TRACON
SKU: MGF-12
Price: 1.1374 EUR
Availability: InStock

€1.14 Tax included

€0.94 tax excl.

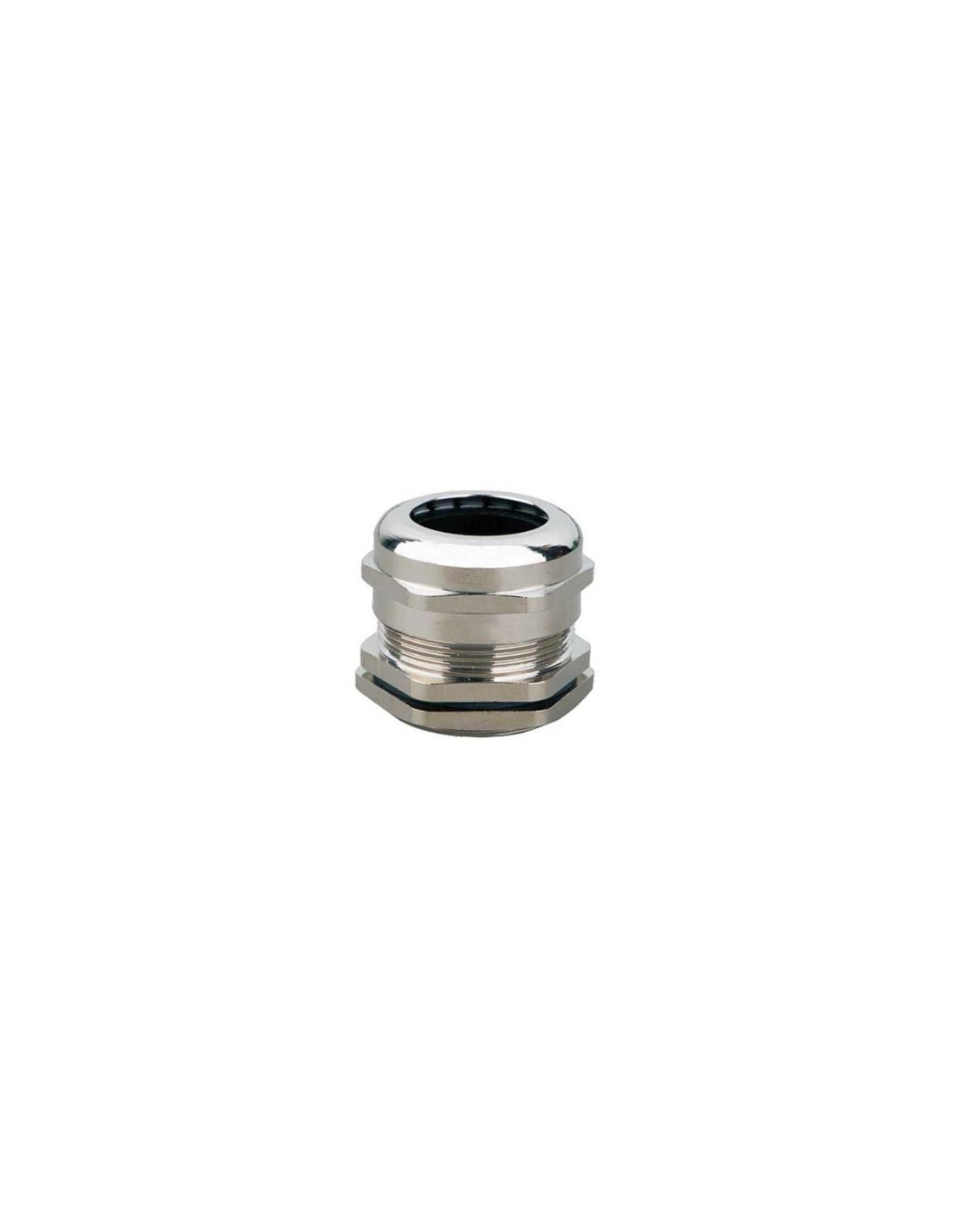

Metal cable gland with M12x1,5mm thread, nut and NBR gasket included. Degree of protection IP66.

Reference: MGF-12

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Quantity	Unit price	You Save
10	€1.08	€0.57

No queries yet, leave the first!

Privacy

Shipments

Returns

M12x1.5 cable gland; made of metal, with nut and gasket included in the scope of supply. Degree of protection IP66. Nitrile gasket.

Delivery includes:

Cable gland M12x1.5
Nut M12x1.5
Sealing gasket (NBR)

Characteristics:

Manufacturer/Supplier: Tracon
Part number: MGF-12
Thread: M12x1.5
Material: Nickel coated steel
Seal: NBR
Working Temperature: -40º ÷ 100º C
Degree of protection: IP66 (On circular section conductor)
Drilling diameter in panel: 12,5 mm
Cable diameter: 2 ÷ 5 mm
Key width: 16 mm

Dimensiones presaestopas

AG: Thread M12x1.5
GL: 5 mm
H: 19 mm
