Aluminum profile 45x135 cut to size
Special material, custom cut, delivery time 5-7 days approximately
€109.35
Tax included
€90.37 tax excl.
Structural profile of aluminum of 45x135mm, slot of 10mm. Anodized aluminum profile for heavy loads in color natural for industrial and general applications, has a groove on each side for 10mm accessories.
Reference: 10014
The main applications are the manufacture of structures, benches for machinery, workbenches and roller paths. All this in a simple way due to the large number of accessories for assembly.
Profile cut to the desired size between 250 mm and 1,800 mm. Indicate the length you want in the side menu.

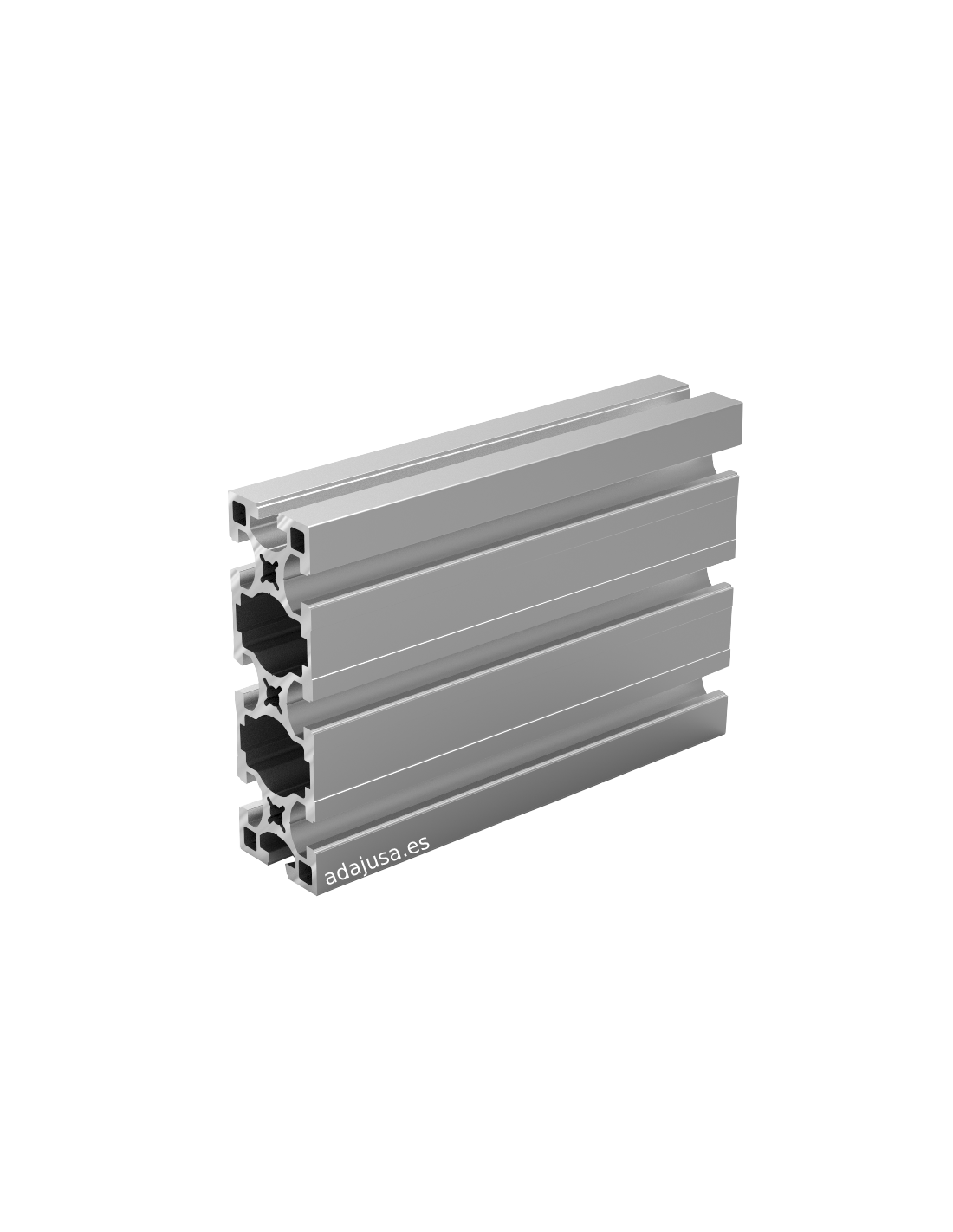

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
Heavy structural aluminium profile of 45x135mm for industrial and general use applications. It has 10mm slots along its entire length for each of its four faces.
Made of high-strength aluminum, anodized in natural color (aluminum).
The main applications are the manufacture of structures, benches for machinery, workbenches and roller paths. All this in a simple way due to the large number of accessories for assembly.
Specifications:
- Manufacturer/Distributor: LIPRO/Metal Work
- Reference: 10014
- Dimensions: 45x135mm
- Material: Aluminum alloy Al Mg Si 6060 (ISO 9006/1)
- Minimum tensile strength (Rm): 195 N/mm2
- Yield strength: Rp 0.2= 145 N/mm2
- Modulus of elasticity (E): 70000 N/mm2
- Anodizing thickness: 15 μm
- Dimensional tolerance according to ISO-EN 755
- Moment of inertia:
- Lx (cm⁴): 376.27
- Ly (cm⁴): 45.32
- resistance module:
- Wx (cm³): 55.74
- Wy (cm³): 20.14
- Profile area: 2125.83 mm2
- Mass (Kg/m): 5,69
- Slot width: 10 mm
- Number of slots: 8
Material cut to size, once the order has been processed, it cannot be cancelled or modified. The cutting accuracy is ±3mm.
