Three-phase motor 0.25Kw 0.33HP with brake 230/400V 1000 rpm Flange B14 - MGM

Three-phase motor 0.25Kw 0.33HP with brake 230/400V 1000 rpm Flange B14 - MGM

€473.69 Tax included

€391.48 tax excl.

Three-phase self-braking electric motor 0.25kW (0.33HP) 230/400Vac., 1000 rpm (6 Poles), Flange B14, aluminum housing. Manufactured under European IEC regulations.

Manufacturer: MGM

Reference: BA71B6 B14

  • Voltage: 230/400Vac 50/60Hz.
  • Power: 0.25Kw - 0.33HP.
  • Number of poles: 6.
  • Revs: 1000 rpm.
  • Flange: B14.
  • Shaft diameter: 14mm.
  • Flange diameter: 105mm.
  • PAM: 105/14
  • Size: 71
  • Energy efficiency: IE1.

Logotipo MGM

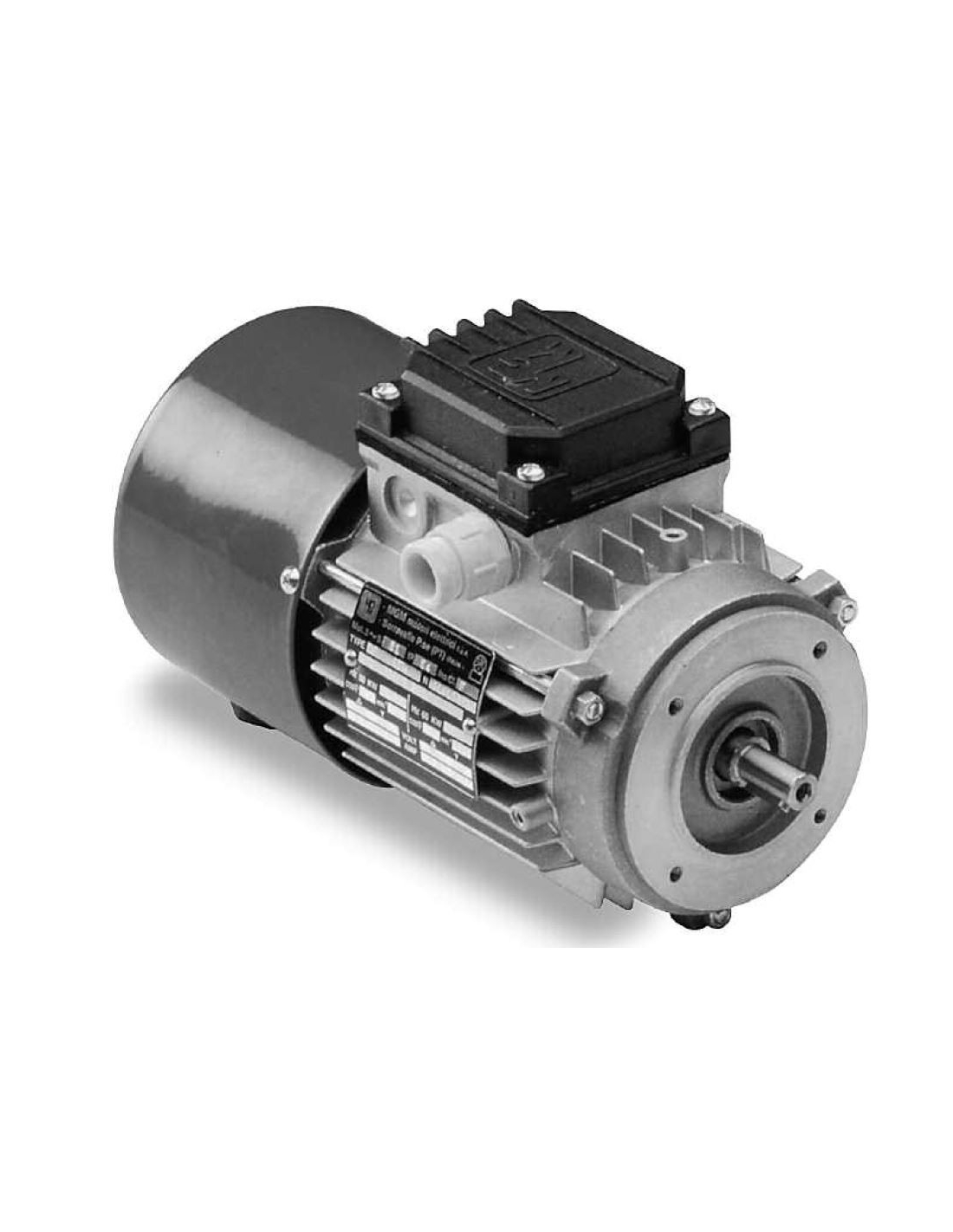

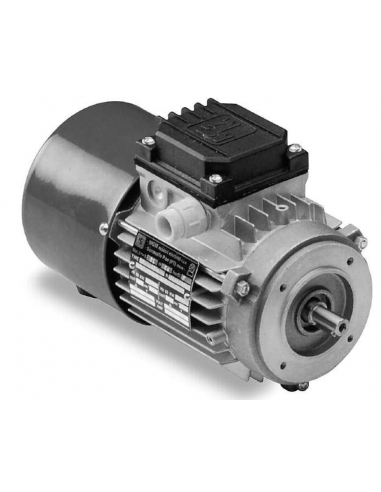

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Electric motor with brake, three-phase 0.25kW (0.33HP) 230/400Vac 1000 rpm Flange B14. Made of aluminum cast iron.

Features:

  • Manufacturer: MGM
  • Manufacturer's reference: BA71B6 B14
  • Engine type: self-braking squirrel cage async
  • Power: 0.25 Kw (0.33HP)
  • Voltage: 230/400 Vac., 50/60Hz.
  • Number of poles: 6 Poles
  • Revolutions: 900 rpm
  • Intensity at 400V: 0.8A
  • Efficiency: IE1
  • Power factor: 2.65
  • Torque (Cn): 2.65 Nm
  • Brake type: electromagnetic.
  • Brake torque: 5 Nm.
  • Continuous service: S1.
  • Degree of protection: IP54
  • Clamping type: Flange B14
  • Shaft Diameter: 14mm.
  • Flange Diameter: 105mm
  • PAM Flange: 105/14
  • Housing size 71
  • Housing material: Aluminum.
  • Weight: 8 Kg.
  • CE marking.

For more information, other powers or executions consult.
As with any asynchronous electric motor, the installation of a motor guard is mandatory to avoid overload damage.

DimensionesMotoresFreno

Material for professional use, install in compliance with the regulations in force at the installation site.
