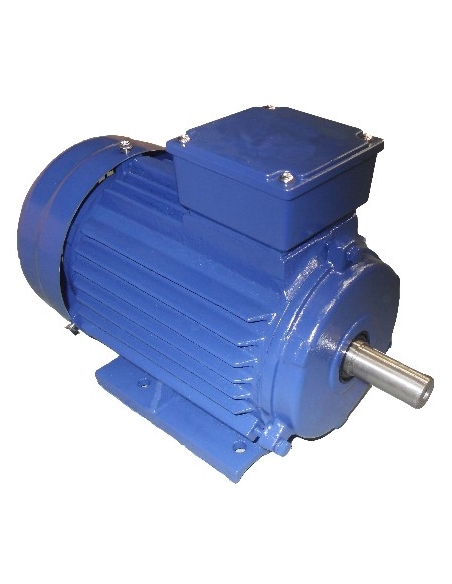

three-phase engine 0.09Kw/0.12CV 230/400V 3000 rpm B3 foot flange
Three-phase motor 0.55Kw 0.75CV 230/400V 750 rpm B3 foot flange aluminum housing
Three-phase motor 0.55Kw 0.75CV 230/400V 750 rpm B3 foot flange aluminum housing
Three-phase motor 0.55Kw 0.75CV 230/400V 750 rpm B3 foot flange aluminum housing
three-phase engine 0.09Kw/0.12CV 230/400V 3000 rpm B3 foot flange
Three-phase motor 0.55Kw 0.75CV 230/400V 750 rpm B3 foot flange aluminum housing
Three-phase motor 0.55Kw 0.75CV 230/400V 750 rpm B3 foot flange aluminum housing
Three-phase motor 0.55Kw 0.75CV 230/400V 750 rpm B3 foot flange aluminum housing

Three-phase motor 0.55Kw 0.75HP 230/400V 750 rpm Flange B3 foot aluminum housing

€163.12 Tax included

€134.81 tax excl.

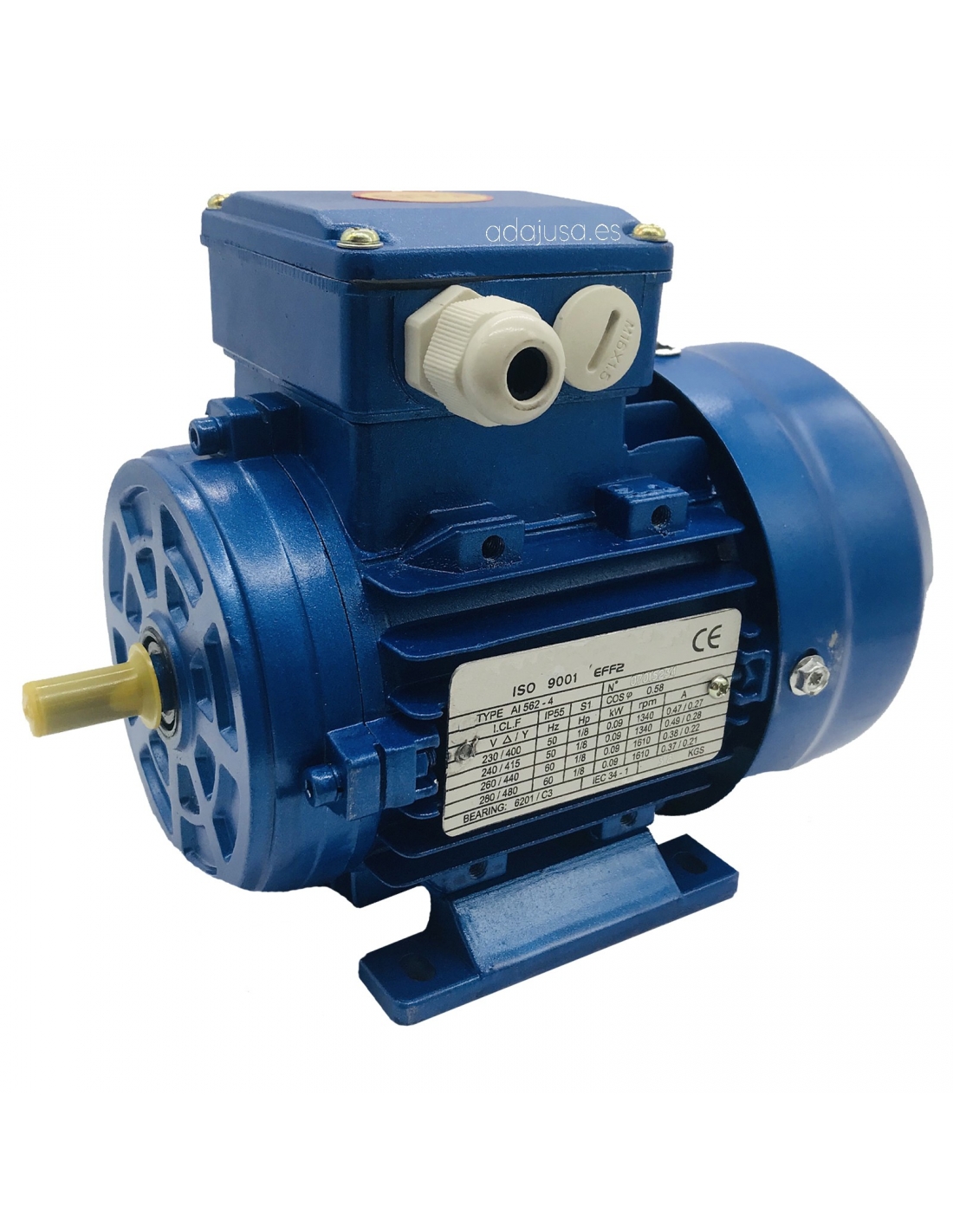

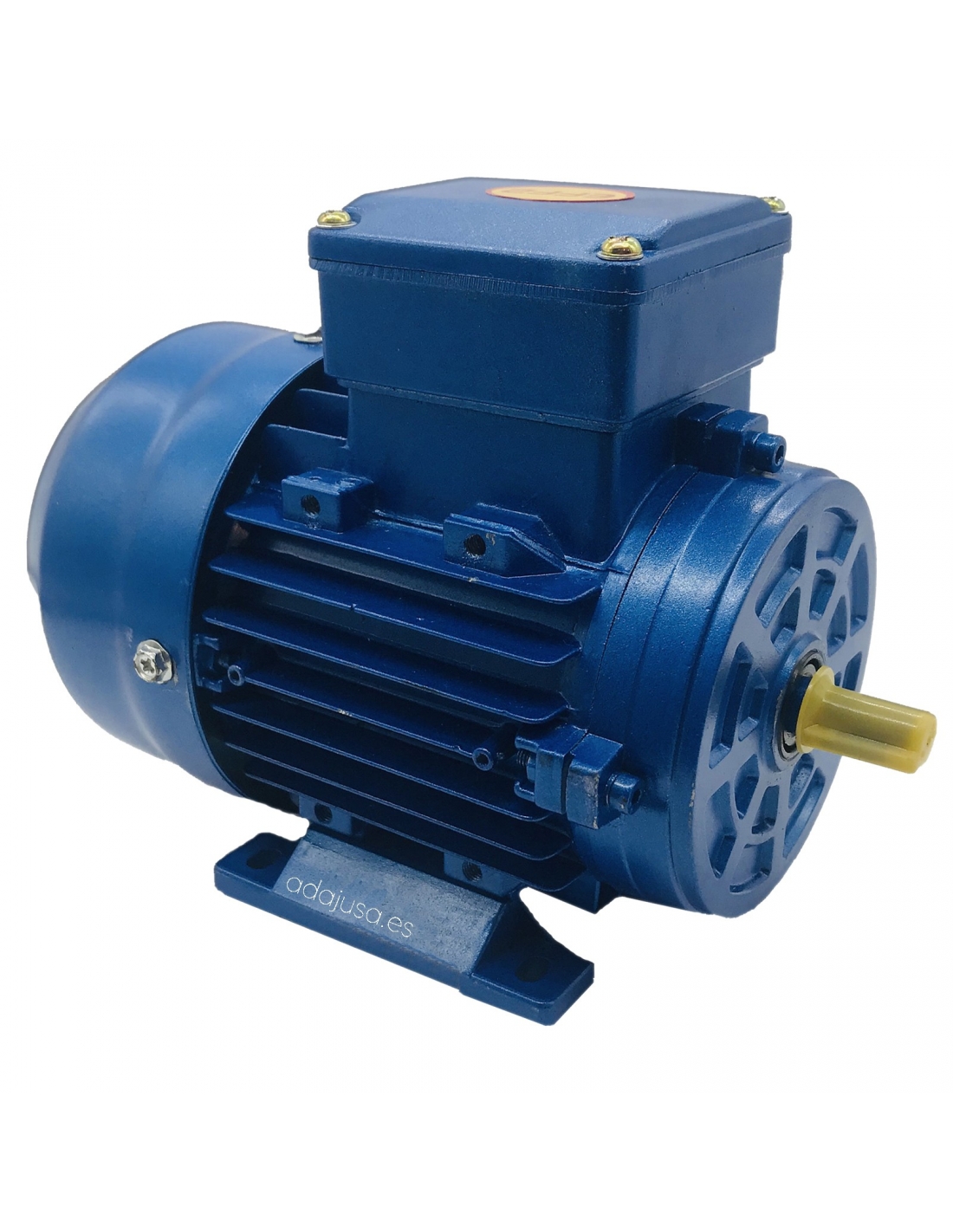

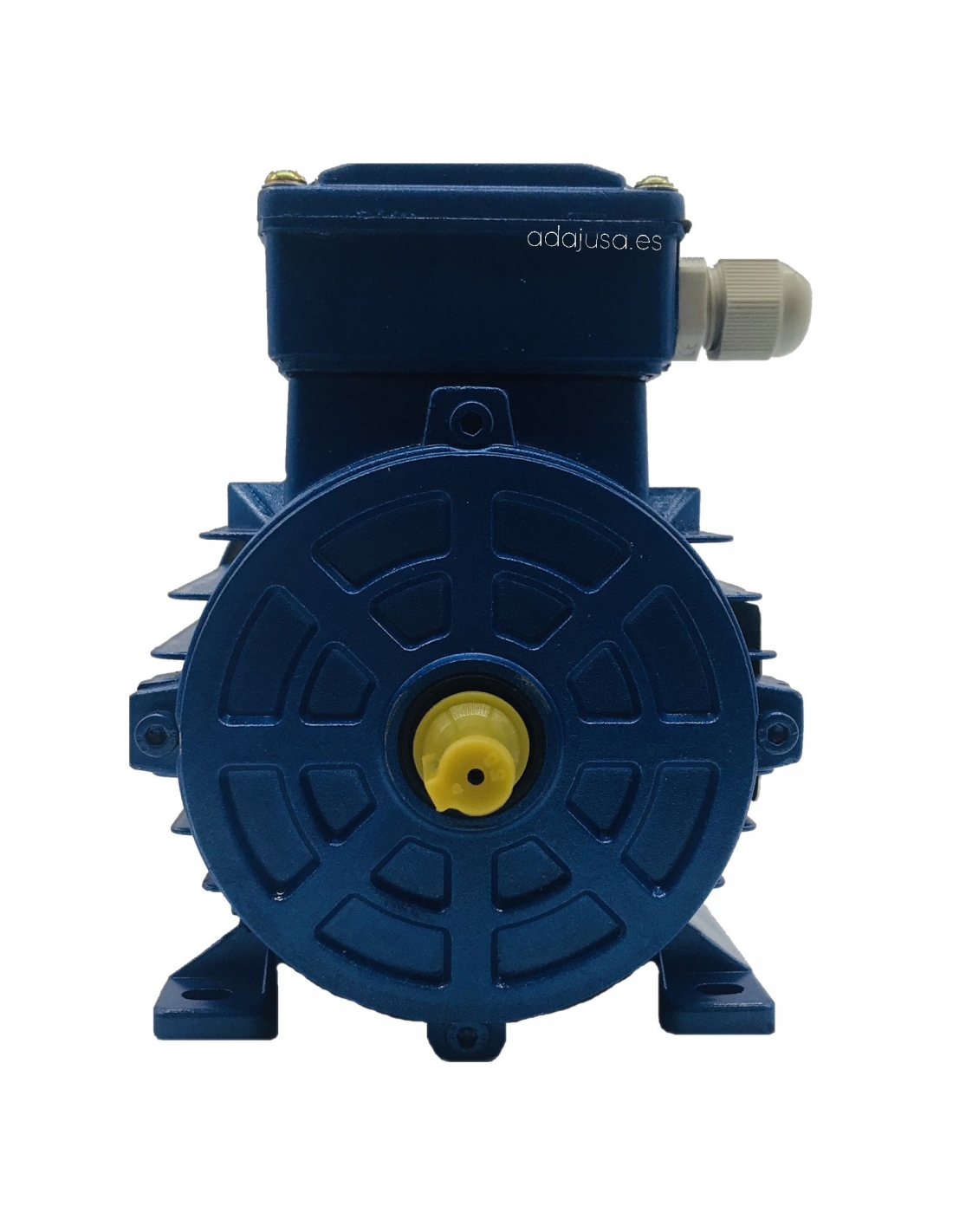

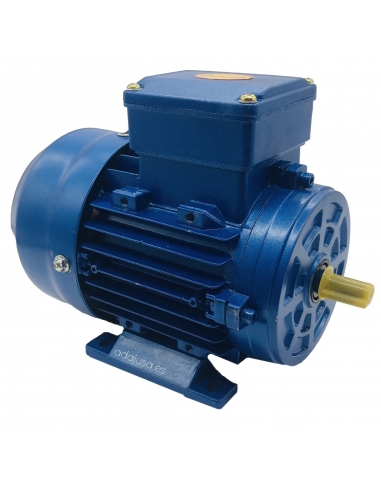

Three-phase electric motor 0.55kW (0.75HP) 230/400V 750 rpm (8 Poles) Flange B3 foot, aluminum housing.

  • Voltage: 230/400Vac 50/60Hz.
  • Number of poles: 8.
  • Revs: 750 rpm.
  • Flange: B3 foot.
  • Shaft diameter: 24mm.
  • Power: 0.55Kw - 0.75Hp.
  • Size: 90.
  • Energy efficiency: IE1.

No queries yet, leave the first!


Three-phase electric motor 0.55KW (0.75hp) 230/400V 750 rpm Flange B3 (foot). Made of aluminum.

Characteristics:

  • Motor type: asynchronous squirrel cage.
  • Efficiency: IE1.
  • Voltage: 230/400 V. III. 50/60 Hz.
  • number of poles: 8.
  • Revolutions: 750 (680).
  • Power: 0.55Kw (0.75HP).
  • Intensity: 3.36/1.95A
  • Yield: 66%
  • Continuous service: S1.
  • Degree of protection: IP55.
  • Clamping type: Flange B3 foot
  • Shaft diameter: Ø24mm
  • Housing size 90 (90L).
  • Color: Blue.
  • Weight: 17,2Kg.
  • Housing material: aluminum.
  • CE marking.

For more information, other powers or executions consult.

As in any asynchronous electric motor, the installation of a motor circuit breaker is mandatory to avoid overload damage.

Tabla dimensiones motores electricos brida B3

Engine intended to be used exclusively as a spare part for machinery and / or automatic systems.
