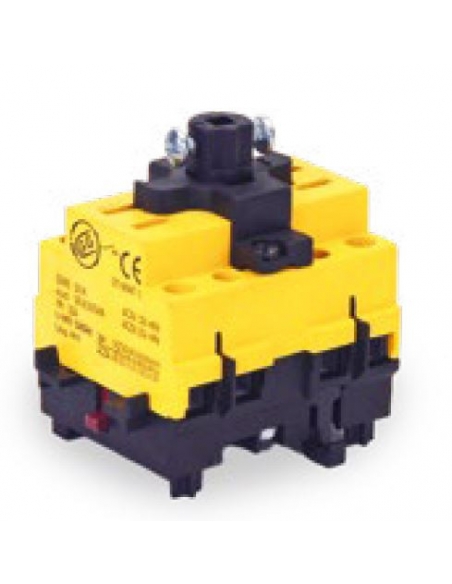

25A three-phase disconnector switch for inductive loads (electric motors) and general control. Mounting cabinet bottom and for 90o rotary control with two positions 0-1.
This series of rotary switches have been made according to the strictest European and international standards (IEC/EN 60947-3, UL508), which allows them to meet all safety requirements.
Mounting cabinet bottom on DIN rail, protection rating IP-20 on terminals, self-cleaning contacts and indelible laser marking. Body made of UL94 VO self-extinguishing material.
This three-phase switch is suitable for three-phase motors up to 7.5kw connected to 230Vac or 11kw connected to 400Vac.
The supply only includes the switch, does not include the front control or the extension shaft. It must be purchased separately or median pack.
Features:
- Brand: Giovenzana.
- Vendor Reference: SE163003B.
- Number of poles: 3.
- Rated voltage Ue: 690V.
- Ith thermal nomitanl current: 32A.
- Nominal current Ie (AC21A): 16A.
- Nominal current Ie (AC22A): 25A.
- Nominal current Ie (AC23A):25A.
- Nominal current Ie (AC3):25A.
- Nominal interrupt capacity: 10kA.
- Contacts: Slow opening of double interruption.
- Number of manoeuvres / hours: 120.
- Mechanical durability: 100,000 maneuvers.
- Maneuvering angle: 90o.
- Built-in mounting.
- Degree of protection:
- Type 1-4-4X controls: IP-65.
- Bornes: IP-20.
- Standards: EC; IEC60947; IEC60204; UL508 CSA 22.2 No14
Table of intensities and powers of use:
- AC-21A usage category: 32A.
- AC-22A usage category: 25A.
- AC-23A Usage Category:
- Standard three-phase motors 230Vac: 25A - 7.5kW.
- Standard three-phase motors 400Vac: 25A - 11kW.
- AC-3 Usage Category:
- 230Vac three-phase standard motors: 22A - 7.5kW.
- Standard three-phase motors 400VAc: 22A - 11kW.
Dimensions:
Mounting:
As additional elements we can add the following references:
- Auxiliary contact closed: GIPL004001
- Auxiliary contact open: GIPL004002
- Auxiliary contact fixing plate: GI1184021
