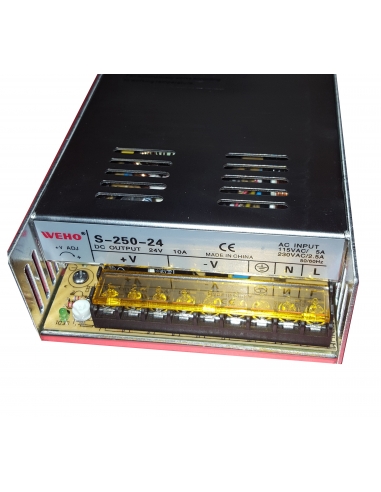

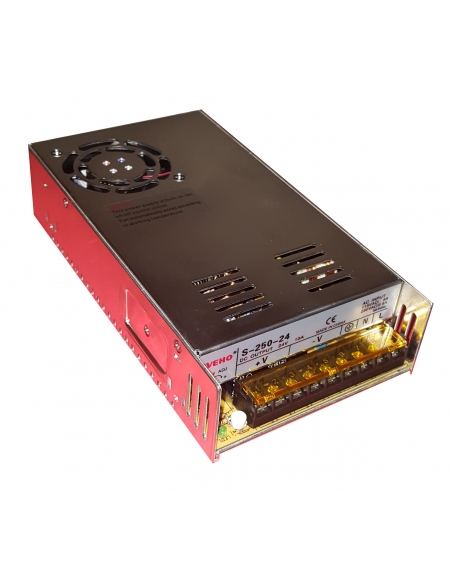

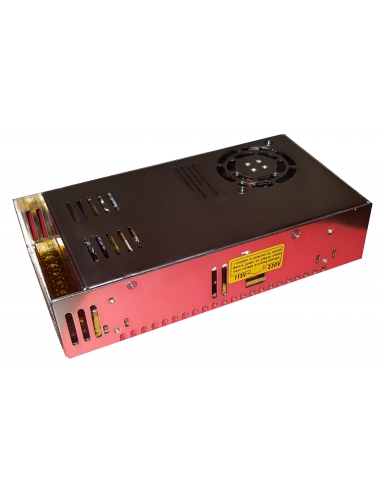

Power supply 24Vdc 10A 250W

Name: Power supply 24Vdc 10A 250W
Brand: Generico-DE
SKU: S250 24Vcc
Price: 55.1276 EUR
Availability: InStock

€55.13 Tax included

€45.56 tax excl.

Stabilized industrial power supply, single output of 24Vdc, 10A., switched type of 250W power. Supply voltage 230Vac., protected against overloads and short circuit

Metal box for industrial use, for mounting on bottom panel by screws. High performance and reliability required in industrial use.

Reference: S250 24Vcc

No queries yet, leave the first!

Privacy

Shipments

Returns

24Vdc single output stabilized industrial power supply, rated intensity 10A., and 250W power. Supply voltage 230Vac.

The power supply is mounted on a very robust metal box for industrial use, for mounting on bottom panel by screws. High performance and reliability required in industrial use.

With a high overload capacity and protected against short circuits in the output. Automatic reset to overloads and short circuits.

Fan cooling with electronic control, is only activated when necessary by excess temperature.

specifications:

Manufacturer/Supplier: Denor
Reference: S250 24Vcc
Operating mode: switched.
Mounting: cabinet or frame background. Fastening by screws.
Input voltage: 230Vac (170-264Vac).
Frequency: 47.. 63Hz.
Output voltage: 24VDC (+/- 1%).
Output voltage adjustment range: 24±10%.
Nominal output current: 10 A.
Rated output power: 250W.
Maximum commissioning time: less than 1 sec.
Curling and noise: Below 120mVpp.
Yield: 81.5%.
Overcurrent and short-circuit limitation: Yes, self-alarming.
Switching frequency: 37Khz.
Working temperature: -10oC.. 50oC temperature.
Cooling: By fan.
Safety standards: EC, EN60950-1; EN61347; EN61347-2.
EMC compliant— EN55015; EN55022; EN55024; EN61000-2; EN61000-3; EN61547.
CE ROHS Standard.
Dimensions: 215x115x50mm.
Weight: 1.15Kg.

Dimensiones fuentes de alimenetación S-240-24 240W 24V

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)
