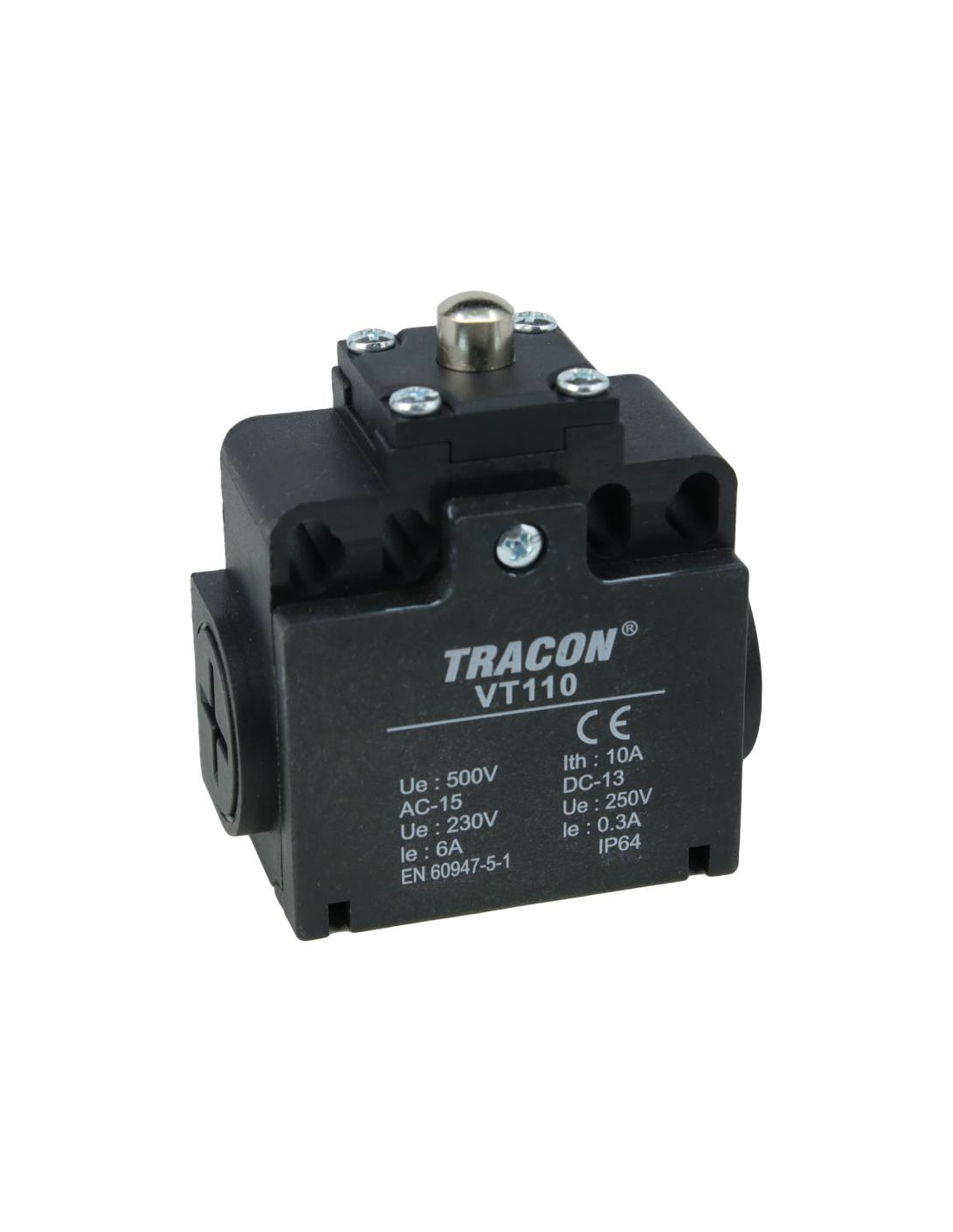

Limit switch vT Series pushbutton actuator
Limit switch vT Series pushbutton actuator

Limit switch vT Series pushbutton actuator

€14.36 Tax included

€11.87 tax excl.

Limit switch electric, contacts 1NA+1NC, push button operation. Made of highly impact-resistant thermoplastic resin.


Reference: VT110

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Limit switch the end of the carriage incorporates an electrical, mechanical position detector, made of thermoplastic resin very resistant to shocks. The limit switch incorporates a chamber with 2 electrical contacts 1 open NO and 1 closed NC. The limit switch is operated by means of a metal push button.


Operating travel (mm):



Technical characteristics:

  • Manufacturer/Supplier: TRACON
  • Manufacturer's reference: VT110
  • Actuator type: metal push button
  • Contacts: 1NO + 1NC
  • Rated voltage: 230Vac
  • Rated current (In): 5A AC1 230V / 2A AC15 230V / 0,3A DC13 250V
  • Rated thermal current (Ith): 10A
  • Rated insulation voltage: 500Vac
  • Mechanical life: 1x107 cycles
  • Material: Thermoplastic, metallic actuator head
  • Input thread: PG-11
  • Connection cable: 0.75 - 1.5mm2
  • Ambient operating temperature: -25oCto +55oC
  • Degree of protection: IP65
  • Standards: EN60947-5-1, EN60947-1


Dimensions:









Material for professional use, install in compliance with the regulations in force at the place of installation.
This component should not be used for safety or hazardous applications.
