Spring steel limit switch VP Series

€9.35 Tax included

€7.73 tax excl.

Electric limit switch, contacts 1NO+1NC, vertical steel rod with spring. Made of highly impact resistant thermoplastic resin.


Part number: VP181

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

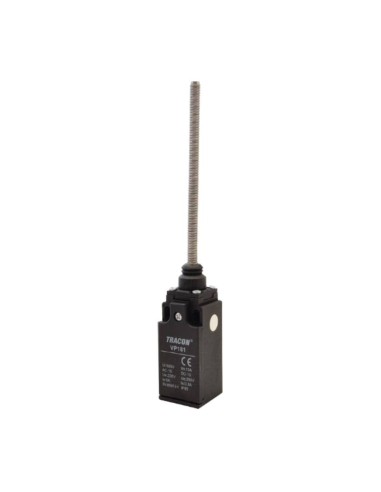

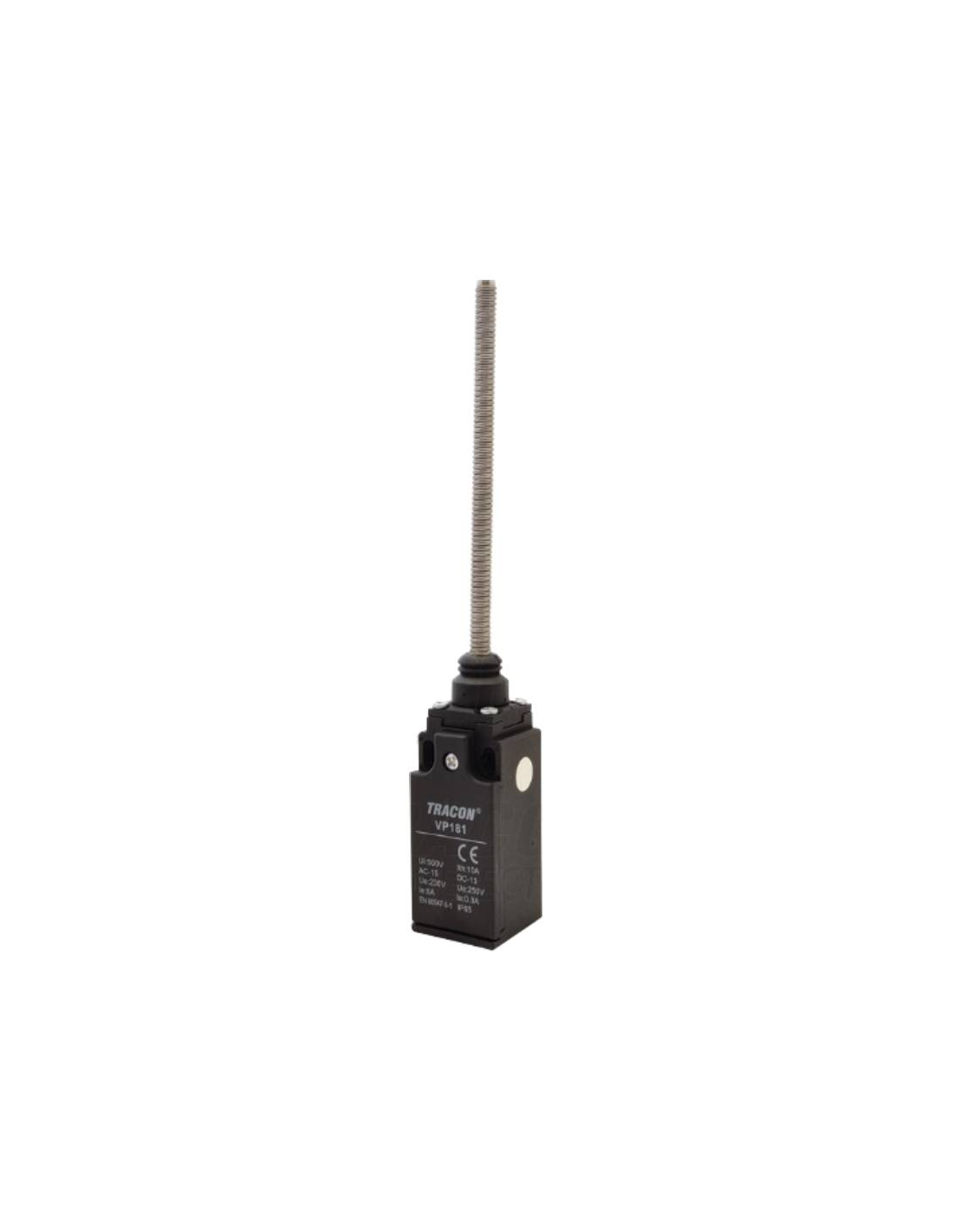

Limit switch electric, mechanical position detector, made of thermoplastic resin very resistant to shocks. The limit switch incorporates a chamber with 2 electrical contacts, one open NO and the other closed NC. The limit switchis operated by means of a spring-loaded vertical rod, made of steel, which can be operated in any direction.



Operating travel (mm)



Technical characteristics:

  • Manufacturer/Supplier: TRACON
  • Manufacturer's reference: VP181
  • Actuator type: Spring-loaded vertical steel rod
  • Contacts: 1NO + 1NC
  • Rated voltage: 230Vac
  • Rated current (In): 5A AC1 230V / 2A AC15 230V / 0,3A DC13 250V
  • Rated thermal current (Ith) : 10A
  • Rated voltage of isolation: 500Vac
  • Mechanical life: 5x106 cycles
  • Material: Thermoplastic, metal actuator head
  • Inlet thread: M20
  • Connection cable: 0.75 - 1.5mm2
  • Ambient operating temperature: -25oC to +55oC
  • Degree of protection: IP65
  • Standards: EN60947-5-1, EN60947-1



Dimensions:






Material for professional use, install in compliance with the regulations in force at the place of installation.
This component should not be used for safety or hazardous applications
