Double solenoid valve 1/4 3/2 assisted tracks NC - Metal Work

€113.14 Tax included

€93.50 tax excl.

Solenoid valve 1/4 3/2 way double output NC (normally closed) assisted. Coils not included

Reference: 7020023400

Logotipo Metal Work

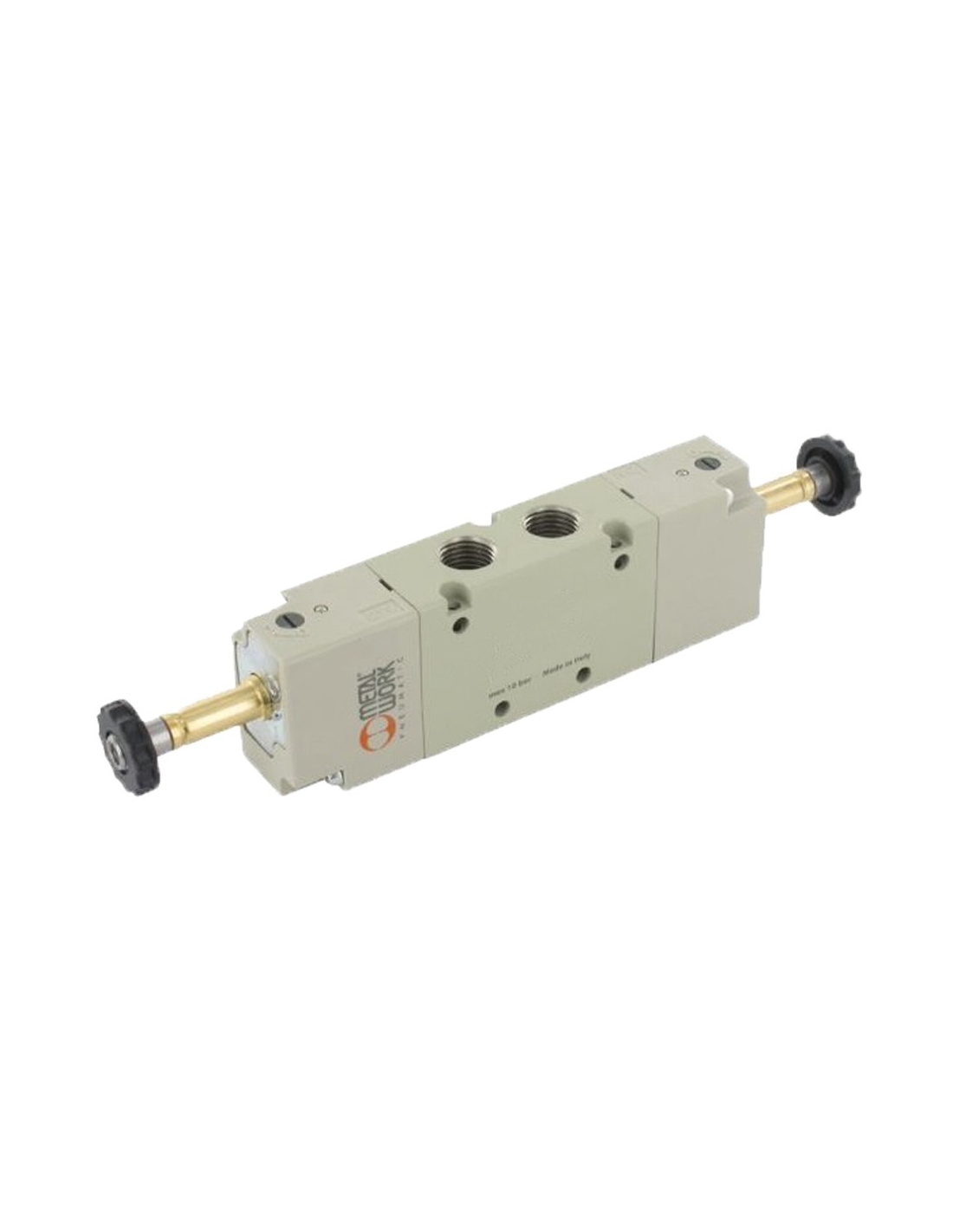

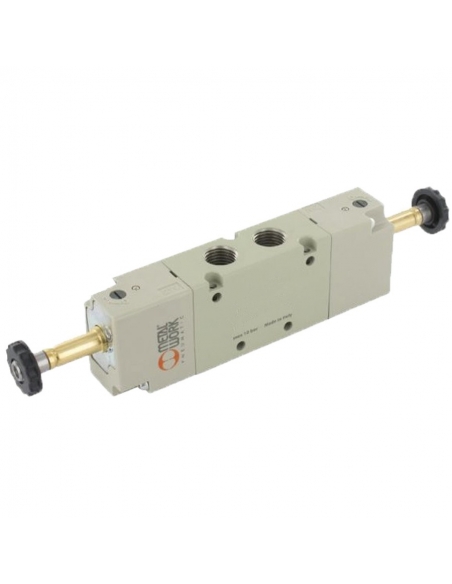

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Doublepneumatic solenoid valve 1/4" 3/2 way NC. The solenoid valve is normally closed, that is to say, with voltage on the coil, the fluid or air will be passing through the solenoid valve , when the coil is not energized the fluid or air passage will be interrupted.

Coil and connector not included.

Technical characteristics:

  • Manufacturer Metal Work
  • Part number: Metal Work: SOV 38 SOS NO Code: 7020023200
  • Thread type: G 1/4"
  • Bistable bar: 2.5 ÷ 10
  • Minimum assistance pressure bar: 2.5
  • Operating temperature °C: -10 ÷ +60
  • Nominal diameter mm: 7.5
  • Conductance C Nl/min - bar: 264.26
  • Critical ratio b bar/bar: 0.27
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 750
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 1100
  • TRA/TRR monostable at 6 bar ms: 19/45
  • TRA/TRR bistable at 6 bar ms: 21/21
  • Tension tolerances %: -10 ÷ +15
  • Class of isolation: F 155

Equipment for professional use, to be installed in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the tab "Attachments"
