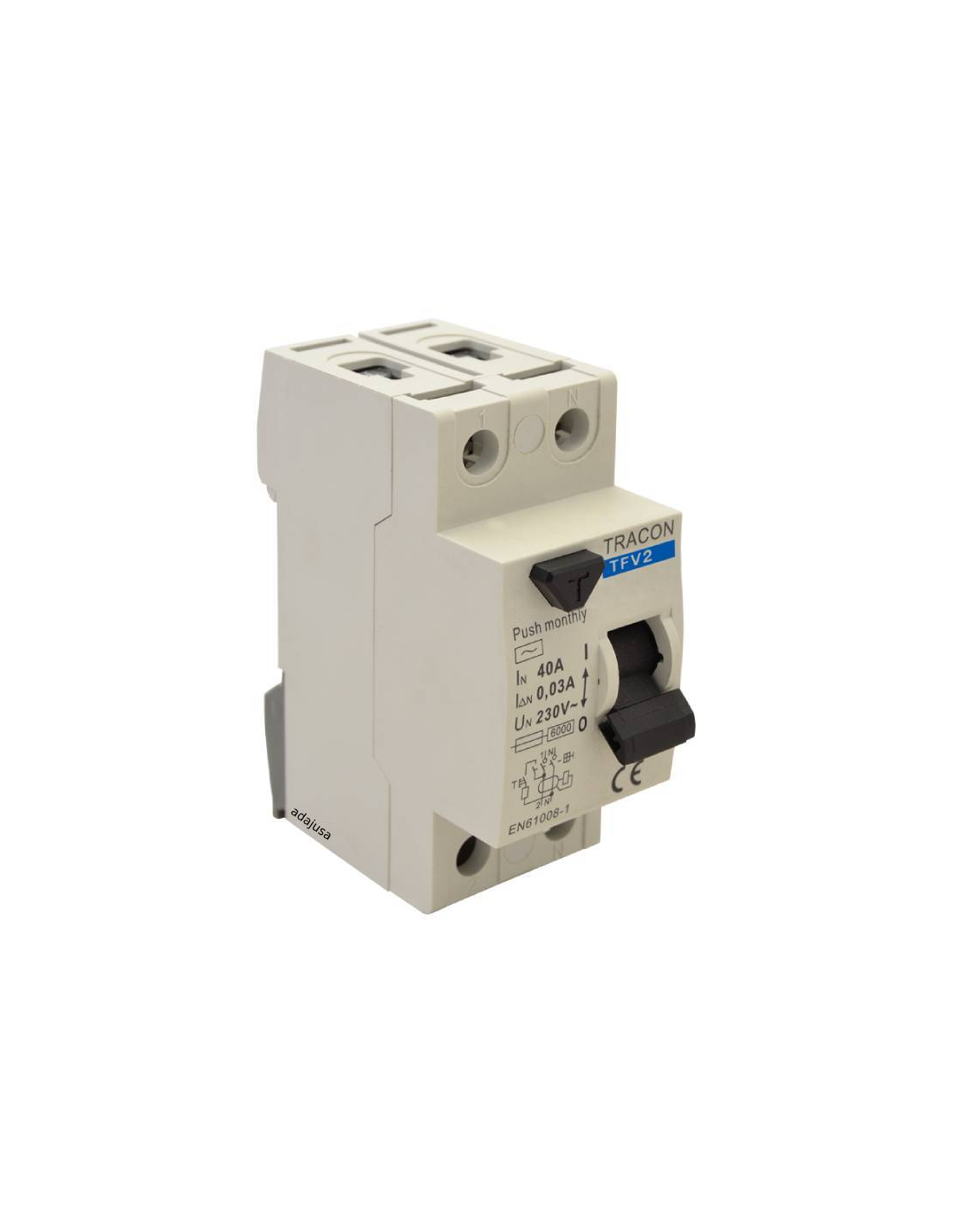

Differential 2 poles 40A 30mA class AC - Tracon
Differential 2 poles 40A 30mA class AC - Tracon

Differential 2 poles 40A 30mA class AC - Tracon

€12.25 Tax included

€10.12 tax excl.

Single-phase 2-pole differential (P+N) 40A 0.03A (30mA) class AC. Electromagnetic type, which allows protection not to be lost in case of variations in the input voltage, and to maintain protection of the active phase in case of loss of the neutral.

Standard class "AC" differential.


Reference: TFV2-40030

Class AC

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Electric differential switch of 40A 30mA, 2 poles, electromagnetic type, to protect people from isolation/derivation problems in electrical installations or elements. For use in residential, tertiary and industrial sectors.

Standard “AC” employment class. Neutral position on the right side.

This type of differentials are electromagnetic in operation, which allows the safety function not to be lost in the event of supply voltage variations or loss of the neutral conductor. Only with the bypass in the active phase does the differential trip occur.

Made of molded and fire-retardant thermoplastic material. This differential does not support mounting auxiliary elements.



Characteristics:

  • Manufacturer/Importer: Tracon
  • Model: TFV2-40030
  • Number of poles: 2 (1 Pole + Neutral)
  • Class: AC
  • Type: electromagnetic
  • Employment in the domestic, tertiary and industrial sectors
  • Operating voltage (Ue): 230Vac, 50/60Hz
  • Nominal insulation voltage (Ui): 500Vac
  • Rated impulse withstand voltage (Uimp): 4kV
  • Rated current (In): 40A
  • Sensitivity (IΔn): 30mA (0.03A)
  • Breaking capacity : 6kA
  • Electrical life: > 4000 cycles
  • Mechanical life: > 10000 cycles
  • Operating temperature: -25ºC to +55ºC
  • Protection grade: IP20
  • Conductor section: 2.5 - 25mm²
  • Allows the use of pin-type connection combs
  • Does not support the assembly of auxiliary elements
  • Sealable in OFF position



Dimensions:





Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)
