MFKV series box adajusa
Modular box 14 elements surface mount MFKV series
MFKV series box adajusa
Modular box 14 elements surface mount MFKV series

Modular box 14 elements surface mount MFKV series

€20.73 Tax included

€17.13 tax excl.

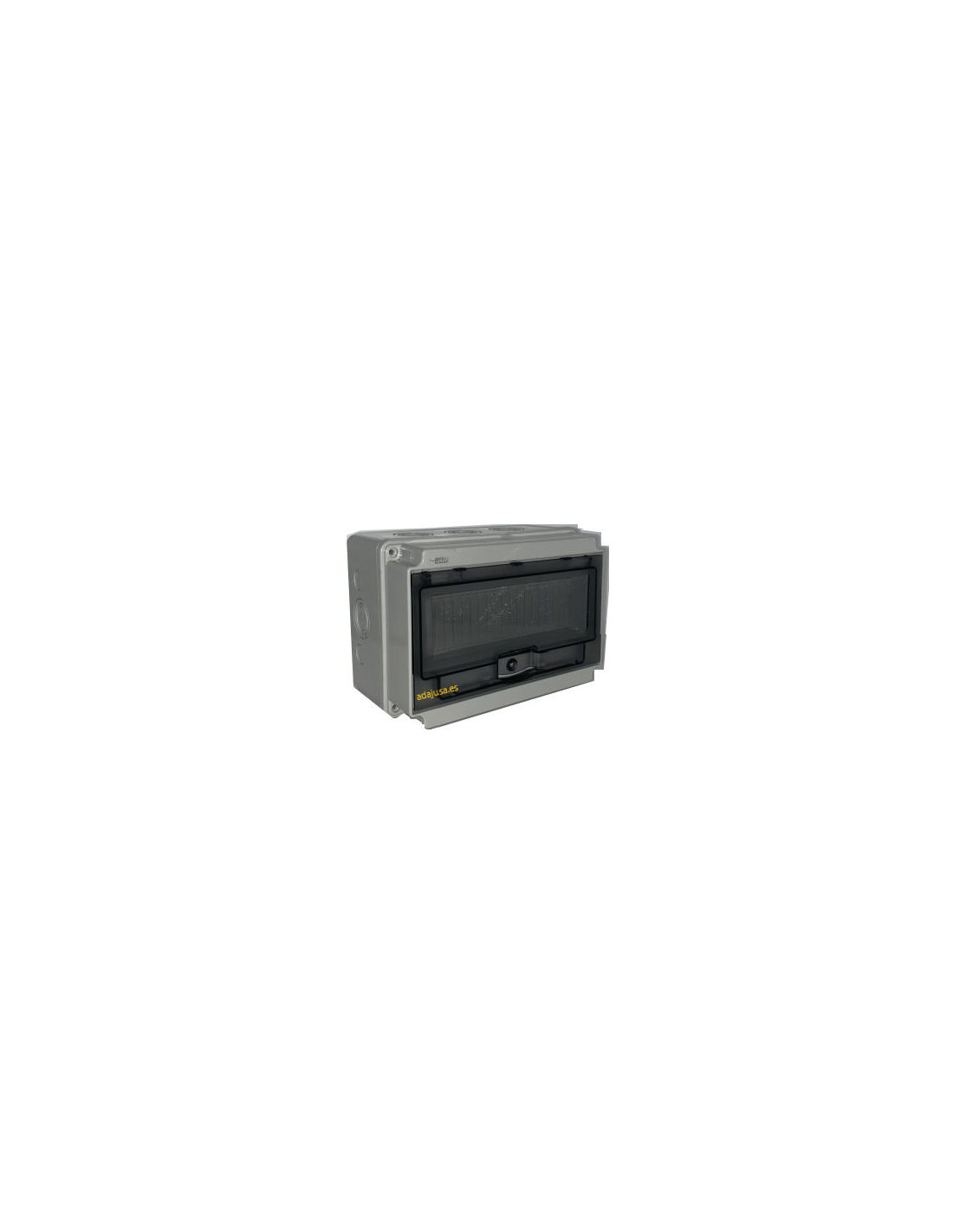

Modular box to accommodate switchboard and electrical elements (Differentials, magnetothermic ...), for 14 modules with lid, mounting on surface or wall, with a smoked transparent door. IP protection grade 66.

reference: MFKV14

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns

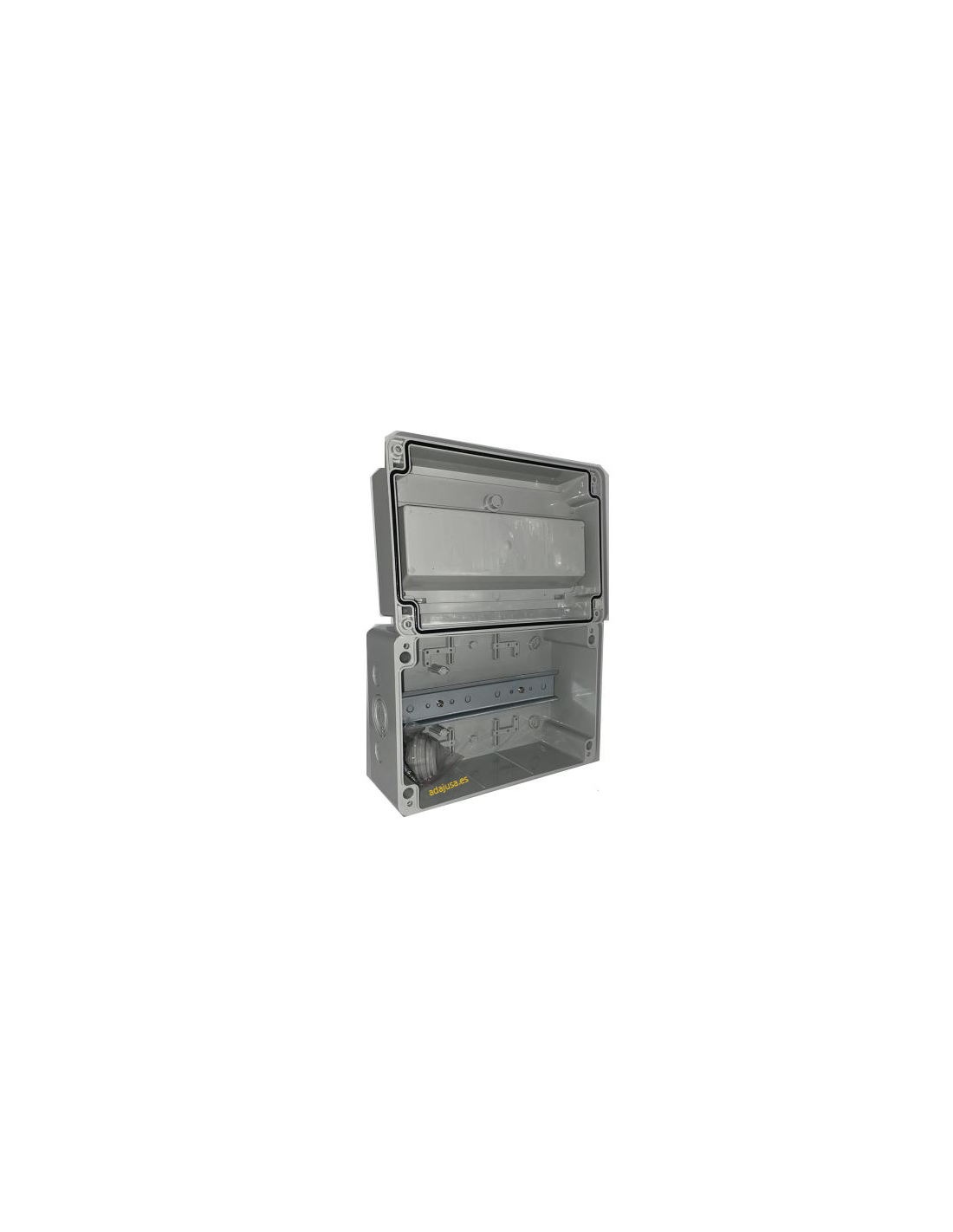

Modular box to accommodate switchgear and electrical elements (Differentials, magnetothermic ...), capacity to accommodate up to 14 modules, smoked transparent door, surface or wall mounting. Made of white plastic material provides a protection class II and a degree of protection IP66.

characteristics:

  • Supplier/Manufacturer: Mixvil/XBS
  • Reference: MFKV14
  • Number of items: 14
  • Color: White
  • Surface mounting
  • IP66 protection
  • Class: II
  • Maximum insulation voltage: 660V 50Hz
  • Flammability: according to IL94-V0
  • Modular DIN fixing chassis

Dimensions:

MFKV14

Height (E): 298mm
Width (D): 218mm
Depth (F): 146.5mm

Material for professional use, install in compliance with the regulations in force at the place of installation.
