Cylinder 40x80 double effect - Metal Work

€83.83 Tax included

€69.28 tax excl.

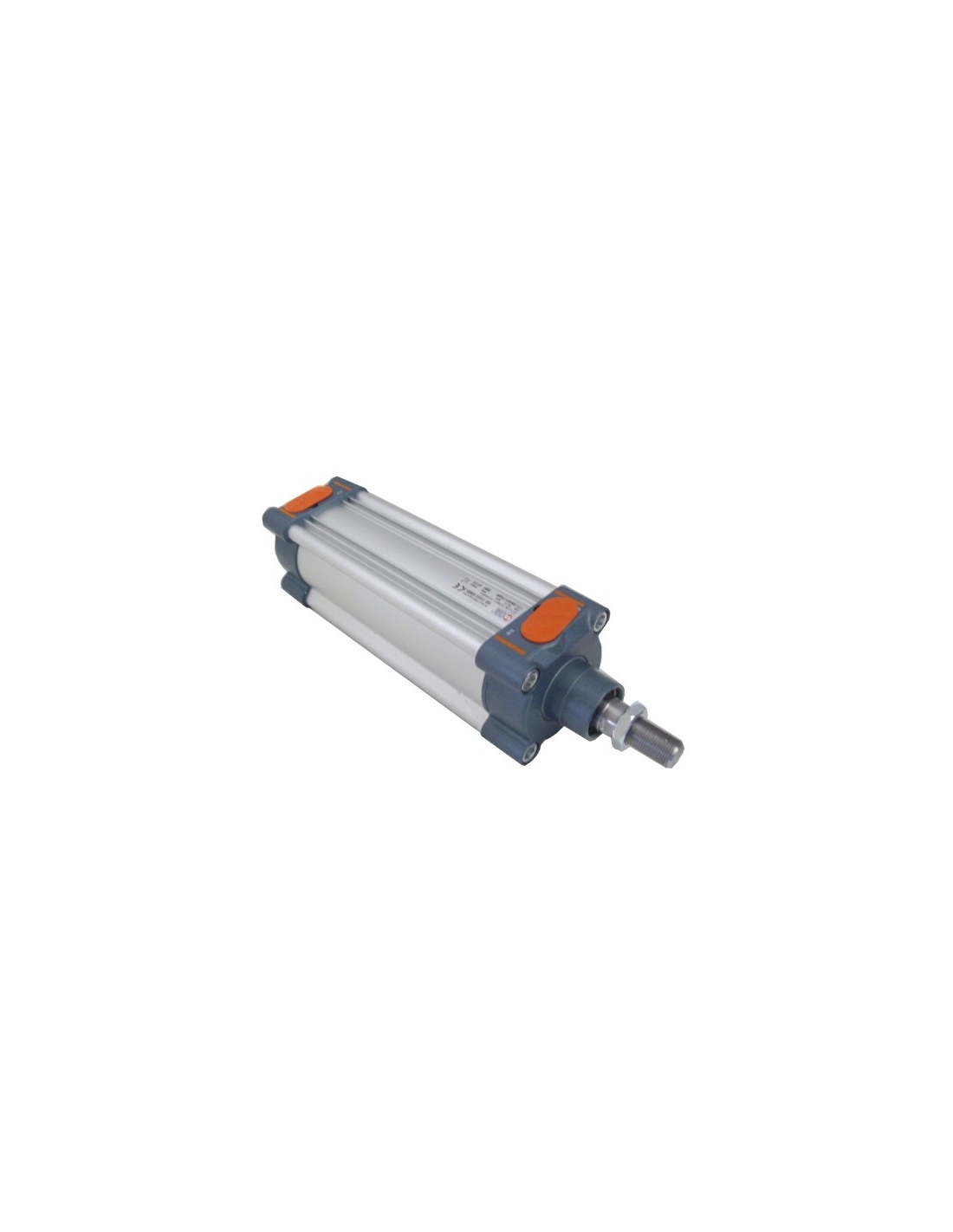

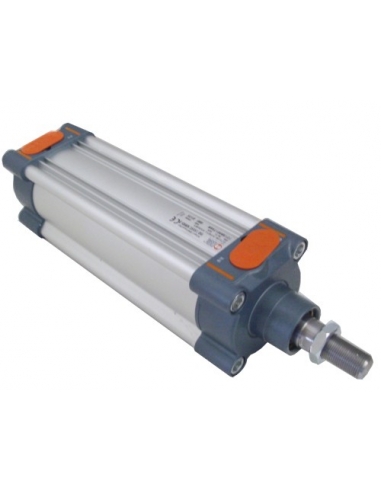

Pneumatic cylinder Ø40x80 double magnetic effect. Mark Metal Work, according to ISO 15552 (Ex ISO 6431). Extruded aluminum body with magnetic detector slots and chromed steel stem.

Reference: 1213400080CN
Esquema cilindro doble efecto amortiguación neumática

Logotipo Metal Work


Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Pneumatic cylinder diameter 40 mm stroke 80mm, double effect with pneumatic damping and prepared for magnetic detection. The pneumatic cylinder is manufactured according to ISO 15552 (Ex ISO 6431), with an aluminium jacket. Stem in chromed steel. Wide range of accessories for pneumatic cylinder mounting.

The 3 series manufactured by Metal Work is fully compatible with the standard series of cylinders and highly compatible with the "A" series also manufactured by Metal Work. Its elaborate extruded aluminium profile design allows to accommodate a wide variety of magnetic detectors on the groove and mounted on supports.

The standard cylinder is equipped with pneumatic damping and NBR gaskets, on request can be supplied with polyurethane gaskets.

Technical characteristics of the pneumatic cylinder:

  • Manufacturer: Metal Work.
  • Manufacturer's Reference: 1213400080CN (1210400080CN - 121A400080CN)
  • Diameter & Stroke: .40x80 mm
  • Type: Double-effect pneumatic cylinder
  • Damping: pneumatic.
  • Fluid type: Air with or without lubrication
  • Manufacturing standard: ISO 15552 (Ex ISO 6431)
  • Maximum operating pressure: 10 Bar
  • Type of gaskets: NBR
  • Operating temperature: -10oC to +80oC.
  • Type of construction: Chromed steel shank, aluminum shirt
  • Air Connection Thread Size: G 1/4"
  • Stem thread: M12x1.25
  • Theoretical maximum force that can develop the cylinder at thrust:
    • Pressure 5 kg/cm2: 62.5
    • Pressure 6 kg/cm2: 75.4
    • Pressure 7 kg/cm2: 88.0
  • Theoretical maximum force that can develop the cylinder to traction:
    • Pressure 5 kg/cm2: 57.2
    • Pressure 6 kg/cm2: 68.6
    • Pressure 7 kg/cm2: 80.0

Tabla de dimensiones cilindros Metal Work serie 3
Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
