Cylinder 100x50 double effect - Mindman

Delivery in 3 - 5 days
€119.48 Tax included

€98.74 tax excl.

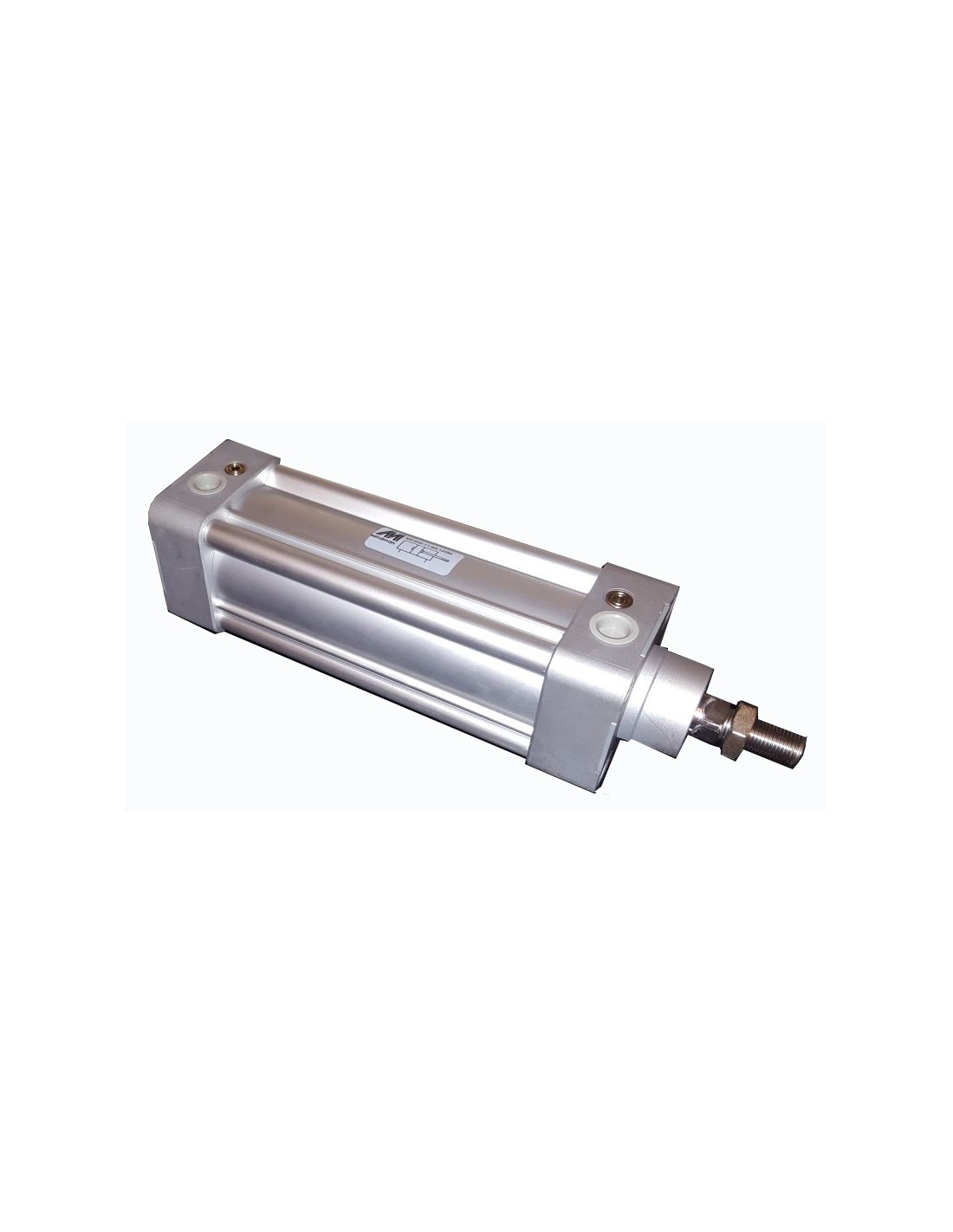

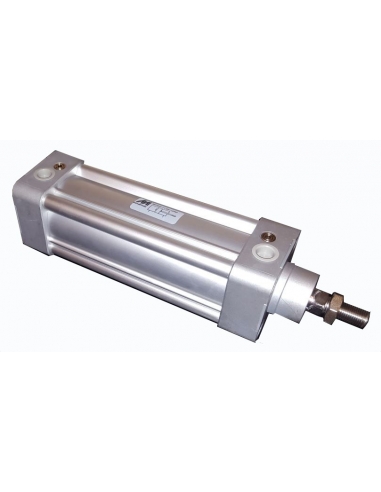

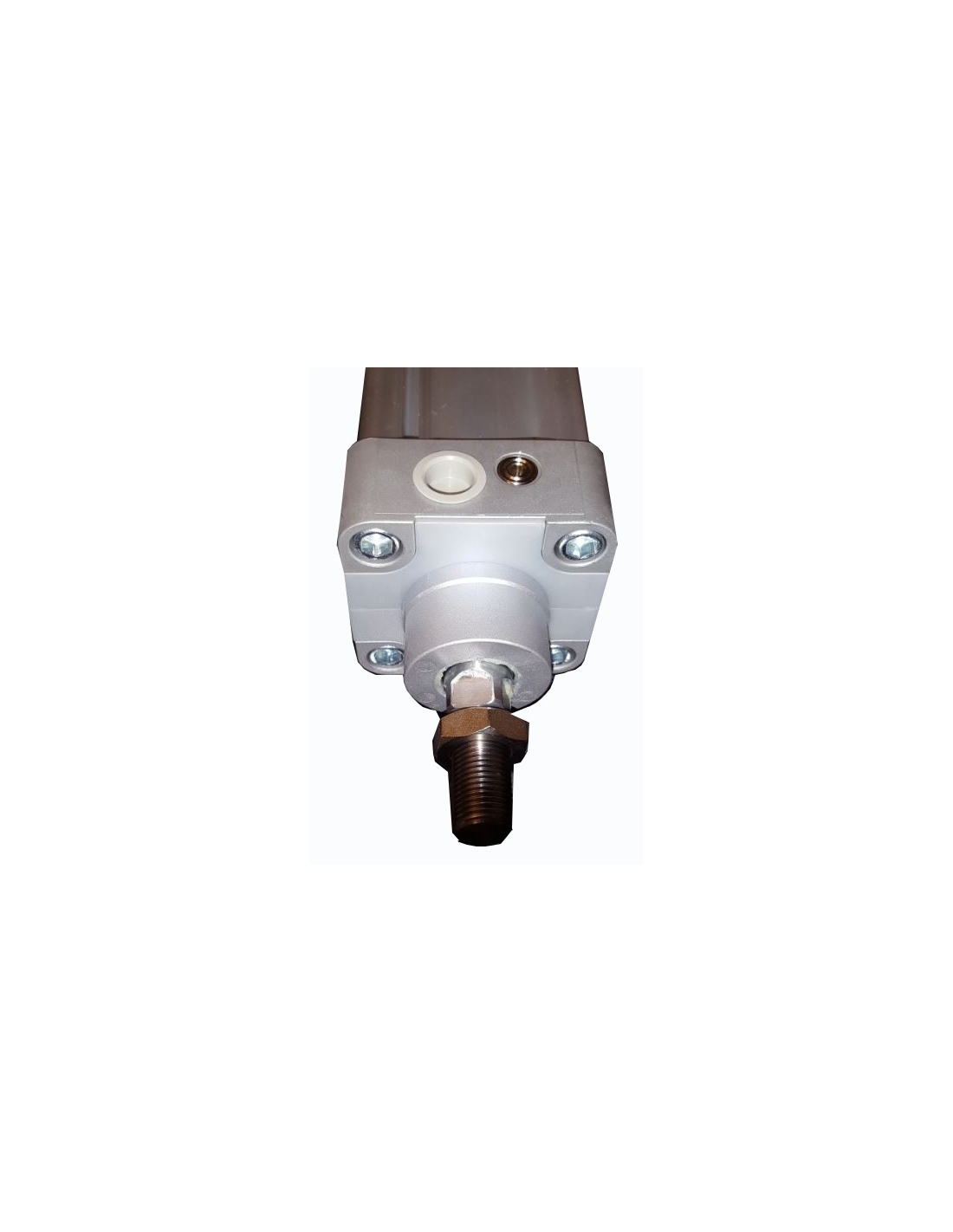

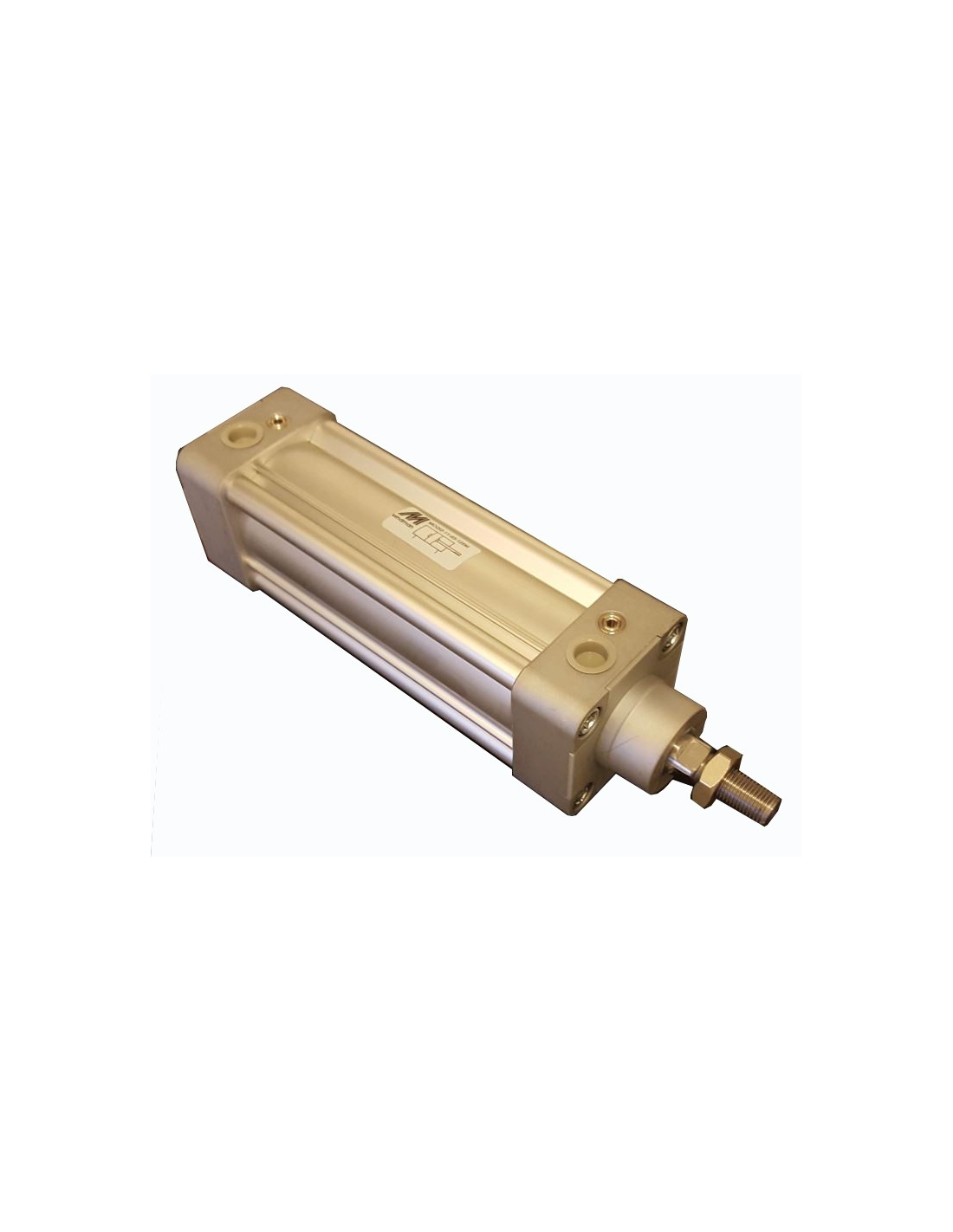

Pneumatic cylinder 100x50 double magnetic effect. With pneumatic damping, aluminum jacket and vastago in chromed steel.


https://rodavigo.net/datos/logos-marcas-png/th_mindman.png

Esquema cilindro neumático doble efecto diámetro 100x50
Reference: 281MCQI2111000050M
Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

No queries yet, leave the first!


Pneumatic cylinder diameter 100 mm stroke 50mm, double effect with pneumatic damping and prepared for magnetic detection. The pneumatic cylinder is manufactured according to ISO 15552 (Ex ISO 6431), with an aluminium jacket. Stem in chromed steel. Wide range of accessories for pneumatic cylinder mounting.

Technical characteristics of the pneumatic cylinder:

  • Manufacturer: Mindman.
  • Ref. 281MCQI2111000050M
  • Diameter and stroke: 100x50 mm.
  • Type: Double-effect pneumatic cylinder.
  • Damping: pneumatic.
  • Fluid type: Air with or without lubrication.
  • Manufacturing standard: ISO 6431
  • Maximum operating pressure: 10 Bar.
  • Type of gaskets: NBR.
  • Operating temperature: -10oC to +80oC.
  • Type of construction: Chromed steel shank, aluminum shirt.
  • Air inlet thread size: G 1/2".
  • Cylinder stem thread: M20x1.5
  • Weight: 4.34 Kg.
  • Theoretical maximum force that can develop the cylinder at thrust:

Pressure 5 kg/cm2: 251.3 Kg.

Pressure 6 kg/cm2: 301.6 Kg.

Pressure 7 kg/cm2: 351.9 Kg.

  • Theoretical maximum force that can develop the cylinder to traction:

Pressure 5 kg/cm2: 226.8 Kg.

Pressure 6 kg/cm2: 272.1 Kg.

Pressure 7 kg/cm2: 317.5 Kg.

Dimensiones cilindros neumáticos doble efecto diámetro 100x50
Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
