Power outlet box 12 IP66 modules with 2 bases...
Power outlet box 12 IP66 modules with 2 bases of 16A 2P+T 2 of 32A 3P+T

Power outlet box 12 IP66 modules with 2 bases of 16A 2P+T 2 of 32A 3P+T

€76.85 Tax included

€63.51 tax excl.

Box with power outlets and surface mount, 245x325x138, made of halogen-free ABS, with an IP66 degree of protection. The box can accommodate up to 12 17.5mm elements.

This box is supplied with the following power outlets:

  • 2 16A 2P+T (side) CETAC IP66 power outlets.
  • 2 32A 3P+T (front) CETAC IP66 power outlets.

Reference: BH6-6224-2020

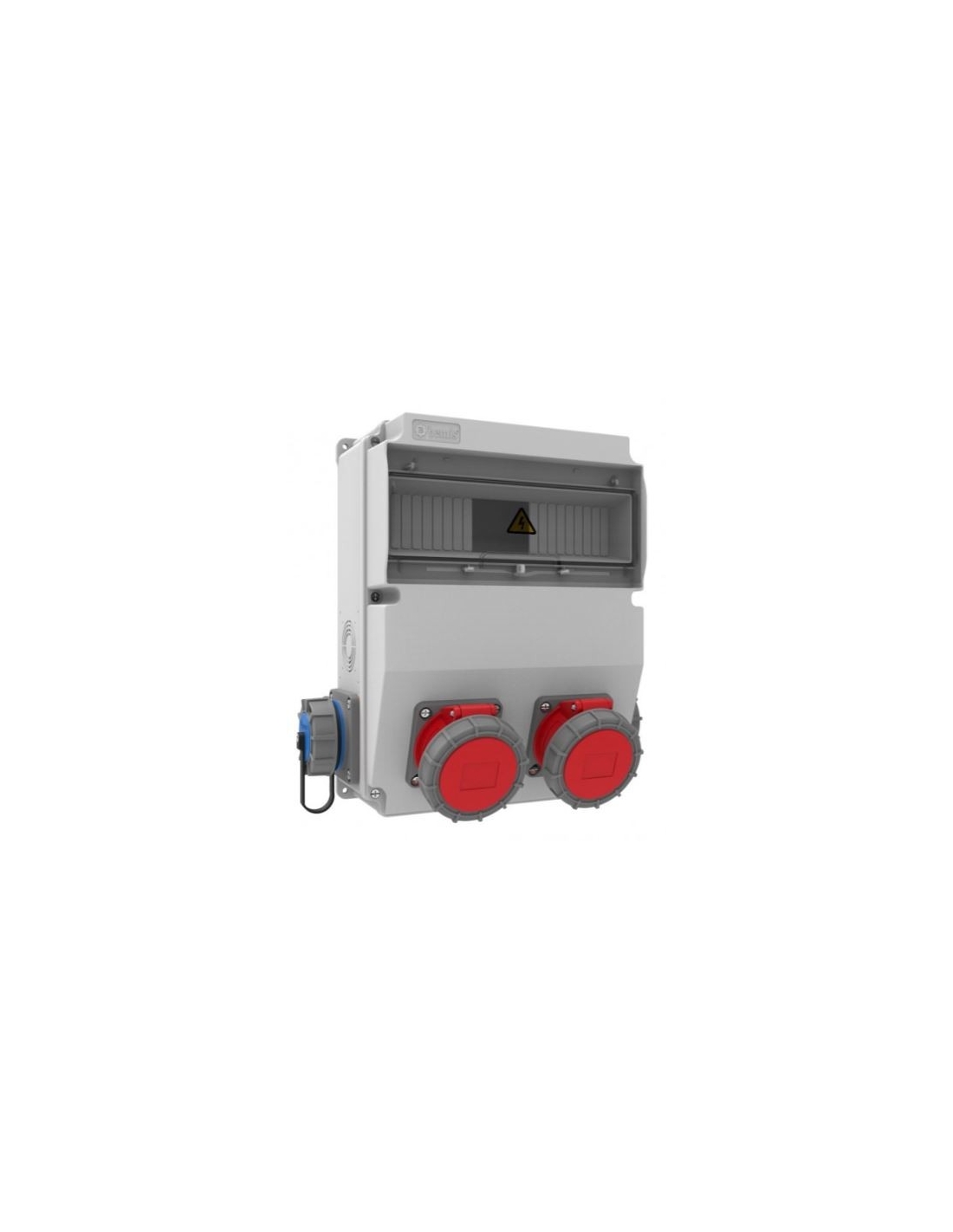

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Surface box with power outlets, plug sockets, made of halogen-free ABS and with an IP66 degree of protection.

This box is supplied with several outlets and can accommodate the necessary protective elements (not supplied). The available space is 12 modules for 17.5mm elements (differential and MCB circuit breaker).


specifications:

  • Manufacturer/Supplier: Bemis
  • Reference: BH6-6224-2020
  • Product: Power outlet box
  • Case 245x325x138 mm.
  • 2 16A 2P+T, 250Vac (Blue) CETAC IP66 plug sockets.
  • 2 32A 3P+T, 400Vac (Red) CETAC IP66 plug sockets.
  • Degree of protection: IP-66
  • DIN rail.

Note: No wiring or protective elements (differential and MCB circuit breaker) are supplied.

dimensions:

Dimensiones BH6-2118-2020

Material for professional use, install in compliance with the regulations in force at the installation site.
