Full gear-stop-pilot button box

€11.00 Tax included

€9.09 tax excl.

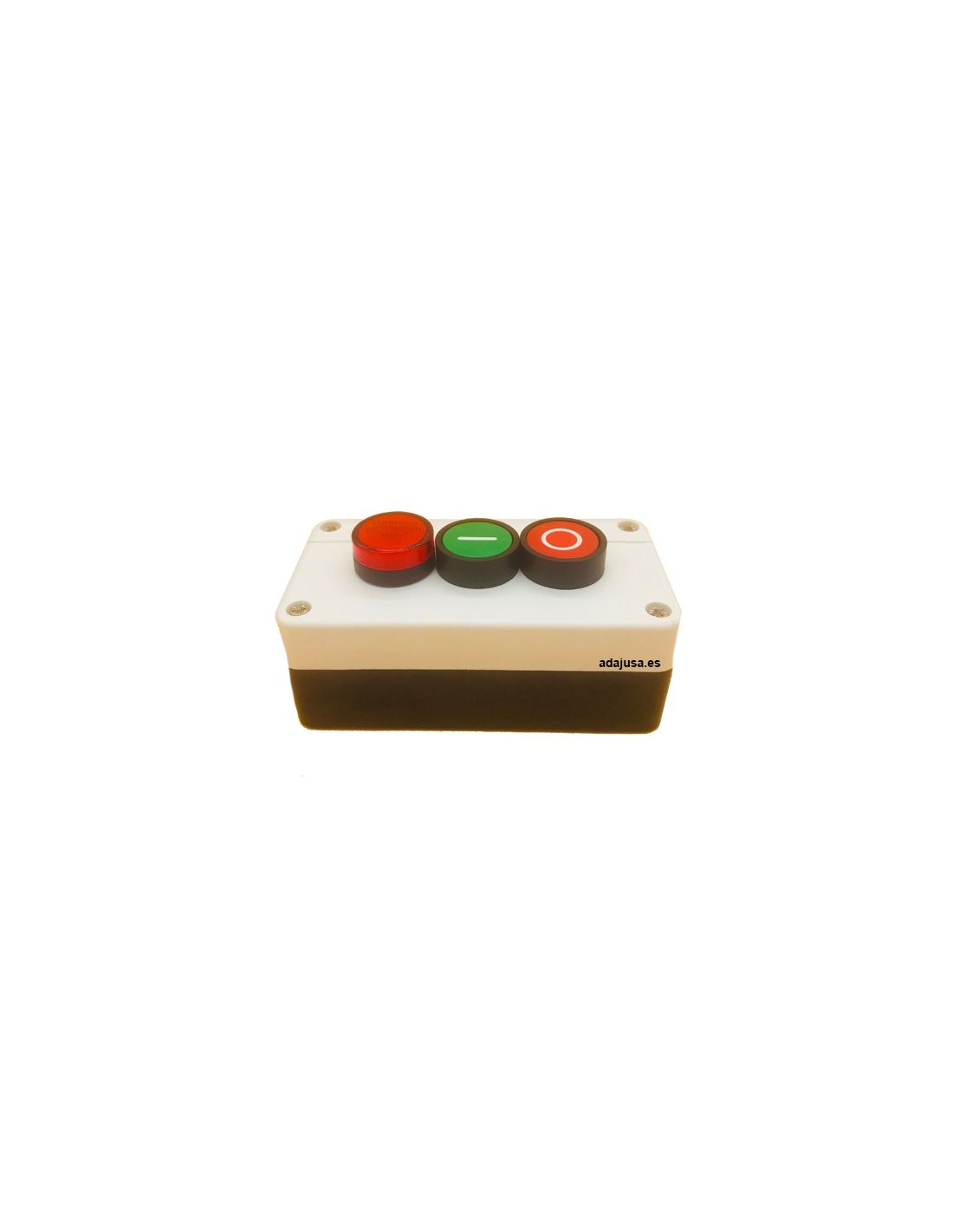

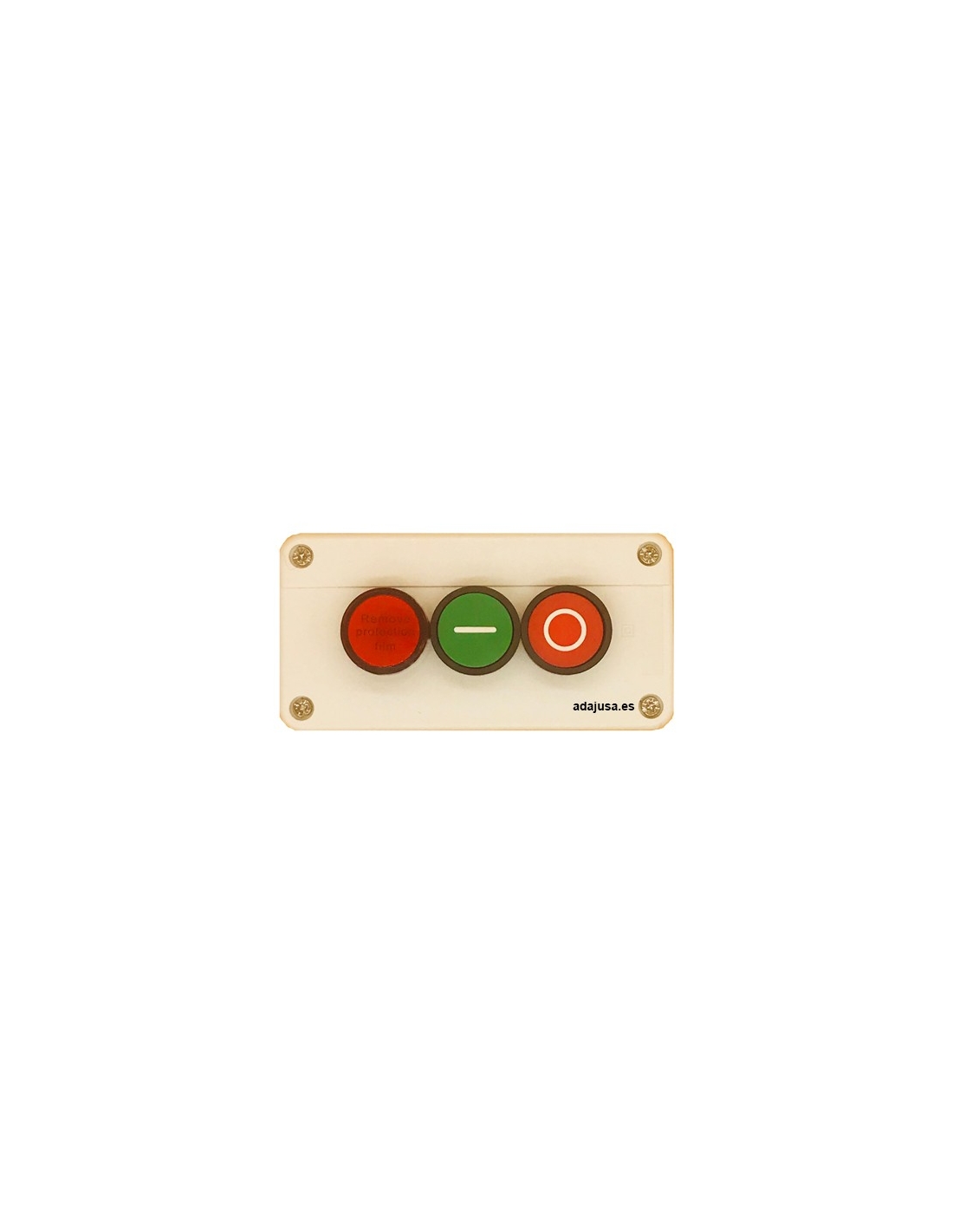

Box with start, stop and red pilot complete. Case and push button made of black-white plastic.

Delivery includes:

  • Part number: XAL-B373
  • Complete green push button.
  • Complete push button red color.
  • Pilot red color (without bulb).
  • Open contact.
  • Closed contact.
  • Support for bulb with Ba9s socket.
  • Plastic box for 3 elements.


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns

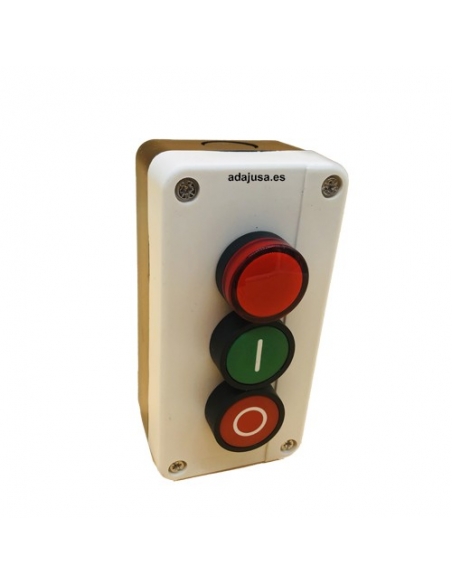

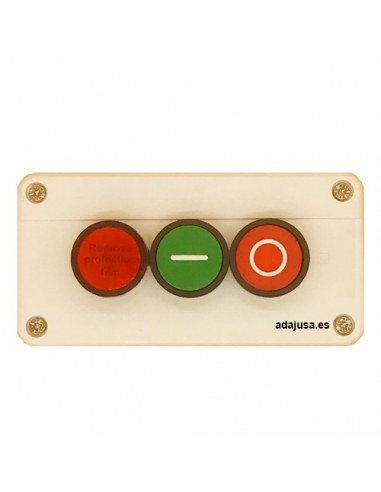

Button box 2 push buttons with luminous indication in red color, for "I-O" function, green run button, with "I" inscription, contact open (NO) and red stop button, with "O" inscription, colored pilot light for lamps with Ba9s socket. Box in black and white color.

Delivery includes:


  • Green push button.
  • Push button red color.
  • Pilot red color (without lamp).
  • Open contact.
  • Closed contact.
  • Lamp holder type Ba9s.
  • Plastic box for 3 elements.

The pushbutton panel is supplied assembled. The lamp is not included in the scope of supply, it must be ordered separately.

The box allows for each pushbutton, the assembly of another additional contact, open or closed. The maximum number of contacts per element is 2.

The dimensions of the box are: 68x164x51mm.

Features:

  • Manufacturer/Supplier: Denor
  • Part number: XAL-B373
  • Push button type: Start button (I), Stop button (O) and red pilot light.
  • Push button color: 1 green and 1 red.
  • Pilot light color: red.
  • Black-white plastic case.
  • Height of the box: 51mm.
  • Contacts: 1 NO and 1 NC.
  • Lamp holder: Ba9s socket.
  • Maximum lamp voltage: 230V.
  • Maximum lamp power: 2W.
  • Diameter of the elements: 22mm.
  • Maximum intensity Ith: 10 A.
  • Intensity of work to 220 Vac: 4,5 A.
  • Maximum working voltage: 415 V.
  • Resistance of contact: 50 mΩ.
  • Degree of protection: IP40.

Dimensions 3-element pushbutton panel

Dimensiones botonera 3 elementos

Equipment for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

16 other products in the same category:

Box with complete Ø40...
  • Pack
Button boxes with controls already installed

Box with complete Ø40 mushroom stop button - NYG Series

TRACON
NYGBC42PT
€6.74 (€5.57 tax excl.)
Box with non- interlocking mushroom stop button, diameter 40mm. Red metal pushbutton with a closed contact (1NC) and a box made of high-resistance gray plastic with a dark gray front. IP44 protection grade.Reference: NYGBC42PT Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Box with gear push button...
  • Pack
Button boxes with controls already installed

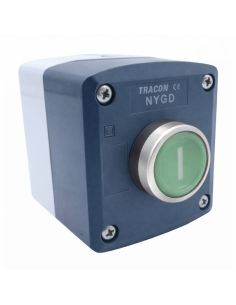

Box with gear push button with complete "I" inscription - NYG Series
